9829-0 Briggs and Stratton Portable Generator G-FORCE, 2,400 Watt

Model: 9829-0

Save
 Part Not Listed?Part Not Listed?
product name

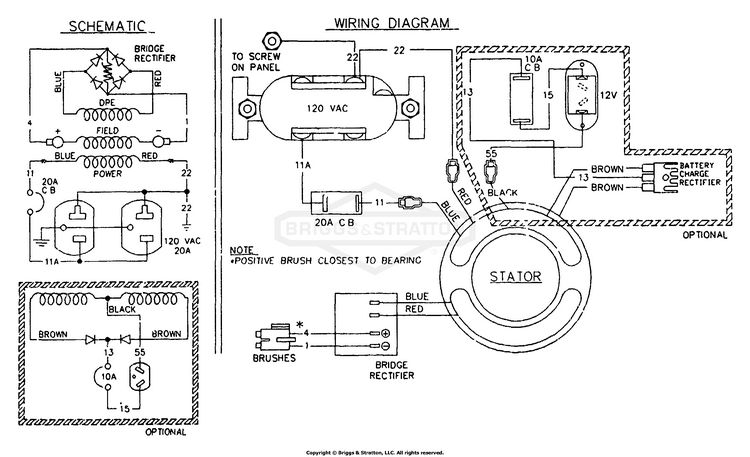

Electrical Data

...

No Parts Available for this Schematic

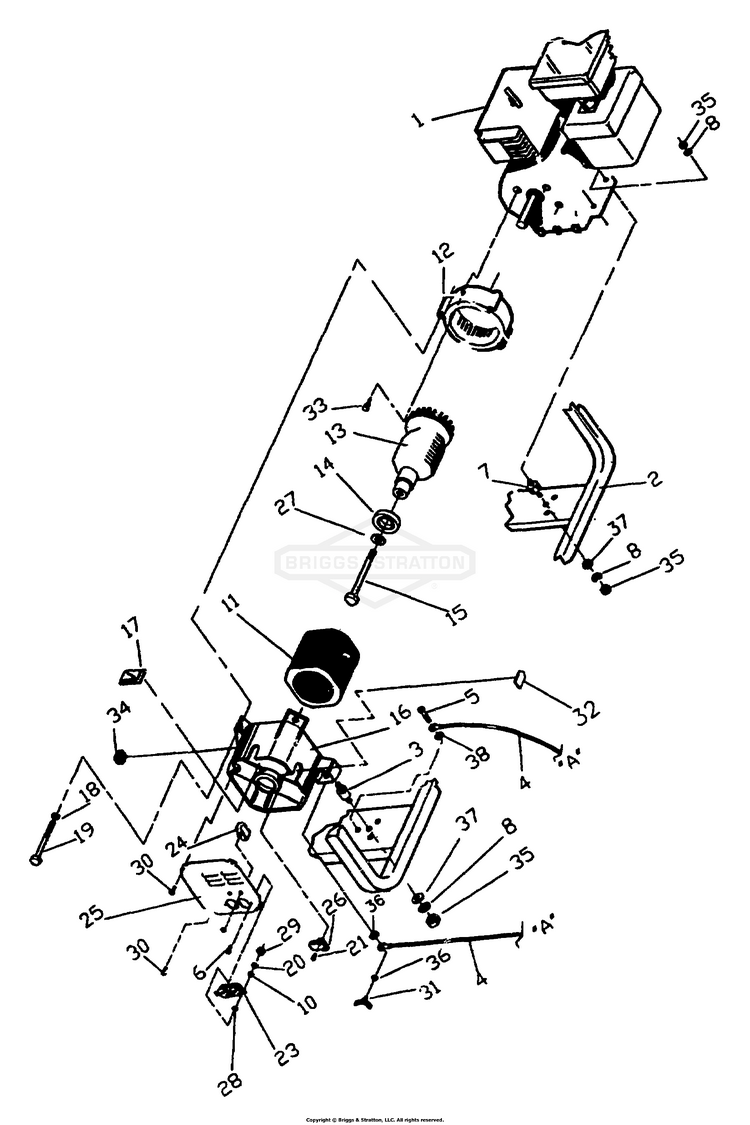

Generator

...
...
1
Engine-Briggs & Stratton (5 HP with LOS) BS-84789
...
2
Cradle Assembly BS-91018
...
3
MOUNT-VIBRATION BS-194153GS
...
4
WIRE, Ground BS-195373GS
...
5
SCREW BS-313085GS
...
6
M4-0.7 x 10mm Pan Head Screw BS-75475
...
7
MOUNT,Vibration BS-85651GS
...
8
WASHER, Lock BS-22129GS
...
10
WASHER BS-38150GS
...
11
Stator Assembly BS-77258
...
12
HSNG, ENG, FML BS-66365FGS
...
13
Rotor Assembly BS-74713
...
14
BEARING BS-65791GS
...
15
5/16" x 24 x 6-1/4" Rotor Bolt BS-24420
...
16
Rear Bearing Carrier BS-66825B
...
17
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
18
CAP BS-5022097SM
...
19
M6-1.0 x 80mm Stator Bolt BS-66449C
...
20
No. 8 Lock Washer BS-22264
...
21
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
23
OUTLET, 20A,120V BS-68759GS
...
24
BRKR, CRCT, 20A, 2P BS-77247GS
...
25
(C) WELD SEAT SUPPOR BS-7072092YP
...
26
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
27
Flat Washer (special) BS-67451
...
28
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
29
NUT, M4-0.7 Hex BS-51715GS
...
30
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
31
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
32
GROMMET, Plastic RBC BS-84242GS
...
33
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
34
GROMMET, RUBBER BS-67022GS
...
35
SKID PLATE BS-5045771B
...
38
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
...
...
