9799-0 Briggs and Stratton Portable Generator SVP5000E, 5,000 Watt

Model: 9799-0

Save
 Part Not Listed?Part Not Listed?
product name

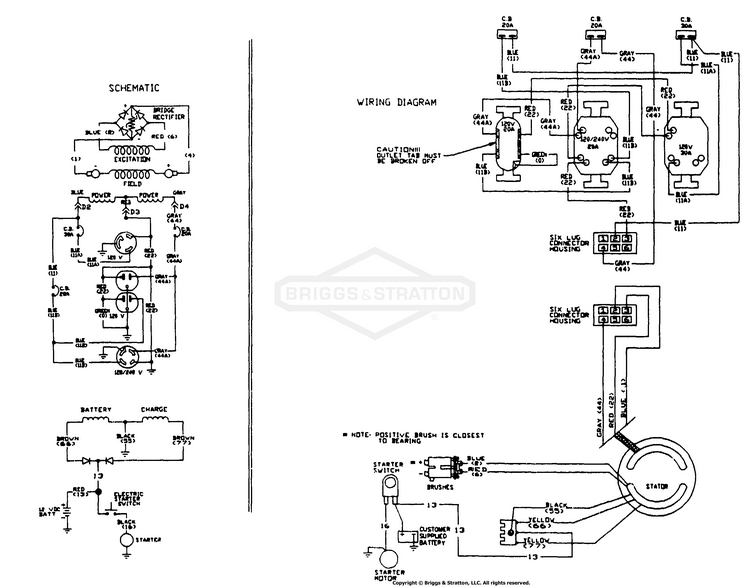

Electrical Data No. 93442

...

No Parts Available for this Schematic

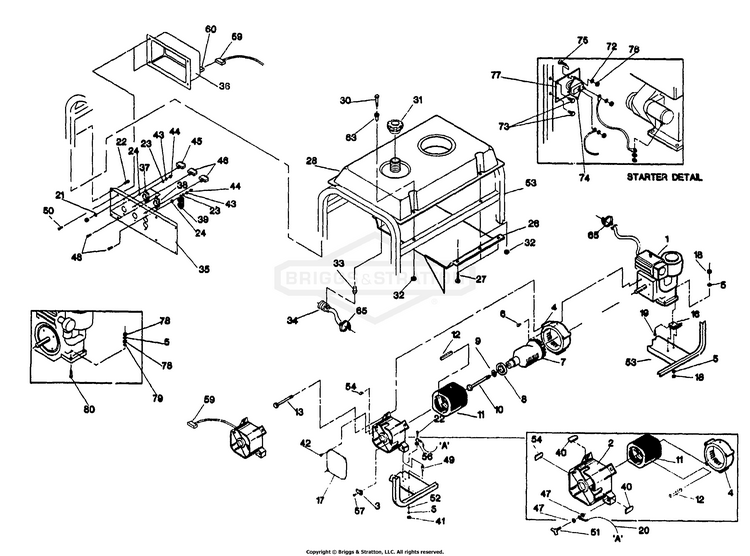

SVP-5000E AC Generator 10 HP B&S Electrical Start No. 92422

...
...
1
10 h.p. Briggs & Stratton Electric Start Engine BS-91011
...
2
CARRIER, Rear Bearing BS-SRV66825DGS
...
3
Brush & Bridge Rectifier Assm. BS-91825
...
4
HOUSING, Engine Adapter BS-66365GGS
...
5
WASHER, Lock BS-22129GS
...
6
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
7
NUT, CNTR LCK, 1/2-13 BS-703894
...
8
BEARING BS-65791GS
...
9
Special Washer BS-67451
...
10
FLOOR PLATE BS-5047480B
...
11
Stator Assembly BS-93437
...
12
PIN, ROLL 4MM x 10 BS-81917GS
...
13
BOLT, Stator BS-86308CGS
...
16
MOUNT, Vibration 45°. BS-70642GS
...
17
Bearing Carrier Cover BS-67025
...
18
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
19
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
20
WIRE, Ground BS-195373GS
...
21
WASHER, 7/16" Int Lock BS-82881GS
...
22
SCREW BS-313085GS
...
23
WASHER BS-38150GS
...
24
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
26
Heat Shield BS-78951A
...
27
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
28
5 gal. Plastic Tank BS-77374
...
30
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
31
Fuel Tank Cap BS-84582
...
32
NUT, FLANGE LOCK - M6 BS-77395GS
...
33
Kit, Valve BS-192980GS
...
34
PULLEY CATCHER HZT/ BS-7078298YP
...
35
Control Panel BS-81897
...
36
PANEL, Control, Back, Plastic BS-81919GS
...
37
OUTLET-120V TL30A BS-705932
...
38
OUTLET, 120/240V Locking, 20A BS-68867GS
...
39
OUTLET, 20A,120V BS-68759GS
...
40
GROMMET, Plastic RBC BS-84242GS
...
41
NUT, 5/16-18 HEX BS-25244GS
...
42
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
43
No. 8 Lock Washer BS-22264
...
44
NUT, M4-0.7 Hex BS-51715GS
...
45
BREAKER-CIRCUIT 30A BS-706178
...
46
BREAKER-CIRCUIT 20A BS-209872GS
...
48
M4-0.7 x 10mm Screw BS-75475
...
49
MOUNT, VIBRATION BS-82857GS
...
50
SCREW, Self Tapping, STC 3 x 18 BS-82308GS
...
51
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
53
PUSHNUT, CAP, 1/4 BS-704005
...
54
GROMMET, RUBBER BS-67022GS
...
56
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
57
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
59
FASTEN, On Tab Housing 6P BS-22695GS
...
60
HOUSING, Receptacle BS-22694GS
...
63
GROMMET, TANK BS-83465GS
...
65
1/4" Hose Clamp BS-48031C
...
66
Low Oil Shutdown Switch BS-88977
...
67
LOS Gasket BS-91841
...
68
TAPTITE, #10-32 X 5/8 BS-32713GS
...
69
WIRE-A, 18AWG, BLK, 445MM BS-91842AGS
...
70
NUT, #8-32 BS-22471GS
...
71
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
72
CAP BS-5022097SM
...
73
Self-drilling Screw BS-75494
...
74
Starter Switch BS-77282
...
75
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
76
1/4"-20 Hex Nut BS-22127
...
77
BRACKET, STARTER SWITCH BS-78289GS
...
78
SKID PLATE BS-5045771B
...
79
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
80
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
...
...
