9797-1 Briggs and Stratton Portable Generator 5,500 EXL

Model: 9797-1

Save
 Part Not Listed?Part Not Listed?
product name

Control Panel

...
...
1
PNL, CNTRL, BLK BS-B92070GS
...
2
WASHER, #10 M5 Flat BS-23897GS
...
3
WASHER, M5 Lock BS-49226GS
...
4
M5-0.8 x 12mm Screw BS-91526
...
5
Idle Control Switch BS-82530
...
6
WASHER, 7/16" Int Lock BS-82881GS
...
7
SCREW, M3-0.5 x 10mm BS-43181GS
...
8
WASHER, M3 Lock BS-43182GS
...
9
OUTLET, 12Volt DC (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.) BS-66822GS
...
10
BREAKER-CIRCUIT 30A BS-706178
...
11
BREAKER-CIRCUIT 20A BS-209872GS
...
12
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
13
OUTLET-120V TL30A BS-705932
...
14
20A-120/240V Locking Type Outlet BS-43437
...
15
OUTLET, 20A,120V BS-68759GS
...
16
Thumb Control Lever BS-5043180B
...
17
#8 (M4) Lock Washer BS-22264
...
18
NUT, M4-0.7 Hex BS-51715GS
...
19
#6-32 x 3/8" Screw BS-65426
...
20
BOARD, System Control BS-83970GS
...
21
3/4" Hex Standoff BS-65425
...
22
CIRCUIT BREAKER, 10A (Automatic), 12V BS-87962GS
...
23
ASSEMBLY, Wire Harness BS-84335GS
...
24
GROMMET, Rubber Connector BS-84134GS
...
25
Control Panel Box BS-92069
...
26
TRANSFORMER, Idle Control BS-84028GS
...
27
M4-0.7 x 10mm Screw BS-75475
...
28
Gov. Adj. W/Idle Bracket BS-73101
...
29
M8-1.25 Hex Jam Nut BS-66311

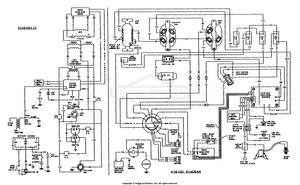

Electrical Data

...

No Parts Available for this Schematic

Engine Trim Parts

...
...
1
SPACER, Park Brake BS-7073100SM
...
2
M5 Governor Adjust Bolt BS-83502
...
3
M5-0.8 Metal Lock Nut BS-83503
...
4
Blower Housing Assembly BS-92437
...
5
Recoil Assembly BS-95092
...
6
Recoil Cup BS-81641
...
7
Flywheel Hex Nut BS-67890
...
8
20 x 2.2 Bevel Washer BS-67198N
...
9
Flywheel Assembly BS-77147A
...
10
Ignition Coil Assembly BS-84542
...
11
Air Cleaner Cover BS-73104A
...
12
Air Cleaner Base W/Nuts BS-73108A
...
13
ELEMENT,Air Cleaner BS-73111GS
...
14
Spit Back Plate BS-91204
...
16
Air Box Bracket BS-90827
...
17
NUT BS-690279
...
18
NUT, Hex Nyloc, 10mm-1.50 BS-7091187SM
...
GN320HS Carburetor BS-93302
...
19
Carburetor/Manifold Gasket BS-89228
...
20
Air Cleaner Cover Bolt BS-78609
...
21
HHCS 7/16F X2-1/4 BS-7091028YP
...
22
Carburetor Mounting Bolt BS-81647
...
23
BRKT ATTACHMENT BS-7072745YP
...
24
Choke Knob BS-83504
...
25
Blower Housing Backplate BS-73116A
...
Blower Housing Backplate With Knock Out Removed BS-73116C
...
26
WLN, #10C BS-7091039YP
...
27
Woodruff Key 4 x 190 BS-82774
...
28
Governor Control Rod BS-72735
...
29
Governor Anti-Lash Spring BS-72789
...
30
SWITCH, Run - Stop BS-78653GS
...
31
Bottom Wrapper BS-88434
...
32
Top Wrapper BS-88433
...
33
FILTER, Oil (Optional) BS-70185GS
...
34
PLUG, SPARK (Champion 12YC) BS-84007216
...
35
Governor Adjust With Idle Control Bracket BS-73101
...
36
Governor Lever Assembly BS-72734
...
37
SCREW (MC Series) BS-690369
...
38
Low Oil Indicator Lamp BS-85272
...
39
4 PSI Low Oil Pressure Switch BS-77667
...
40
SCREW BS-40945GS
...
41
M6-1.0 x 10mm Taptite (Qty. 8 w/LOS MOD.) BS-45756
...
42
NUT, M6 BS-49813GS
...
43
M8-1.25 x 30mm Socket Head Capscrew BS-49821
...
44
#8 x 0.37 Long Plastite BS-59635
...
45
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
47
Air Filter Pre-Cleaner BS-81646
...
48
M6-1.0 x 10mm Hex Head/LW Capscrew BS-81668
...
49
Screw, M8 1.25 x 15, Taptite BS-83512GS
...
50
Oil Filter Adaptor Gasket BS-86999
...
51
INSERT HX THRD 5/16 BS-7092079YP
...
52
CAP (Qty. 6 w/Optional Electric Start) BS-5022097SM
...
53
3-Pin Male Housing BS-84329
...
55
Ignition Wire Assembly BS-92981
...
57
WASHER BS-49811GS
...
58
LOS Engine Decal BS-93104
...
59
Long Block GN320HS Taper Shaft Engine BS-90780A
...
WLN 1/4C GN320HS Straight Shaft Engine BS-7090997YP
...
Long Block GN360HS Taper Shaft Engine BS-90782A
...
Long Block GN360HS Straight Shaft Engine BS-91001A
...
60
LOS Module BS-87221B
...
61
HANDLE UPPER BS-7072709YP
...
62
Sleeving BS-93611
...
63
Starter Mount Bracket BS-86260
...
64
BRCKT, SPPRT, STARTER BS-93922GS
...
65
1/4-20 Thread Hex Nut BS-22127
...
66
WASHER, Lock BS-22129GS
...
67
M8-1.25 x 20 Socket Head Capscrew BS-40976
...
68
"S" Engine Starter Motor BS-93487
...
69
Flywheel and Ring Gear Assembly BS-91222B

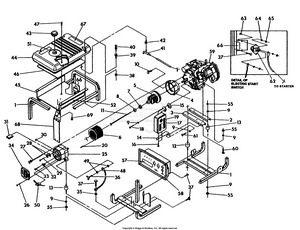

Generator

...
...
1
Cradle BS-92432
...
2
Engine Support BS-92531
...
3
SUPPORT, Eng/Muffler BS-N92731GS
...
4
HOUSING, ENGINE ADAPTER BS-92247GS
...
5
ASSY, Rotor BS-92678GGS
...
6
ASSY, STATOR, 5500VR120, 10A-BC BS-94980GGS
...
7
BEARING BS-65791GS
...
8
M8 Flat Washer BS-67451
...
9
WASHER, Lock BS-22129GS
...
10
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
11
SCREW BS-28092GS
...
12
MOUNTS,Vibration BS-92609GS
...
13
MOUNT, VIBRATION BS-82857GS
...
14
BRACKET, Muffler BS-92532GS
...
15
GASKET, Exhaust BS-90239GS
...
16
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
17
MUFFLER BS-A7433GS
...
18
M8-1.25 x 20 Screw BS-40976
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
PIN, ROLL 4MM x 10 BS-81917GS
...
25
CARRIER, Rear Bearing BS-SRV66825DGS
...
26
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
27
BOLT, M6-1 x 145mm Stator BS-86308AGS
...
28
RECTIFIER, BATTERY CHARGE BS-65795GS
...
29
TAPTITE, M5-0.8 x 30 LG. BS-66849CGS
...
30
GROMMET, RUBBER BS-67022GS
...
31
ASSEMBLY, POWER REGULATOR BS-84132GS
...
32
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
33
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
34
Bearing Carrier Cover BS-67025
...
35
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
36
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
37
SCREW BS-313085GS
...
38
NUT, FLANGE LOCK - M6 BS-77395GS
...
39
GROMMET, TANK BS-83465GS
...
40
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
41
Kit, Valve BS-192980GS
...
42
Kit, Valve BS-192980GS
...
43
CAP, Fuel Tank BS-846987
...
44
ASSY,Tank, Fuel BS-193500GS
...
45
Heat Shield BS-92039
...
46
INSULATION, # 2-1/4" THICK BS-92665GS
...
47
CLIP, INSULATION BS-85000GS
...
48
WIRE, Ground BS-195373GS
...
50
MOUNT, CABLE TIE BS-57593GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, HTSHLD, 5500EXL BS-96057GS
...
55
NUT, 5/16-18 HEX BS-25244GS
...
57
DECAL, PNL, CNTRL, 5500EXL BS-96058GS
...
58
ASSY, Control Panel BS-92630GS
...
59
11 HP Engine BS-ENG96452
...
60
DECAL HYDROWALK (DD61) BS-5022531
...
61
MODULE BS-84009650
...
62
Starter Switch BS-77282
...
63
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
64
CAP BS-5022097SM
...
65
1/4-20" Hex Nut BS-22127
...
66
BRACKET, STARTER SWITCH BS-78289GS
...
67
DECAL, START INSTRUCTIONS BS-93826GS
...
68
Heat Shield BS-96068
...
69
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
...
...
