9778-3 Briggs and Stratton Portable Generator 5,500 XL

Model: 9778-3

Save
 Part Not Listed?Part Not Listed?
product name

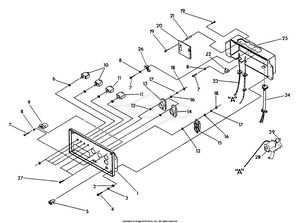

Control Panel Drawing No. 92672

...
...
1
PNL, CNTRL, BLK BS-B92070GS
...
2
WASHER, #10 M5 Flat BS-23897GS
...
3
WASHER, M5 Lock BS-49226GS
...
4
M5-0.8 x 12mm Screw BS-91526
...
5
SWITCH, Idle Control BS-82538GS
...
6
WASHER, 7/16" Int Lock BS-82881GS
...
7
SCREW, M3-0.5 x 10mm BS-43181GS
...
8
WASHER, M3 Lock BS-43182GS
...
9
OUTLET, 12Volt DC (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.) BS-66822GS
...
10
BREAKER-CIRCUIT 30A BS-706178
...
11
BREAKER-CIRCUIT 20A BS-209872GS
...
12
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
13
OUTLET-120V TL30A BS-705932
...
14
120/240V, 30A Locking Type Outlet BS-43437
...
15
OUTLET, 20A,120V BS-68759GS
...
16
Thumb Control Lever BS-5043180B
...
17
M4 Lockwasher BS-22264
...
18
NUT, M4-0.7 Hex BS-51715GS
...
19
#6-32 x 3/8" Screw BS-64526
...
20
BOARD, System Control BS-83970GS
...
21
3/4" Hex Stand-Off BS-64525
...
22
CIRCUIT BREAKER, 10A (Automatic), 12V BS-87962GS
...
23
ASSEMBLY, Wire Harness BS-84335GS
...
24
GROMMET, Rubber Connector BS-84134GS
...
25
Control Panel Box BS-92069
...
26
TRANSFORMER, Idle Control BS-84028GS
...
27
M4-0.7 x 10mm Screw BS-75475
...
28
Gov. Adj. w/Idle Bracket BS-73101
...
29
M8-1.25 Hex Jam Nut BS-66311

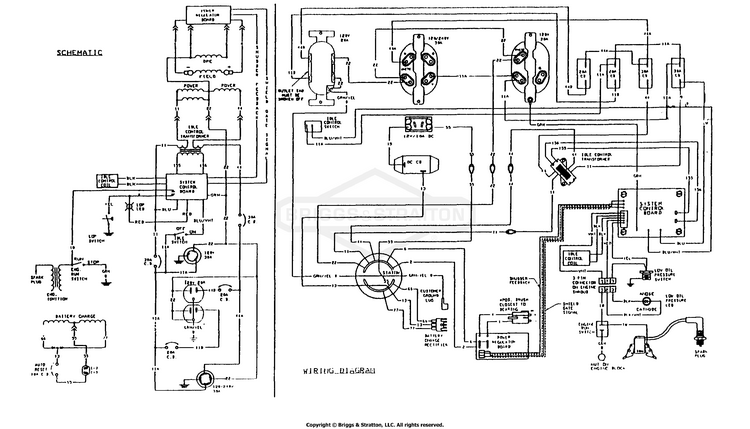

Electrical Data Drawing No. 92670

...

No Parts Available for this Schematic

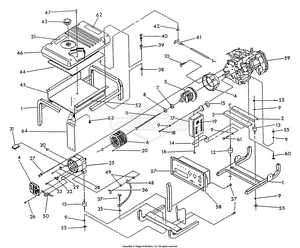

Generator Drawing No. 20727

...
...
1
Cradle BS-92432
...
2
Engine Support BS-92531
...
3
SUPPORT, Eng/Muffler BS-N92731GS
...
4
HOUSING, ENGINE ADAPTER BS-92247GS
...
5
ASSY, Rotor BS-92678GGS
...
6
ASSY, STATOR, 5500VR120, 10A-BC BS-92680GGS
...
7
BEARING BS-65791GS
...
8
M8 Flat Washer BS-67451
...
9
WASHER, Lock BS-22129GS
...
10
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
11
SCREW BS-28092GS
...
12
MOUNTS,Vibration BS-92609GS
...
13
MOUNT, VIBRATION BS-82857GS
...
14
BRACKET, Muffler BS-92532GS
...
15
GASKET, Exhaust BS-90239GS
...
16
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
17
MUFFLER BS-A7433GS
...
18
M8-1.25 x 20 Capscrew BS-40976
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
PIN, ROLL 4MM x 10 BS-81917GS
...
25
CARRIER, Rear Bearing BS-SRV66825DGS
...
26
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
27
BOLT, M6-1 x 145mm Stator BS-86308AGS
...
28
RECTIFIER, BATTERY CHARGE BS-65795GS
...
29
SCREW BS-66849AGS
...
30
GROMMET, RUBBER BS-67022GS
...
31
ASSEMBLY, POWER REGULATOR BS-84132GS
...
32
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
33
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
34
Bearing Carrier Cover BS-67025
...
35
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
36
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
37
SCREW BS-313085GS
...
38
NUT, FLANGE LOCK - M6 BS-77395GS
...
39
GROMMET, TANK BS-83465GS
...
40
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
41
Kit, Valve BS-192980GS
...
42
Kit, Valve BS-192980GS
...
43
CAP, Fuel Tank BS-846987
...
44
ASSY,Tank, Fuel BS-193500GS
...
45
Heat Shield BS-92039
...
46
INSULATION, # 2-1/4" THICK BS-92665GS
...
47
CLIP, INSULATION BS-85000GS
...
48
WIRE, Ground BS-195373GS
...
50
MOUNT, CABLE TIE BS-57593GS
...
51
DECAL, Danger BS-194799GS
...
52
Heat Shield Decal BS-92611
...
55
NUT, 5/16-18 HEX BS-25244GS
...
57
DECAL, PNL, CNTRL, 5500XL BS-92639GS
...
58
ASSY, Control Panel BS-92630GS
...
59
GN360 Engine BS-ENG96446
...
60
DECAL HYDROWALK (DD61) BS-5022531
...
61
MODULE BS-84009650
...
62
DECAL, START INSTRUCTIONS BS-93826GS
...
63
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
64
Muffler Heat Shield BS-96068
...
...
...
