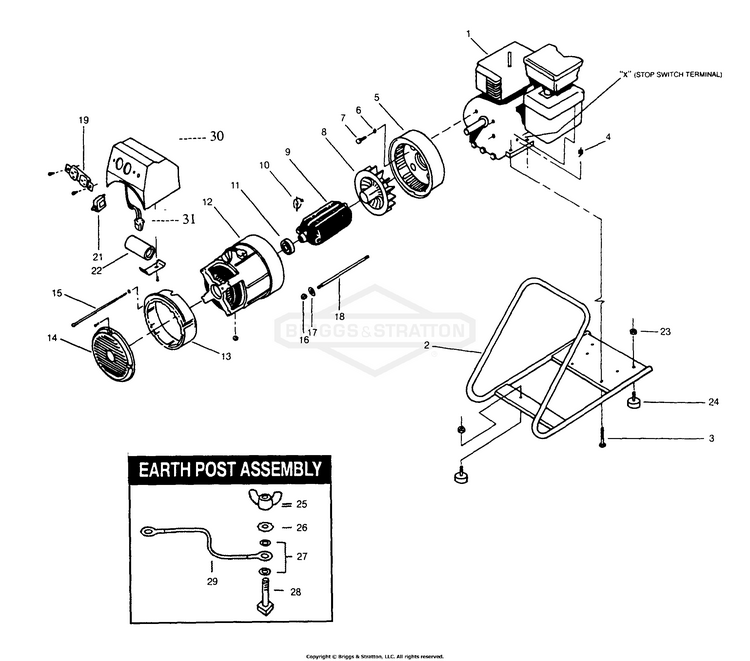

Generator ET1500

...
...
1
Engine Briggs & Stratton 3.5HP BS-~NSP
...
2
SCREW, 5/16-18.625 BS-703949
...
3
M8-1.25 x 40 mm Bolt BS-57821
...
4
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
5
Adaptor Flange BS-A1930A
...
6
WASHER, Lock BS-22129GS
...
7
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
8
FAN, RTR BS-20419AGS
...
9
ASSY, RTR, UK BS-B2998BGS
...
10
ASSY, Diode/Varistor BS-A1816GS
...
11
BRNG, RTR BS-A1949AGS
...
12
ASSY, STATOR, UK BS-B2926BGS
...
13
Cowling BS-A1931A
...
14
Grill BS-A1932
...
15
BOLT, STATOR BS-B3964AGS
...
16
NUT, NYLOCK, M8-1.25 BS-20316GS
...
18
BOLT, RTR, UK BS-A1928AGS
...
19
OUTLET, 20A,120V BS-68759GS
...
21
BRKR, CRCT, 12A BS-75207CGS
...
22
CAPACITOR, 10UF BS-94896BGS
...
23
NUT, 5/16-18, SRV BS-27029GS
...
24
MNT, VIBR, PRS WSHR BS-87812GS
...
25
SCREW, Wing BS-87680GS
...
26
NUT, M6 BS-49813GS
...
27
WASHER BS-22447GS
...
28
SCREW BS-690664
...
29
Earth lead 125mm BS-97876C
...
30
HSNG, ALT, UK BS-185910GS
...
31
HRNSS, WIRE, ALT BS-185911GS
