9617-1 Briggs and Stratton Pressure Washer 6,600 CP Pressure Washer

Model: 9617-1

Save
 Part Not Listed?Part Not Listed?
product name

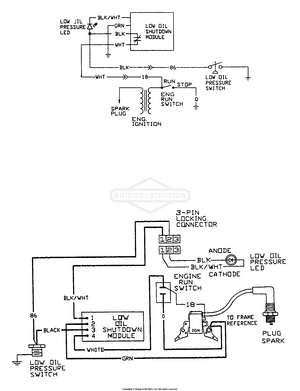

Electrical Data No. 87734

...

No Parts Available for this Schematic

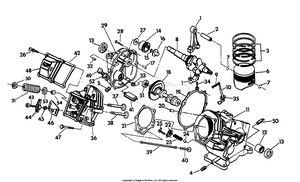

GN-190 Engine No. 89365

...
...
1
Connecting Rod with Cap and Bolt BS-78621
...
2
Piston Pin BS-76389
...
3
Piston Ring Set BS-78660
...
4
1/4" Magnetic Pipe Plug BS-81694
...
5
1/8" NPTF Pipe Plug BS-72683
...
6
Piston BS-76386
...
7
(C) BELT SHIELD WELD BS-7047947YP
...
8
Crankshaft Assembly with Gear BS-81678
...
9
Governor Arm "R" Pin BS-78658
...
10
Governor Arm BS-76354
...
11
Crankcase Sub-assembly BS-88276
...
12
Sleeve Bearing BS-76349
...
13
Crankshaft Seal BS-81695
...
14
Governor Gear Assembly BS-76359
...
15
Governor Retainer ("C" ring) BS-78645
...
16
Governor Spool BS-76365
...
17
Sleeve Dowel (10" dia.) BS-78699A
...
18
Camshaft Assembly BS-83335
...
19
Crankcase Gasket BS-76350
...
20
Sleeve Dowel (12" dia.) BS-78699B
...
21
Cylinder Head Gasket BS-77165B
...
22
Oil Pressure Sprg Retainer BS-78691
...
23
Oil Pressure Spring BS-76367
...
24
Pressure Relief Ball BS-76362
...
25
M5-0.8 x 8mm Screw BS-78692
...
26
M6-1.0 x 12mm Screw BS-78606
...
27
Thrust washer BS-76361
...
28
Flanged Hex Capscrew BS-78661
...
29
Sub-assembly Gear Cover BS-88277B
...
30
Valve Spring Retainer BS-77157
...
31
Valve Spring BS-76398
...
32
10mm I.D. X 20mm Dowel Pin BS-78633
...
33
Inner Gerotor BS-83152
...
34
Connecting Rod BS-76381
...
35
Governor Arm Washer BS-78659
...
36
Cylinder Head with Valve Seats and Guides BS-78623
...
37
Exhaust Valve BS-73121
...
38
CAP DUST BS-7073120YP
...
39
Push Rod BS-76392
...
40
Tappet BS-83235
...
41
Oil Pickup Assembly BS-80336
...
42
Rocker Cover Gasket BS-77167
...
43
Pivot Ball Stud BS-77161
...
44
Rocker Arm BS-77160
...
45
Jam Nut (rocker arm) BS-76307
...
46
Push Rod Guide Plate BS-77162
...
47
M8 x 50mm Head Bolt BS-77168
...
48
Rocker Cover Brthr. Assm. BS-81690
...
49
Oil Fill Plug BS-76329
...
50
BELT,TRACTION DRIVE BS-7072657YP
...
51
Outer Gerotor - 6/5 BS-83153
...
52
O-ring - 17.8mm I.D. x 2.4mm BS-86254
...
53
Valve Spring Washer BS-84186
...
54
Valve Stem Seal BS-88155

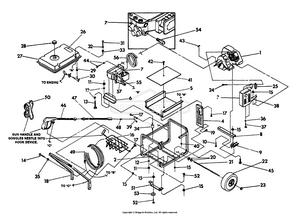

Pressure Washer & Cradle No. 90753

...
...
1
BOLT,5/16-18X1.125 BS-704002
...
2
Cradle - 6600CP BS-88256
...
3
MUFFLER BS-83071GS
...
4
HTSHLD, MFFLR, P.W BS-87843GS
...
5
HTSHLD, PW BS-87840GS
...
6
Pump Mounting Bracket BS-87839
...
7
XTV 2200 Series Pump BS-87628
...
8
SUPPORT, Engine BS-B84021GS
...
9
MOUNT, Vibration BS-84508GS
...
10
SCREW BS-70644GS
...
11
SKID PLATE BS-5045771B
...
12
WASHER, Lock BS-22129GS
...
13
HHCS, M8 1.25 x 16 BS-42907GS
...
14
SCREW BS-39287GS
...
15
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
16
Wire Basket BS-87836
...
17
SCREW BS-313085GS
...
18
HNDL, PW BS-87835GS
...
19
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
20
WASHER, Flat BS-49808GS
...
21
Axle Assembly BS-89337
...
22
WHEEL BS-197061GS
...
23
PUSHNUT BS-194062GS
...
24
M8-1.25 x 20mm Socket Head Capscrew BS-40976
...
25
GSKT, EXHAUST BS-80314GS
...
26
Start Instructions Decal BS-87838
...
27
Fuel Tank BS-83311
...
28
Fuel Cap BS-84582
...
29
Kit, Valve BS-192980GS
...
30
Kit, Valve BS-192980GS
...
31
M6-1.0 x 60mm Hex Head Capscrew (black) BS-78831A
...
32
WSHR, SPCL, BLK BS-78830GS
...
33
GROMMET, TANK BS-83465GS
...
34
MNT, VIBR, GEN 1.25OD BS-66443BGS
...
35
Washer, .34 x 1 x 10 BS-50190GS
...
36
CAP BS-5022097SM
...
37
SCREW, M6 x 12 BS-43116GS
...
38
BRACKET, Muffler BS-83208GS
...
39
WIREFORM, HLDR, WAND BS-87985GS
...
40
NUT, FLANGE LOCK - M6 BS-77395GS
...
41
INSULATION BS-84687GS
...
42
CLIP, INSULATION BS-85000GS
...
43
KEY, 3/16X1/4 HARDEND BS-89241GS
...
44
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
45
TPHMS, M8 - 1.25 x 35 BS-195398GS
...
46
12" Wand and Handle BS-91628
...
47
18" Wand Extension (blue) BS-91031
...
48
Nozzle Fitting BS-88054
...
49
3/8" I.D. Hose Assembly BS-91630
...
50
GOGGLES BS-87815GS
...
51
FOOT, CRDL, VIB MNT BS-87842GS
...
52
HHCS, M8 x 20 BS-39253GS
...
53
MOUNT, Rubber Donut BS-87841GS
...
54
Thermal Relief Valve BS-89215
...
55
Brass Garden Hose Connector BS-89647
...
56
ASSY, FILTER/TUBE BS-89800GS
...
57
NECK, ALUM GARDN HOSE BS-89646GS
...
...
...
