product name

9606-0 Briggs and Stratton Pressure Washer 2,375 CP

Model: 9606-0

Save
 Part Not Listed?Part Not Listed?
product name

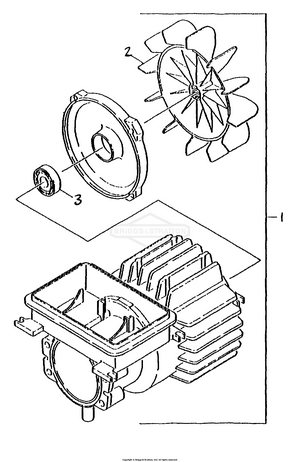

Electric Motor

...
...
1
MOTOR, EPW, KARCH BS-94339GS
...
2
MOTOR FAN BS-94340
...
3
BRNG, BALL, KARCH EL BS-94341GS

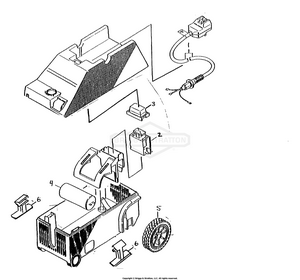

Generac 2375 - Exploded View

...
...
1
CABLE WITH GFCI PLUG BS-94325
...
2
SWITCH BS-94322
...
3
PROTECTIVE SWITCH BS-94323
...
4
CAPACITOR BS-94324
...
5
WHEEL BS-94327
...
6
BRACKET BS-94328

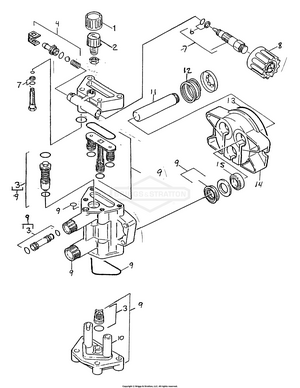

Pump

...
...
1
KNOB BS-94329
...
2
PRESSURE GAUGE BS-94330
...
3
SPARE PARTS KIT BS-94331
...
4
SPARE PARTS KIT BS-94332
...
5
SPARE PARTS KIT INCLUDES: 3 AND 4 BS-94333
...
6
O-RING BS-94334
...
7
SPINDLE BS-94335
...
8
KNOB BS-94336
...
9
SCREW BS-690331
...
10
HOUSING BS-94338
...
11
PISTON BS-94343
...
12
SPRING BS-94344
...
13
O-RING BS-94345
...
14
PISTON GUIDE BS-94346
...
15
GROOVED RING BS-94347
...
...
...
