product name

9594-0 Briggs and Stratton Air Compressor 404AP Air Compressor

Model: 9594-0

Save
 Part Not Listed?Part Not Listed?
product name

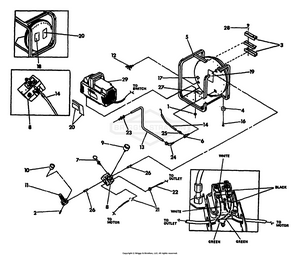

Air Compressor - No. 89509

...
...
1
NUT-M6 FLANGE BS-52857GS
...
2
1/8" Socket Pipe Plug BS-61012
...
3
Handle Cover BS-66450
...
4
MOUNT, Rubber Donut BS-87841GS
...
5
Air Compressor Lube Cradle BS-88086
...
6
Valve Check Air Compressor BS-88088
...
7
Valve Relief, 125 psi BS-88089
...
8
Pressure Switch, 125V, 16A BS-88090
...
9
Pressure Gauge (1/4" x 2") BS-88091
...
10
Pressure Gauge (1/8" X 1.5") BS-88092
...
11
Air Pressure Regulator BS-88093
...
12
Air Tank Valve Drain BS-88094
...
13
Air Tube, pressure sensing BS-88206
...
14
Air-Compressor-to-Tank Tube BS-88280
...
15
1/4"-20 Self-drilling Capscrew BS-88289
...
16
Decal - Drain Air Compressor BS-88817
...
17
Decal - Warning BS-88994
...
18
Decal - Maintenance BS-89021
...
19
DECAL, WARNING BS-89022GS
...
20
Decal - 1.5 HP Oilless BS-89270
...
21
7/8" I.D. Strain Relief BS-89506
...
22
CORD, POWER 14 GA 3W BS-89508GS
...
23
Compressor Fitting 37TX37P BS-89514
...
24
3/8" I.D. Compressor Connector BS-89518
...
25
1/4" x 1/8" I.D. Compressor Fitting BS-87765
...
26
Brass LPN, 1/4" x 1" x 1/2" BS-91063
...
27
RHSSNB, 1/4C X 1/2 GR BS-7091064YP
...
28
4mm Aluminum Rivet BS-68831
...
29
Oilless Electric Air Compressor BS-88065
...
...
...
