9486-0 Briggs and Stratton Portable Generator C5000, 5,000 Watt

Model: 9486-0

Save
 Part Not Listed?Part Not Listed?
product name

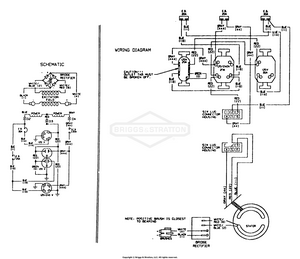

Electrical Data

...

No Parts Available for this Schematic

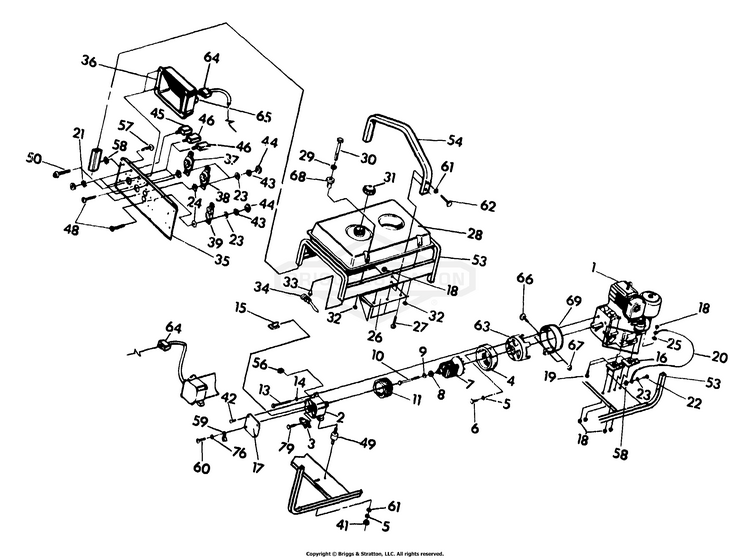

Generator

...
...
1
Briggs & Stratton 11hp Eng. BS-79557
...
2
Rear Bearing Carrier BS-66825A
...
3
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
4
ADPTR, HSNG, 8 HP BS-66365DGS
...
5
WASHER, Lock BS-22129GS
...
6
5/16"-24 x 2-1/2" Screw BS-23541
...
7
Rotor Assembly BS-74716
...
8
BEARING BS-65791GS
...
9
Special Washer BS-67451
...
10
CAPSCREW, Hex Head BS-75431GS
...
11
Stator Assembly BS-79636
...
13
M6-1.0 x 130mm Bolt BS-66449D
...
14
CAP BS-5022097SM
...
15
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
16
MOUNT, Vibration 45°. BS-70642GS
...
17
Bearing Carrier Cover BS-67025
...
18
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
19
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
20
4" Ground Wire BS-10953621
...
21
WASHER, 7/16" Int Lock BS-82881GS
...
22
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
23
WASHER BS-38150GS
...
24
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
25
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
26
Heat Shield BS-84459
...
27
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
28
5 gal. Plastic Gas Tank BS-77374
...
29
WSHR, SPCL, BLK BS-78830GS
...
30
M6 x 35mm Black Capscrew BS-79816
...
31
Fuel Tank Cap BS-78824
...
32
NUT, FLANGE LOCK - M6 BS-77395GS
...
33
Plastic Tank Bushing BS-80269
...
34
Kit, Valve BS-192980GS
...
35
Control Panel BS-81897
...
36
PANEL, Control, Back, Plastic BS-81919GS
...
37
OUTLET-120V TL30A BS-705932
...
38
OUTLET, 120/240V Locking, 20A BS-68867GS
...
39
120 Volts, 20 amp Duplex Receptacle BS-68795
...
41
NUT, 5/16-18 HEX BS-25244GS
...
42
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
43
No. 8 Lock Washer BS-22264
...
44
NUT, M4-0.7 Hex BS-51715GS
...
45
BREAKER-CIRCUIT 30A BS-706178
...
46
BREAKER-CIRCUIT 20A BS-209872GS
...
48
M4-0.7 x 10mm Screw BS-75475
...
49
MOUNT, VIBRATION BS-82857GS
...
50
SCREW, Self Tapping, STC 3 x 18 BS-82308GS
...
53
Cradle BS-84456
...
54
Lifting Bar BS-84453
...
56
GROMMET, RUBBER BS-67022GS
...
57
No. 10 x 5/8" Self-drill Screw BS-75494
...
58
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
59
Ground Lug BS-25433
...
60
M5-0.8 x 15mm Screw BS-68849
...
62
SCREW BS-39287GS
...
63
Engine Spacer BS-68342
...
64
FASTEN, On Tab Housing 6P BS-22695GS
...
65
HOUSING, Receptacle BS-22694GS
...
66
SCREW, M5 x 0.8 x 12 BS-52618GS
...
67
NUT, LOCKING-M5 BS-52856GS
...
68
GROMMET, TANK BS-83465GS
...
69
Finger Guard Wrap BS-83888
...
...
...
