9478-1 Briggs and Stratton Portable Generator ET2100, 2,100 Watt

Model: 9478-1

Save
 Part Not Listed?Part Not Listed?
product name

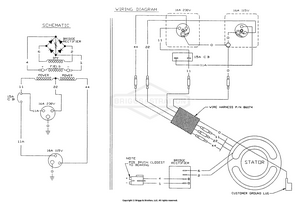

Electrical Data

...

No Parts Available for this Schematic

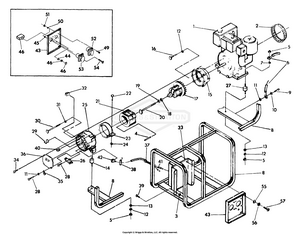

Generator

...
...
1
5 H.P. Briggs & Stratton Engine BS-80279
...
2
Recoil Starter Guard BS-82341
...
3
WHEEL, 12 X 8.5 BS-5023364YP
...
4
PIN, ROLL 4MM x 10 BS-81917GS
...
5
SKID PLATE BS-5045771B
...
6
Ground Wire BS-10953621
...
7
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
8
Cradle BS-85678
...
9
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
10
WASHER BS-38150GS
...
11
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
12
WASHER, Lock BS-22129GS
...
14
MOUNT-VIBRATION BS-194153GS
...
15
HSNG, ENG, FML BS-66365FGS
...
16
5/16"-24 x 3/4" Hex Capscrew BS-22336
...
17
Rotor Assembly BS-80023G
...
18
BEARING BS-65791GS
...
19
Flat Washer (special) BS-67451
...
20
5/16"-24 x 6-5/16" Rotor Bolt BS-58885A
...
21
Stator Assembly BS-84292
...
22
SCREW, M5 x 0.8 x 12 BS-52618GS
...
23
Stator Wrapper BS-81887F
...
24
NUT, LOCKING-M5 BS-52856GS
...
25
Rear Bearing Carrier BS-66825
...
26
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
27
MOUNT,Vibration BS-85651GS
...
28
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
29
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
30
M6-1.0 x 90mm Stator Bolt BS-66449B
...
31
CAP BS-5022097SM
...
32
GROMMET, RUBBER BS-67022GS
...
33
Panel Back Box BS-85692
...
34
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
35
Grounding Lug BS-25433
...
36
Bearing Carrier Cover BS-67025
...
37
Strain Relief BS-84313
...
38
TIE WRAP, 4" Black BS-28739AGS
...
39
No. 10-24 Self-drilling Screw BS-75494
...
40
GROMMET, Plastic RBC BS-84242GS
...
41
Wire Harness BS-86074
...
42
GROMMET, Rubber BS-84135GS
...
43
Control Panel (sheet metal) BS-86064
...
44
WASHER, 7/16" Int Lock BS-82881GS
...
45
WASHER, #10 Ext. Shakeproof BS-23762GS
...
46
BREAKER, Circuit BS-75207DGS
...
49
SCREW BS-76040GS
...
50
WASHER, M5 Lock BS-49226GS
...
51
NUT, M5 x 0.8 BS-51716GS
...
52
OUTLET, 230V 16A, BLUE BS-83706GS
...
53
130 volts, 16 amp Receptacle BS-83707
...
54
SCREW BS-75477GS
...
55
M4 Flat Washer BS-22985
...
56
M4 Lock Washer BS-22264
...
57
M4 x 10mm Phillips Pan Head Machine Screw BS-75475
...
...
...
