9419-0 Briggs and Stratton Portable Generator S2400, 2,400 Watt

Model: 9419-0

Save
 Part Not Listed?Part Not Listed?
product name

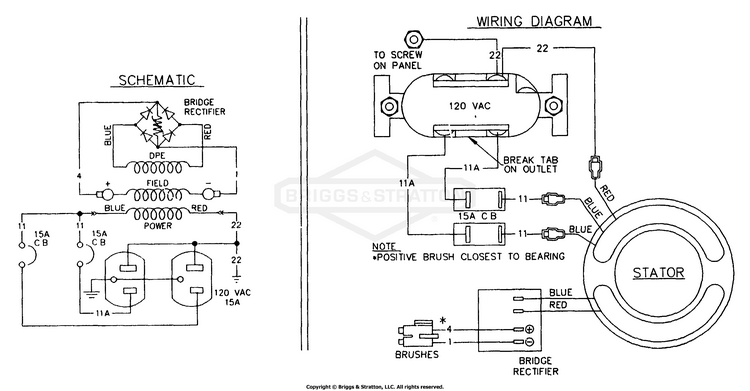

Electrical Data

...

No Parts Available for this Schematic

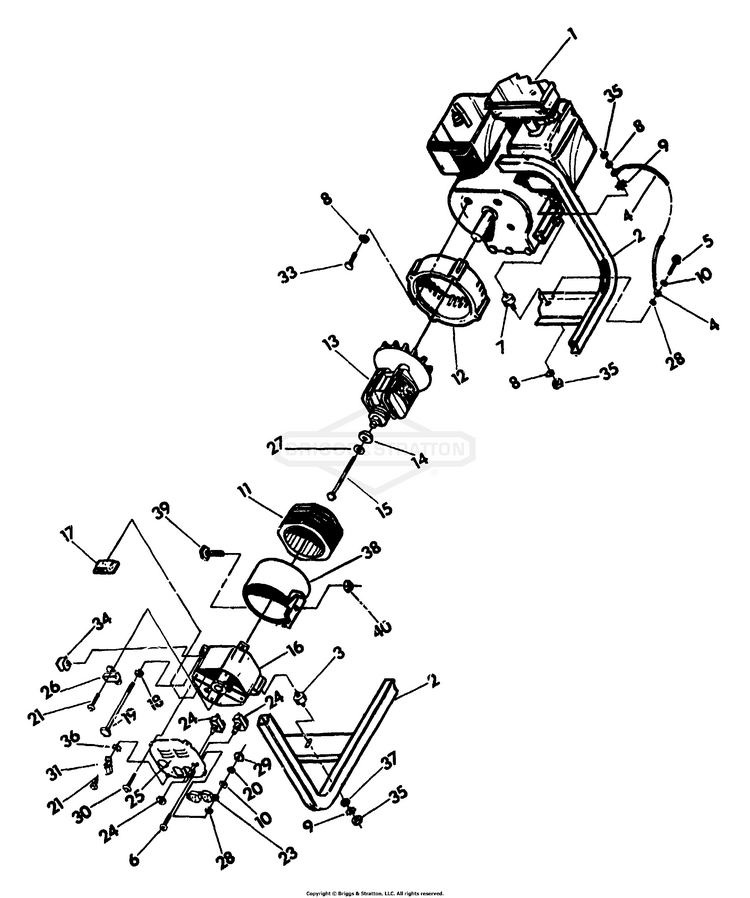

Generator

...
...
1
BEARING, STRAIGHT BS-7076515YP
...
2
Cradle Assembly BS-75967
...
3
MNT, VIBR, GEN 1.25OD BS-66443BGS
...
4
Ground Wire BS-10953621
...
5
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
6
M4-0.7 x 10mm Pan Head Machine Screw BS-75475
...
7
Vibration Mount BS-66443A
...
8
WASHER, Lock BS-22129GS
...
9
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
10
WASHER BS-38150GS
...
11
Stator Assembly BS-82338
...
12
HSNG, ENG, FML BS-66365FGS
...
13
Rotor Assembly BS-74713
...
14
BEARING BS-65791GS
...
15
5-1/6"-24 x 6-1/4" Rotor Bolt BS-24420
...
16
Rear Bearing Carrier BS-66825
...
17
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
18
CAP BS-5022097SM
...
19
M6-1.0 x 80mm Stator Bolt BS-66449C
...
20
No. 8 Lock Washer BS-22264
...
21
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
23
OUTLET, Duplex, 120 V, 15 A BS-63025GS
...
24
BRKR, CRCT, 15A, 2P BS-66848GS
...
25
Receptacle Panel BS-83007
...
26
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
27
Flat Washer (special) BS-67451
...
28
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
29
NUT, M4-0.7 Hex BS-51715GS
...
30
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
31
Grounding Lug BS-25433
...
33
5/16"-24 x 3/4" Hex Head Screw BS-22336
...
34
GROMMET, RUBBER BS-67022GS
...
35
SKID PLATE BS-5045771B
...
36
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
38
WRAP, ALT, 45MM X 623MM BS-81887AGS
...
39
SCREW, M5 x 0.8 x 12 BS-52618GS
...
40
NUT, LOCKING-M5 BS-52856GS
...
...
...
