9397-0 Briggs and Stratton Portable Generator 5,000 Watt

Model: 9397-0

Save
 Part Not Listed?Part Not Listed?
product name

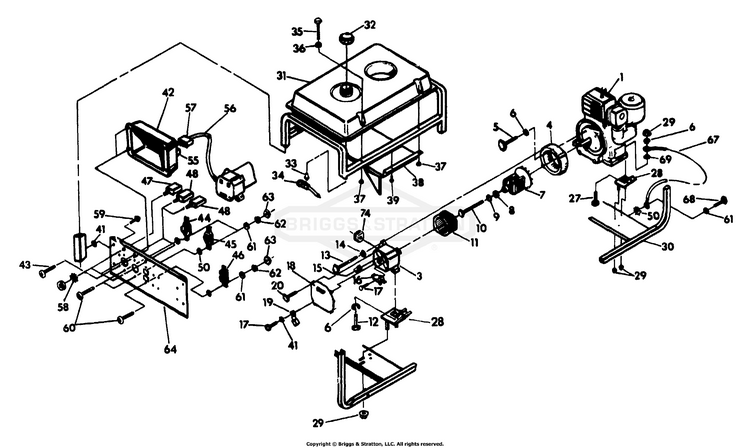

C-5000 AC Generator - No. 72900

...
...
1
10 H.P. Tecumseh Engine with Low Oil Shutdown BS-82335
...
3
Rear Bearing Carrier BS-66825
...
4
ADPTR, HSNG, 8 HP BS-66365DGS
...
5
5/16"-24 x 3/4" Hex Head Screw BS-22336
...
6
WASHER, Lock BS-22129GS
...
7
Rotor Assembly BS-74716
...
8
BEARING BS-65791GS
...
9
Special Washer BS-67451
...
10
CAPSCREW, Hex Head BS-75431GS
...
11
Stator Assembly BS-79636
...
12
SCREW BS-70644GS
...
13
M6-1.0 x 130mm Bolt BS-66449D
...
14
CAP BS-5022097SM
...
15
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
16
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
17
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
18
Bearing Carrier Cover BS-67025
...
19
Grounding Lug BS-25433
...
20
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
27
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
28
MOUNT, Vibration 45°. BS-70642GS
...
29
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
30
Cradle Assembly BS-77840
...
31
Fuel Tank BS-77374
...
32
Fuel Tank Cap BS-84582
...
33
Kit, Valve BS-192980GS
...
34
PULLEY CATCHER HZT/ BS-7078298YP
...
35
M6-1.0 x 55mm Hex Screw BS-78831
...
36
WSHR, SPCL, BLK BS-78830GS
...
37
NUT, FLANGE LOCK - M6 BS-77395GS
...
38
Heat Shield BS-78951B
...
39
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
41
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
42
PANEL, Control, Back, Plastic BS-81919GS
...
43
SCREW, Self Tapping, STC 3 x 18 BS-82308GS
...
44
OUTLET-120V TL30A BS-705932
...
45
OUTLET, 120/240V Locking, 20A BS-68867GS
...
46
OUTLET, 20A,120V BS-68759GS
...
47
BREAKER-CIRCUIT 30A BS-706178
...
48
BREAKER-CIRCUIT 20A BS-209872GS
...
50
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
55
HOUSING, Receptacle BS-22694GS
...
56
Black Sleeving BS-82860
...
57
FASTEN, On Tab Housing 6P BS-22695GS
...
58
WASHER, 7/16" Int Lock BS-82881GS
...
59
Self-drilling Screw BS-75494
...
60
M4-0.7 x 10mm Pan Head Screw BS-75475
...
61
WASHER BS-38150GS
...
62
No. 8 Lock Washer BS-22264
...
63
NUT, M4-0.7 Hex BS-51715GS
...
64
PNL, CNTRL, TAIWAN BS-81898GS
...
67
Ground Wire BS-10953621
...
68
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
69
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
74
GROMMET, RUBBER BS-67022GS
...
76
NUT, 5/16-18 HEX BS-25244GS

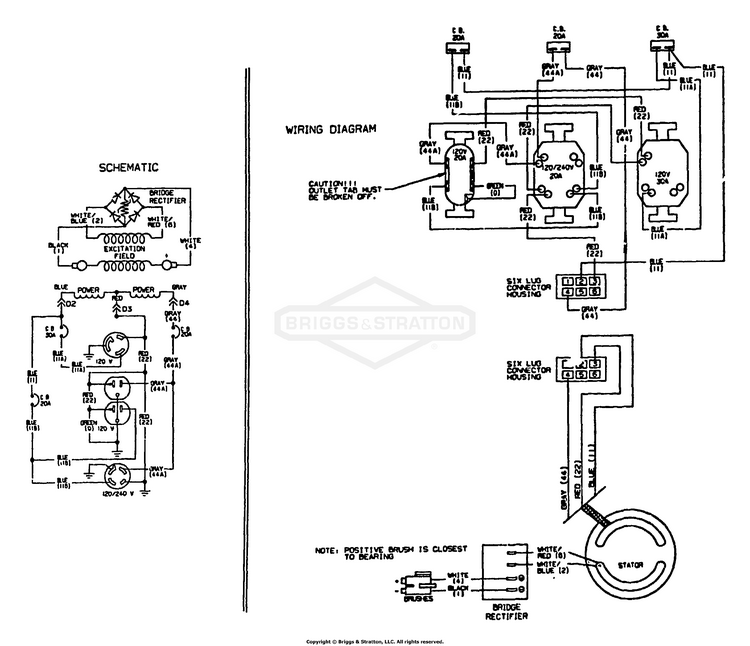

Electrical Data No. 81899

...

No Parts Available for this Schematic

...
...
...
