9335-0 Briggs and Stratton Portable Generator 4,000 Watt

Model: 9335-0

Save
 Part Not Listed?Part Not Listed?
product name

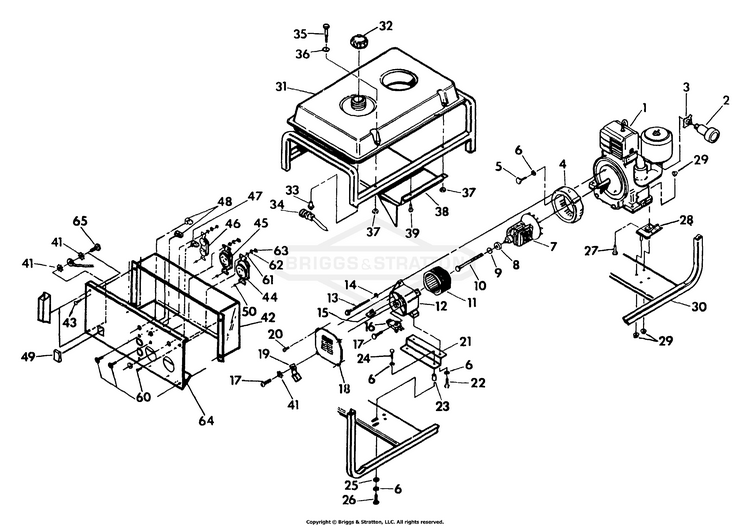

Generator & Cradle No. 80244

...
...
1
CAPSCREW-HEX BS-1960346SM
...
2
MFFLR, LOTONE, ROUND BS-79003GS
...
3
HOSE FUEL 2.5 LONG BS-7078297YP
...
4
HOUSING, Engine Adapter BS-66365GGS
...
5
5/16"-24 x 3/4" Hex Head Screw BS-22336
...
6
WASHER, Lock BS-22129GS
...
7
Rotor Assembly BS-74716
...
8
BEARING BS-65791GS
...
9
Special Washer BS-67451
...
10
CAPSCREW, Hex Head BS-75431GS
...
11
Stator Assembly BS-74709
...
12
Rear Bearing Carrier BS-66825
...
13
M6-1.0 x 130mm Bolt BS-66449D
...
14
CAP BS-5022097SM
...
15
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
16
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
17
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
18
Bearing Carrier Cover BS-67025
...
19
Grounding Lug BS-25433
...
20
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
21
Altornator Support BS-73078
...
22
HHCS, M8 x 20 BS-39253GS
...
23
Vibration Mount BS-44624
...
24
5/16"-18 x 1/2" Hex Head Screw BS-36223
...
26
5/16"-18 x 3/4" Hex Head Screw BS-30332
...
27
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
28
MOUNT, Vibration 45°. BS-70642GS
...
29
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
30
Cradle Assembly BS-77840
...
31
Fuel Tank BS-77374
...
32
Fuel Tank Cap BS-78824
...
33
Kit, Valve BS-192980GS
...
34
PULLEY CATCHER HZT/ BS-7078298YP
...
35
M6-1.0 x 55mm Hex Head Screw BS-78831
...
36
WSHR, SPCL, BLK BS-78830GS
...
37
NUT, FLANGE LOCK - M6 BS-77395GS
...
38
Heat Shield BS-78951A
...
39
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
41
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
42
Control Panel Cover BS-78952
...
43
CRIMPTITE, #8-18X1/4L BS-63036GS
...
44
OUTLET-120V TL30A BS-705932
...
45
OUTLET, 120/240V Locking, 20A BS-68867GS
...
46
OUTLET, 20A,120V BS-68759GS
...
47
BREAKER-CIRCUIT 30A BS-706178
...
48
BREAKER-CIRCUIT 20A BS-209872GS
...
49
Engine Run/Stop Switch BS-77263
...
50
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
60
M4-0.7 x 10mm Pan Head Screw BS-75475
...
61
WASHER BS-38150GS
...
62
No. 8 Lock Washer BS-22264
...
63
NUT, M4-0.7 Hex BS-51715GS
...
64
(C) BEARING SUPPORT W BS-7077846YP
...
65
No. 10 x 5/8" Self-Drill Screw BS-75494
...
...
...
