9214-0 Briggs and Stratton Portable Generator 4,000 Watt

Model: 9214-0

Save
 Part Not Listed?Part Not Listed?
product name

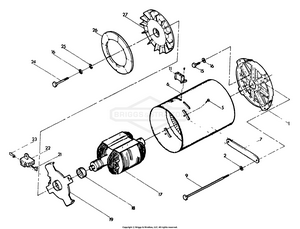

Generator No. 71918

...
...
1
Engine Adapter Housing BS-43873
...
2
CAP BS-5022097SM
...
5
No. 10-32 x 3/8" Screw BS-24489
...
6
Stator Assembly BS-68749E
...
7
Stator Bolt Bar BS-44338
...
9
Stator Bolt BS-44395B
...
15
WHEEL ASSEMBLY BS-84010756
...
16
LOCKWASHER, SPLIT 3/8 BS-703454
...
17
Rotor Assembly BS-68748
...
18
Rotor Bearing BS-24049
...
19
Bearing Carrier BS-44943
...
21
ASSY, BRUSH BS-A24044AGS
...
22
HLDR, BRUSH, UNIV BS-23877DGS
...
23
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
24
NUT BS-5025254FS
...
25
Washer, .34 x 1 x 10 BS-50190GS
...
26
CVR, FAN, PLSTC BS-44357GS
...
27
Cooling Fan BS-44331

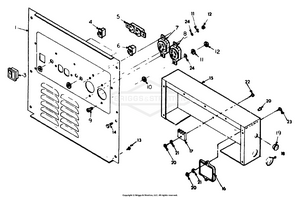

Receptacle Panel No. 71917

...
...
1
RECEPTACLE PANEL(MODEL 9214-0) BS-70774B
...
RECEPTACLE PANEL(MODEL 9215-C) BS-70776C
...
3
SWITCH, ENG, CTRL, ILUM BS-66817GS
...
4
CIRCUIT BREAKER-20 AMP BS-66819
...
5
OUTLET, 20A,120V BS-68759GS
...
6
CIRCUIT BREAKER-30 AMP BS-60824
...
7
OUTLET-120V TL30A RECEPTACLE IS A NEMA L5-30R BS-705932
...
8
OUTLET, 120/240V Locking, 20A RECEPTACLE IS A NEMA L14-20R BS-68867GS
...
9
SCREW COMMON HARDWARE ITEM, AVAILABLE LOCALLY BS-797483
...
10
TIRE ASSM, 24X12.00-1 COMMON HARDWARE ITEM, AVAILABLE LOCALLY BS-5023365YP
...
11
LOCK WASHER, NO.8 COMMON HARDWARE ITEM, AVAILABLE LOCALLY BS-22264
...
12
NUT, #8-32 COMMON HARDWARE ITEM, AVAILABLE LOCALLY BS-22471GS
...
13
SCREW(CRIMPTITE)-1/4"-20 x 1/2" COMMON HARDWARE ITEM, AVAILABLE LOCALLY BS-69254
...
14
CRIMPTITE, #8-18X1/4L COMMON HARDWARE ITEM, AVAILABLE LOCALLY BS-63036GS
...
15
BACK PANEL BS-78966
...
16
VOLTAGE REGULATOR BS-74074
...
17
RECTIFIER, BATTERY CHARGE BS-65795GS
...
18
PLUG, BUTTON 1.75 BS-58821
...
19
PLUG, BUTTON-1/2" DIA. BS-65511
...
20
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
21
VALVE, FUEL SHUT OFF BS-84010414
...
22
P.P.HD. MACH. SCR.-#10-32 x .75 BS-36935
...
23
P.P.HD. MACH. SCR.-#10-32 x 1.125 BS-33534
...
24
FLAT WASHER-NO. 8 BS-31850
...
RECEPTACLE COVER NOT SHOWN BS-68799
...
PLUG, 125V 30A 3-Prong USE NEMA L5-30P CONNECTOR PLUG BS-100523GS
...
PLUG-120/240V TL20A USE NEMA L14-20P CONNECTOR PLUG BS-100522GS

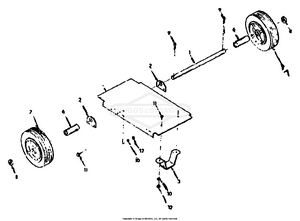

Wheel Kit

...
...
1
Axle Shaft BS-60564C
...
2
Axle Bracket BS-67212
...
3
Support Leg BS-68885
...
6
Wheel Spacer - 1 inch long BS-39712B
...
7
Wheel BS-52597
...
8
Washer, Flat 1/2 BS-22304GS
...
9
PIN, COTTER, 3/32-1 BS-22268GS
...
10
CAP BS-5022097SM
...
11
HANDLE BS-84010594
...
12
NUT, M6 BS-49813GS

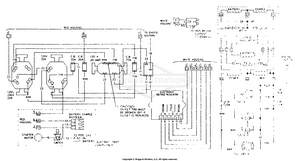

Wiring Diagram & Schematic No. 79004

...

No Parts Available for this Schematic

...
...
...
