9185-0 Briggs and Stratton Portable Generator T4000 4,000 Watt

Model: 9185-0

Save
 Part Not Listed?Part Not Listed?
product name

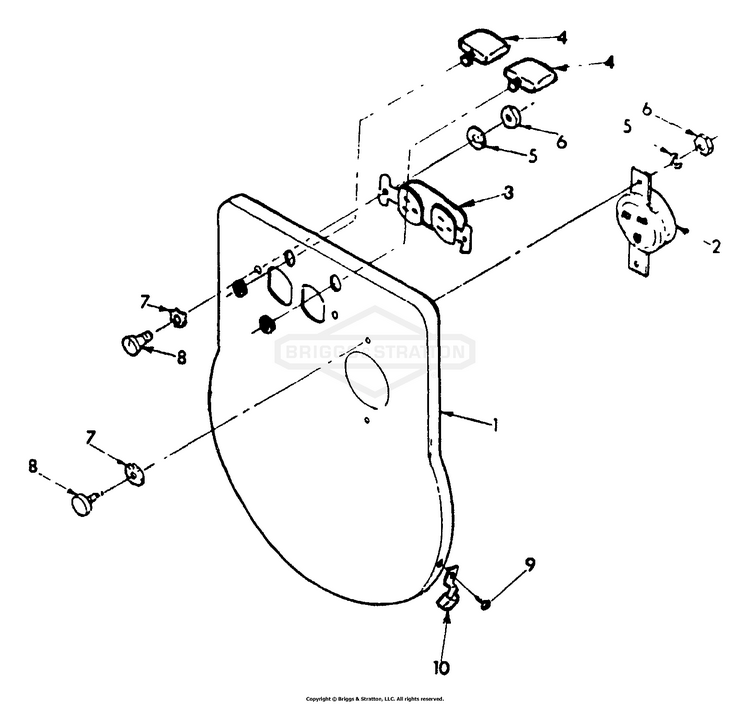

Control Panel

...
...
1
PANEL, RECEPTACLE-SILKSCREENED BS-75981
...
2
OUTLET, 250V 15A PBG-CSA APP BS-77249GS
...
3
OUTLET, Duplex, 120 V, 15 A BS-63025GS
...
4
BREAKER, Circuit BS-75207DGS
...
5
WASHER, LOCK-M4 BS-22264
...
6
NUT, M4-0.7 Hex BS-51715GS
...
7
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
8
SCREW, FAN HEAD MACHINE-M4-0.7 x 10 LG. BS-76522
...
9
SCREW (TAPTITE)-NO. 10-32 x 3/8" BS-24489
...
10
LUG, GROUNDING BS-25433

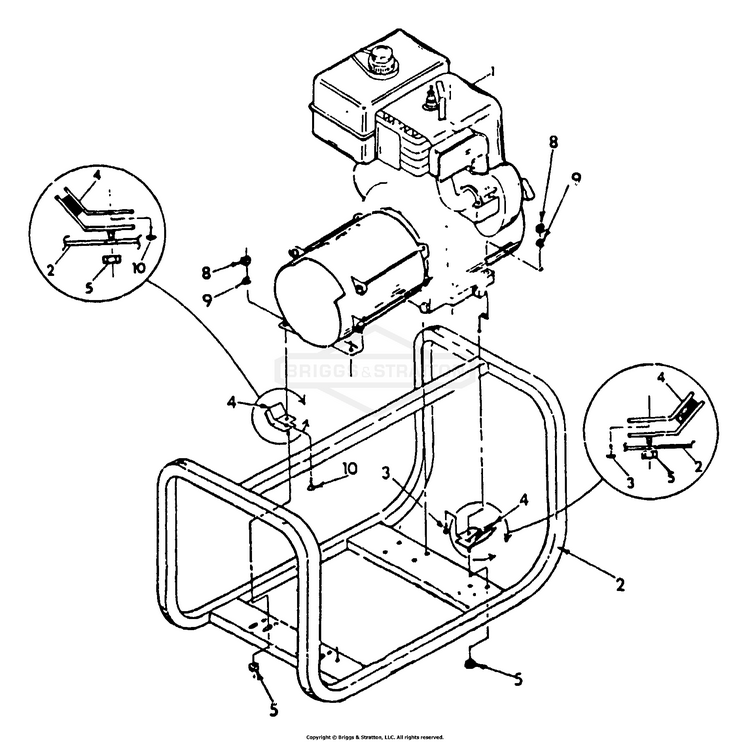

Engine And Cradle

...
...
1
ENGINE-8H.P. TECUMSEH BS-69649
...
2
CRADLE BS-75987
...
3
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
4
MOUNT, Vibration 45°. BS-70642GS
...
5
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
8
SKID PLATE BS-5045771B
...
9
WASHER, Lock BS-22129GS
...
10
SCREW BS-70644GS

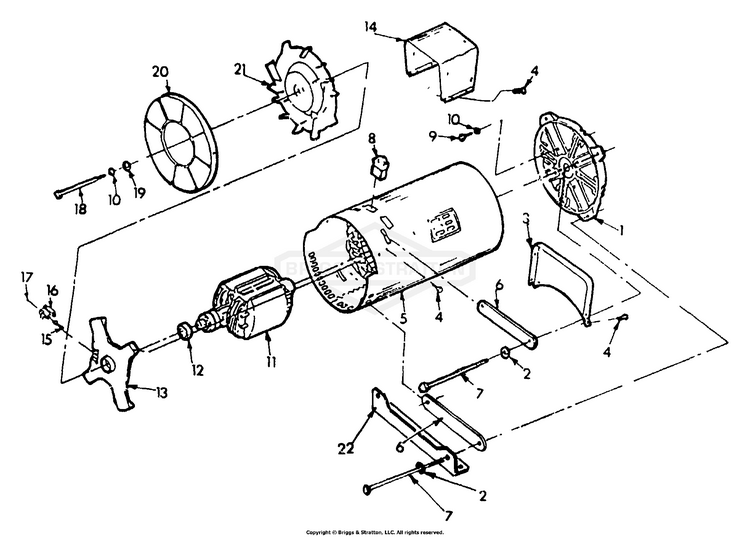

Generator

...
...
1
HOUSING, ENGINE ADAPTER BS-60220F
...
2
CAP BS-5022097SM
...
3
(C) WELD PIVOT ARM BS-7043874YP
...
4
SCREW (TAPTITE)-NO. 10-32 x 3/8" BS-24489
...
5
STATOR ASSEMBLY BS-75985
...
6
BAR, STATOR BOLT BS-44338
...
7
BOLT, STATOR BS-44395E
...
8
RECTIFIER ASSEMBLY, BRIDGE BS-28293
...
9
CAPSCREW, HEX HEAD-5/16"-24 x 3/4" BS-22336
...
10
WASHER, Lock BS-22129GS
...
11
ROTOR ASSEMBLY BS-75986
...
12
BEARING, ROTOR BS-24049
...
13
CARRIER, BEARING BS-44943
...
14
SHROUD, PANEL BS-75971
...
15
ASSY, BRUSH BS-A24044AGS
...
16
HLDR, BRUSH, UNIV BS-23877DGS
...
17
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
18
HHCS, 5/16-24 X 8 BS-73071GS
...
19
Washer, .34 x 1 x 10 BS-50190GS
...
20
CVR, FAN, PLSTC BS-44357GS
...
21
FAN, COOLING BS-44331
...
22
SUPPORT, ALTERNATOR BS-77701

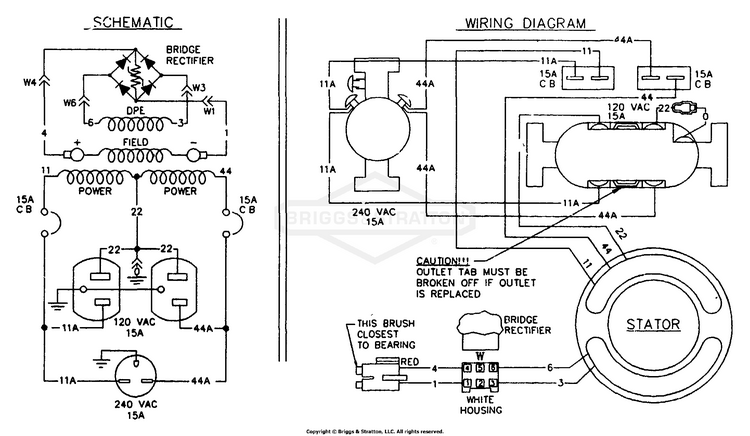

Wiring Diagram

...

No Parts Available for this Schematic

...
...
...
