9173-0 Briggs and Stratton Portable Generator S4001, 4,000 Watt

Model: 9173-0

Save
 Part Not Listed?Part Not Listed?
product name

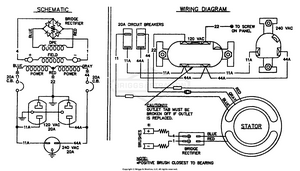

Electrical Schematic & Wiring Diagram No. 77677

...

No Parts Available for this Schematic

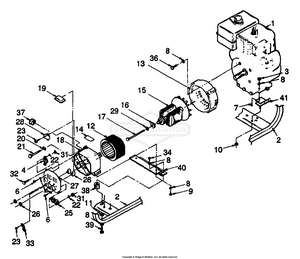

S4001 Generator

...
...
1
Briggs & Stratton engine BS-76516
...
2
Cradle assembly BS-75987
...
3
SKID PLATE BS-5045771B
...
4
240 volts receptacle Receptacle is a NEMA 6-20R. Use a NEMA 6-20P mating connector plug. BS-68735
...
6
SCREW BS-797483
...
7
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
8
WASHER, Lock BS-22129GS
...
9
HHCS, M8 x 20 BS-39253GS
...
10
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
12
Stator assembly BS-74709
...
13
HOUSING, Engine Adapter BS-66365GGS
...
15
Rotor assembly BS-74716
...
16
BEARING BS-65791GS
...
17
Rotor bolt BS-73067
...
18
Rear bearing carrier BS-66825
...
19
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
20
CAP BS-5022097SM
...
21
Stator bolt BS-66449D
...
22
Lockwasher BS-22264
...
23
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
25
OUTLET, 20A,120V BS-68759GS
...
26
20 amp circuit breaker BS-66819
...
27
Receptacle panel BS-72098
...
28
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
29
Special flatwasher BS-67451
...
30
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
31
NUT, #8-32 BS-22471GS
...
32
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
33
Grounding lug BS-25433
...
34
5/16"-18 x 1/2" capscrew BS-36223
...
36
5/16"-24 x 2-1/2" screw BS-22336
...
37
GROMMET, RUBBER BS-67022GS
...
38
Vibration mount BS-44624
...
39
5/16"-18 x 3/4" capscrew BS-30332
...
40
Generator support BS-73078
...
41
MOUNT, Vibration 45°. BS-70642GS
...
...
...
