9100-1 Briggs and Stratton Portable Generator 8,000 Watt

Model: 9100-1

Save
 Part Not Listed?Part Not Listed?
product name

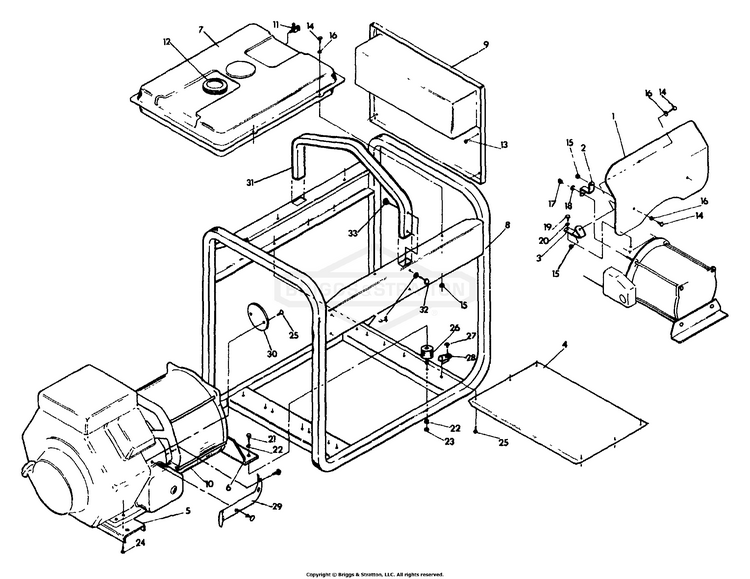

A-C Generator

...
...
1
PLATE, COVER BS-71791
...
2
SCREW, NO. 8-32 x 1/4" BS-26902
...
3
BELT, 73.75 AA BS-7043844YP
...
4
ASSY, BRUSH BS-A24044AGS
...
5
HLDR, BRUSH, UNIV BS-23877DGS
...
6
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
7
SCREW-NO. 8-32 x 5/8" BS-24488
...
8
CAPSCREW, HEX HEAD-5/16"-24 x 12.25 BS-77324
...
9
CARRIER-BEARING BS-49410AGS
...
10
ASSY, STATOR BS-77218GS
...
11
Washer, .34 x 1 x 10 BS-50190GS
...
12
DECAL, Independent Suspension BS-5022237
...
13
WHEEL ASSEMBLY BS-84010756
...
14
BEARING BS-24049
...
15
ROTOR ASSEMBLY BS-77321
...
16
CAPSCREW, HEX HEAD-5/16"-24 x 9.50" BS-39654
...
17
ADAPTER-ENGINE BS-BB2700GS
...
18
GUARD, FAN BS-55275
...
19
SCREW, NO. 10-32 x 1/4" BS-46852
...
20
WASHER, Lock BS-22129GS
...
21
GUARD, CENTER BS-55277
...
22
CAPSCREW, HEX HEAD-5/16"-24 x 3/4" BS-22336
...
23
SNAP BUSHING 7/8" BS-23484D

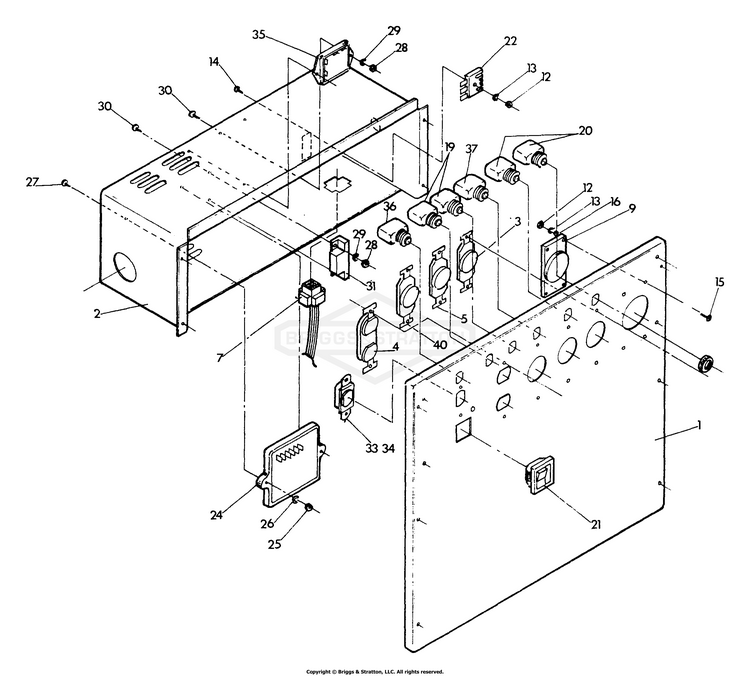

Control Panel & Cover Assembly

...
...
1
PANEL, CONTROL BS-77302
...
2
COVER, CONTROL PANEL BS-77315
...
3
OUTLET, 120/240V Locking, 20A BS-68867GS
...
4
OUTLET, Duplex, 120 V, 15 A BS-63025GS
...
5
OUTLET-120V TL30A BS-705932
...
7
CONNECTOR BS-63993
...
9
OUTLET, 50A, 240V BS-74191GS
...
12
NUT, M4-0.7 Hex BS-51715GS
...
13
LOCKWASHER #8 BS-22264
...
14
P.P.H.M. SCR. M4-0.7 x 20 BS-70439
...
15
P.P.H.M. SCR. M4-0.7 x 10 BS-75475
...
16
WASHER BS-38150GS
...
17
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
18
WHEEL, 12 X 8.5 BS-5023364YP
...
19
BREAKER, Circuit BS-75207DGS
...
20
BREAKER-CIRCUIT 30A BS-706178
...
21
SWITCH, ENG, CTRL, ILUM BS-66817GS
...
22
RECTIFIER, BATTERY CHARGE BS-65795GS
...
23
ELECTRIC TAPE P-248 38 LONG BS-27565
...
24
AC VOLTAGE REGULATOR BS-74074
...
25
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
26
VALVE, FUEL SHUT OFF BS-84010414
...
27
P.H.M.SCR. #10-32 x 1.125 BS-33534
...
28
HEX NUT-#6-32 BS-22188
...
29
PULLEY, PUMP DRIVE BS-5022155SM
...
30
SCREW BS-36902GS
...
31
BRKR, CRCT BS-48476GS
...
32
SCREW, M3-0.5 x 10mm BS-43181GS
...
33
OUTLET, 12 V DC BS-66821GS
...
34
OUTLET, 12Volt DC (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.) BS-66822GS
...
35
THERMAL RELAY BS-77314
...
36
BRKR, CRCT, 10A BS-75207BGS
...
37
BREAKER-CIRCUIT 20A BS-209872GS
...
38
SLEEVING, 650MM BS-22661Y
...
39
SLEEVING, 700MM BS-22661Y
...
40
OUTLET 120/20AMP. TWISTLOCK BS-74190

Cradle

...
...
1
SHIELD, HEAT DEFLECTING BS-77318
...
2
BRACKET, HEAT SHIELD BS-77319
...
3
BRACKET, HEAT SHIELD BS-77306
...
4
HEAT SHIELD, (GAS TANK) BS-77316
...
5
SUPPORT, ENGINE BS-77304
...
6
SUPPORT, ALTERNATOR BS-77303
...
7
LEVER BRAKE BS-7075465YP
...
8
CRADLE, V-TWIN BS-77300
...
9
CONTROL PANEL & COVER ASSEMBLY, 8-KW BS-77307A
...
CONTROL PANEL & COVER ASSEMBLY, 6-KW BS-77307
...
10

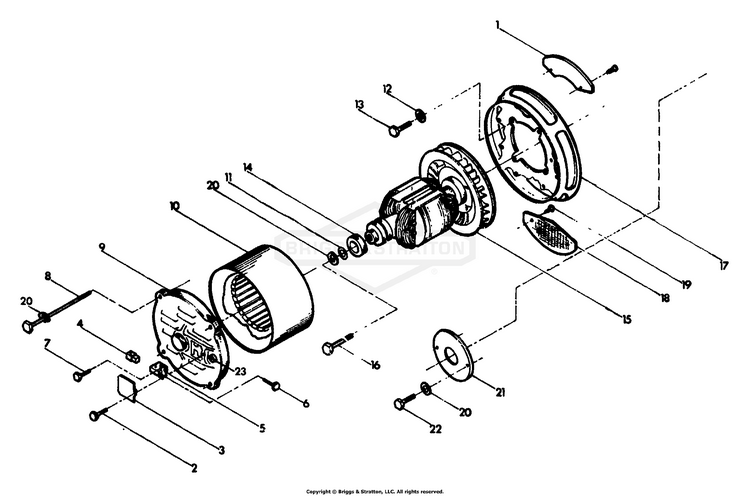

EXPLODED VIEW-ALTERNATOR BS-77574
...
11
VALVE, FUEL SHUT-OFF BS-75938
...
12
CAP & GAUGE, FUEL BS-76272
...
13
SCREW, SELF DRILLING NO. 10-24 x 5/8" BS-75494
...
14
SCREW-M8 x 16 BS-42568GS
...
15
NUT-M6 FLANGE BS-52857GS
...
17
NUT, HEX 5/16"-24 BS-24114
...
18
WASHER, Lock BS-22129GS
...
19
HHCS, M5-0.8 X 16 BS-49815GS
...
20
VALVE, FUEL SHUT OFF BS-84010414
...
21
WHEEL ASSEMBLY BS-84010756
...
22
DECAL, Independent Suspension BS-5022237
...
23
DECAL, ProCut Z Text BS-5022241
...
24
SCREW, SELF TAPPING 3/8"-16 x 3/4" BS-59637
...
25
CRIMPTITE, #8-18X1/4L BS-63036GS
...
26
MNT, VBRTN, 30 DURO BS-35097GS
...
27
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
28
LUG, GROUNDING BS-25433
...
29
SHIELD, WIRE BS-77323
...
30
COVER, STARTER BS-77326
...
31
LIFTING, BAR BS-77301
...
32
SCREW BS-39287GS
...
33
NUT, Locking Hex M8 - 1.25 BS-52858GS

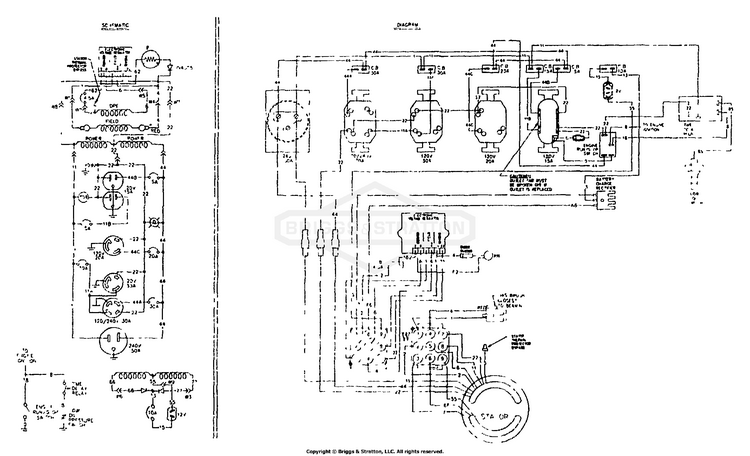

Electrical Schematic & Wiring Diagram

...
