9023-0 Briggs and Stratton Portable Generator L4000

Model: 9023-0

Save
 Part Not Listed?Part Not Listed?
product name

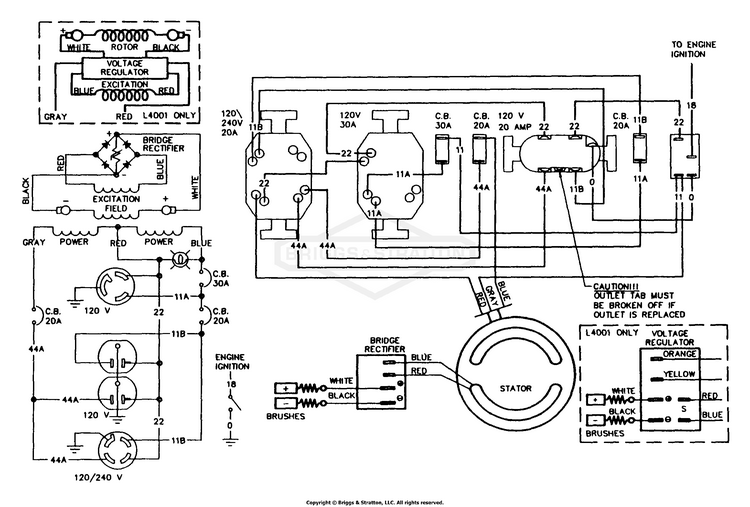

Electrical Schematic & Wiring Diagram

...

No Parts Available for this Schematic

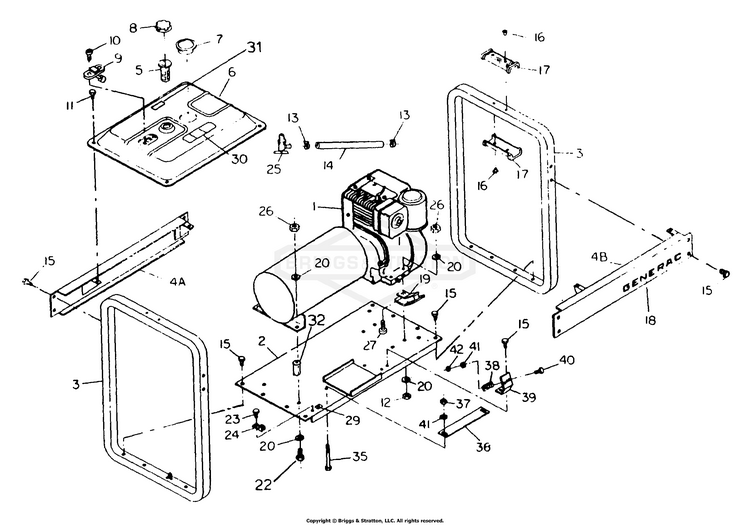

Mounting Base

...
...
1
ENGINE- Briggs & Stratton 8 HP (Model 190412-3077-01) Used on L4000 & L4002 BS-68858
...
ENGINE- Briggs & Stratton 8 HP (Model 195432-0805-01) Industrial/Commercial Type. For L4001 only BS-70616
...
2
BASE, Mounting BS-70643
...
3
LOOP, Cradle End BS-70603
...
4A
SUPPORT, Fuel Tank - LH BS-70636
...
4B
SUPPORT, Fuel Tank - RH BS-70636A
...
5
STAINER, Fuel Fill BS-70630
...
6
TANK, Fuel- 4.5 U.S. Gallons (17.0 liters) BS-69662
...
7
CVR, ACC, SPARKPLUG BS-64680BGS
...
8
CAP, Fuel Tank BS-69658
...
9
GAUGE, Fuel Level BS-66391B
...
10
SCREW - M5-0.80 x 12mm BS-52749
...
11
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
12
SKID PLATE BS-5045771B
...
13
CLAMP, Fuel Hose- 1/4" Diameter BS-47031C
...
14
HOSE, Fuel - 1/4" ID x 12" long BS-47662AE
...
15
SCREW (Crimptite) - 1/4"-20 x 1/2" BS-58442
...
16
RIVET - 4mm BS-66831
...
17
HANDLE, Plastic BS-66450
...
18
DECAL - "GENERAC" Logo BS-56318A
...
19
MOUNT, Vibration 45°. BS-70642GS
...
20
WASHER, Lock BS-22129GS
...
22
MODULE BS-84009650
...
23
SCREW (Taptite) - No. 10-32 x 3/8" BS-24489
...
24
LUG, Grounding BS-25433
...
25
VLV, SHUT OFF BS-27734GS
...
26
NUT, 5/16 - 18 BS-22259GS
...
27
PPHMS, 5/16-18 X 1.50 BS-70653GS
...
29
DECAL, GRD LUG BS-67210AGS
...
30
DECAL - "Caution!" BS-70687
...
31
DECAL - "Waning!" (California) BS-72079
...
32
MOUNT, Vibration BS-44624

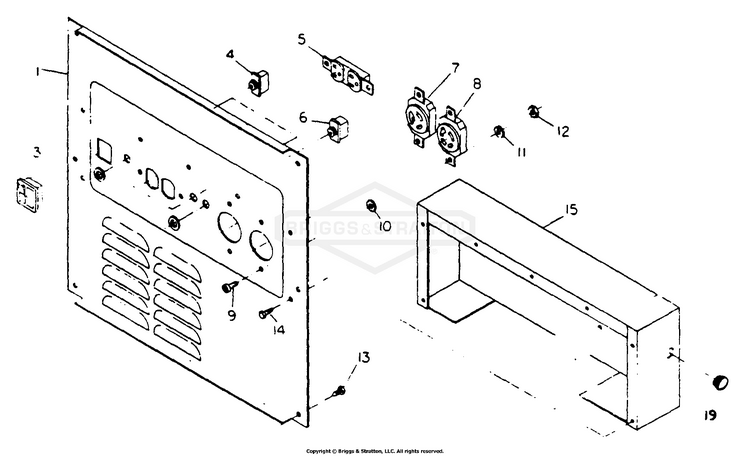

Receptacle Panel

...
...
1
PANEL, Receptacle (Silkscreened)- L4000 BS-68866A
...
PANEL, Receptacle (Silkscreened)- L4001 BS-68866G
...
PANEL, Receptacle (Silkscreened)- L4002 BS-68866K
...
3
SWITCH, ENG, CTRL, ILUM BS-66817GS
...
4
BREAKER, Circuit- 20 amp BS-66819
...
5
OUTLET, 20A,120V BS-68759GS
...
6
BREAKER, Circuit - 30 amp BS-60824
...
7
OUTLET-120V TL30A BS-705932
...
8
OUTLET, 120/240V Locking, 20A BS-68867GS
...
9
SCREW BS-797483
...
10
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
11
WASHER, Lock- No. 8 BS-22264
...
12
NUT, #8-32 BS-22471GS
...
13
SCREW (Crimptite)- 1/4"-20 x 1/2" BS-69254
...
14
CRIMPTITE, #8-18X1/4L BS-63036GS
...
15
PANEL, Back BS-68746
...
19
BUTTON, Plug- 1/2" BS-65511
...
PLUG, 125V 30A 3-Prong BS-100523GS
...
PLUG-120/240V TL20A BS-100522GS

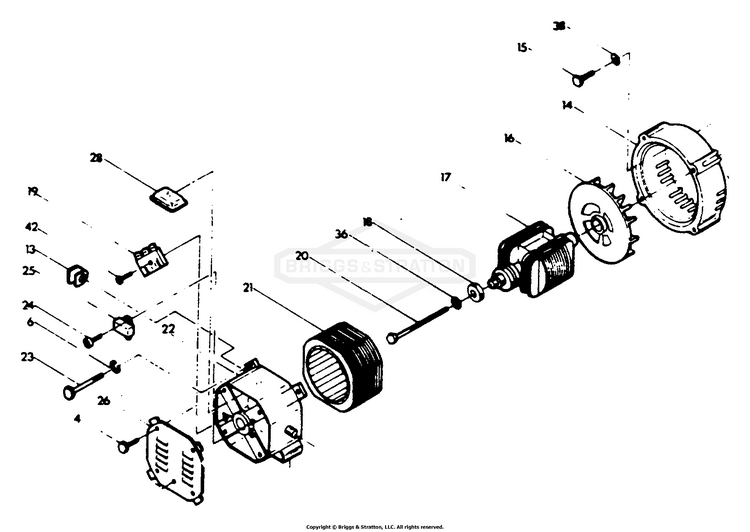

Spacer Engine

...
...
4
TAPTITE, M5-0.8 X 8 BS-66849BGS
...
6
CAP BS-5022097SM
...
13
GROMMET, RUBBER BS-67022GS
...
14
ADPTR, HSNG, 8 HP BS-66365DGS
...
15
CAPSCREW, Hex Head- 5/16"-18 x 2-1/2" BS-22532
...
16
FAN, Cooling BS-66389
...
17
ROTOR (L4000, L4002 only) BS-70419
...
ROTOR (L4001 only) BS-70418
...
18
BEARING BS-65791GS
...
19
RECTIFIER, BATTERY CHARGE BS-65795GS
...
20
BOLT, Rotor (L4000, L4002 only) BS-73067
...
HHCS, 5/16 - 24 x 8-7/8 (L4001 Only) BS-73068GS
...
21
STATOR (L4000, L4002 only) BS-72087
...
ASSY, STATOR, 4000 (L4001 Only) BS-72088GS
...
22
CARRIER, Rear Bearing BS-66825
...
23
BOLT, Stator (L4000, L4002 only) BS-66449D
...
BOLT, Stator (L4001 Only) BS-66449F
...
24
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
25
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
26
COVER, Bearing Carrier BS-67025
...
28
ASSY, RECTIFIER, BRIDGE (L4000, 1402 only) BS-66850GS
...
REGULATOR, VOLT BS-67107GS
...
36
WASHER, Flat - M8 (Special) BS-67451
...
38
WASHER, Lock BS-22129GS
...
42
SCREW BS-66849AGS
...
49
SPACER, Engine BS-68342
...
MANUAL, Owner's Not Shown BS-73735
...
...
...
