8983-5 Briggs and Stratton Portable Generator S5002, 5,000 Watt

Model: 8983-5

Save
 Part Not Listed?Part Not Listed?
product name

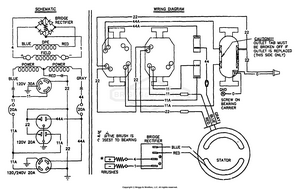

Electrical Schematic & Wiring Diagram

...

No Parts Available for this Schematic

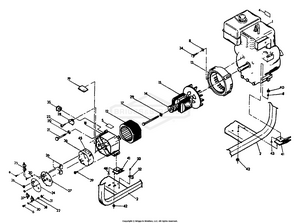

Generator

...
...
1
ENGINE-TECUMSEH HM100 BS-71389
...
2
CRADLE ASSEMBLY BS-75987
...
5
DECAL-WARNING BS-72079
...
4
DECAL BS-39178
...
6
SCREW BS-797483
...
8
WASHER, Lock BS-22129GS
...
11
SCREW, PAN HD.-NO. 10-32 x 1/4" BS-33528
...
12
STATOR ASSEMBLY BS-74709
...
13
ADPTR, HSNG, 8 HP BS-66365DGS
...
14
BEARING BS-65791GS
...
15
ROTOR ASSEMBLY BS-74716
...
17
BOLT, ROTOR-5/16"-24 x 8.25 BS-73067
...
18
CARRIER, REAR BEARING BS-66825
...
19
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
20
CAP BS-5022097SM
...
21
BOLT, STATOR-M6-1.00 x 130MM BS-66449D
...
22
LOCKWASHER-M8 BS-22264
...
23
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
24
(C)BELT SET OF 2 DE BS-7072293YP
...
25
RECEPTACLE-120 VOLTS AC BS-69759
...
26
BREAKER, CIRCUIT-20 AMP BS-66819
...
28
BRUSH BS-66385
...
29
FLAT WASHER-(SPECIAL) BS-67451
...
30
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
31
NUT, #8-32 BS-22471GS
...
32
LUG, GROUNDING BS-25433
...
33
SCREW, (TAPTITE)-NO. 10-24 x 1/2" BS-24489
...
34
SCREW, HEX HEAD-5/16"-24 x 3/4" BS-22336
...
35
GROMMET, RUBBER BS-67022GS
...
36
BRKT, TRACTION CABLE BS-7072280YP
...
37
OUTLET-120V TL30A BS-705932
...
38
OUTLET, 120/240V Locking, 20A BS-68867GS
...
39
SCREW, PAN HD.-M5-0.80 x 25MM BS-73540
...
40
SKID PLATE BS-5045771B
...
41
MOUNT, Vibration 45°. BS-70642GS
...
42
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
43
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
44
SCREW BS-70644GS
...
45
DECAL, Neutral Ground BS-74728GS
...
...
...
