product name

8972-2 Briggs and Stratton Portable Generator S4001, 4,000 Watt

Model: 8972-2

Save
 Part Not Listed?Part Not Listed?
product name

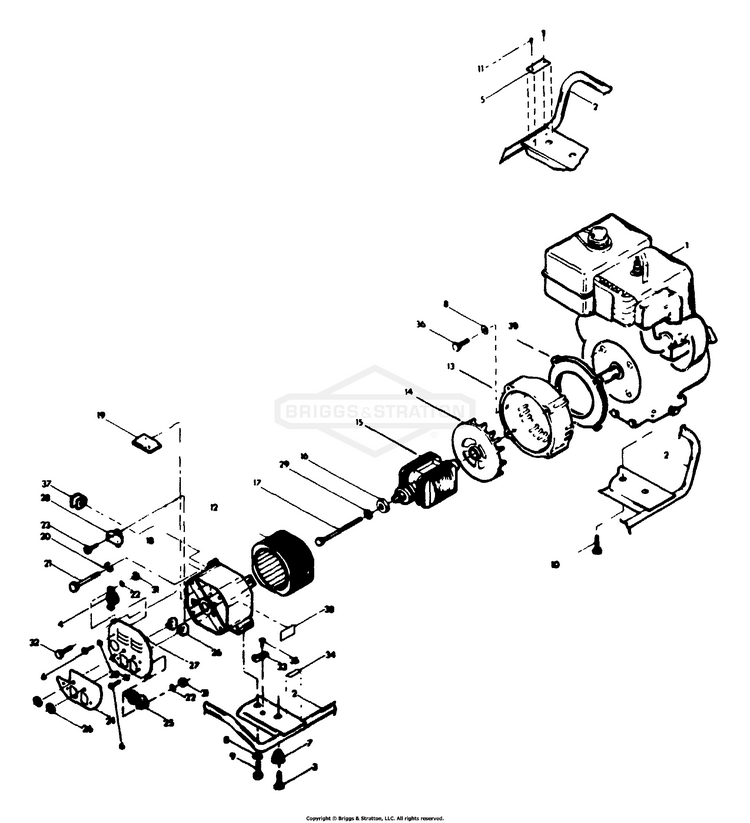

Generator

...
...
1
ENGINE,BRIGGS & STRATTON 8 HP BS-~NSP
...
2
CRADLE BS-72095
...
3
SCREW(TAPTITE) - 5/16" - 18 X 1/2" BS-24910
...
4
RECEPTACLE - 240 VOLTS. 20 AMP BS-68735
...
5
PLATE, SERIAL BS-~NSP
...
6
SCREW BS-797483
...
7
MOUNT, VIBRATION BS-23594
...
8
WASHER, Lock BS-22129GS
...
9
HHCS, M8 x 20 BS-39253GS
...
10
SCREW(TAPTITE) - 3/8"-16 X 3/4" BS-59637
...
11
RIVET - STAINLESS STEEL BS-36261
...
12
STATOR BS-70421
...
13
ADPTR, HSNG, 8 HP BS-66365DGS
...
14
FAN, GENERATOR COOLING BS-66389
...
15
ROTOR BS-72066
...
16
BEARING BS-65791GS
...
17
BOLT, ROTOR - 5/16"- 24 X 8.25" BS-73067
...
18
CARRIER, REAR BEARING BS-66825
...
19
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
20
CAP BS-5022097SM
...
21
BOLT, STATOR - M6-1.00 X 130MM BS-66449D
...
22
WASHER, LOCK - NO. 8 BS-22264
...
23
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
24
DECAL - RECEPTACLE PANEL BS-72278
...
25
RECEPTACLE - 120 VOLTS A C BS-69759
...
26
BREAKER, CIRCUIT - 20 AMP BS-66819
...
27
PANEL, RECEPTACLE BS-72096
...
28
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
29
WASHER, FLAT - SPECIAL BS-67541
...
30
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
31
NUT, #8-32 BS-22471GS
...
32
TAPTITE, M5-0.8 X 8 BS-66849BGS
...
33
LUG, GROUNDING BS-25433
...
34
DECAL, GRD LUG BS-67210AGS
...
35
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
37
GROMMET, RUBBER BS-67022GS
...
38
BAFFLE LH BS-7072296YP
...
39
SPACER, ENGINE BS-68342
...
MANUAL-OPERATOR BS-73072AGS

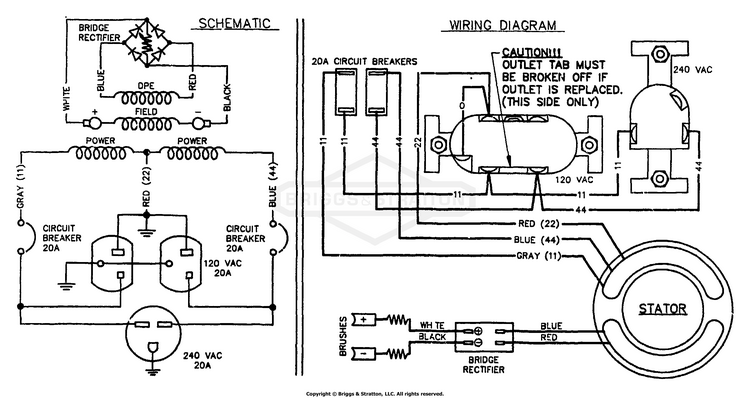

Wiring Diagram & Schematic

...

No Parts Available for this Schematic

...
...
...
