8971-4 Briggs and Stratton Portable Generator S4000, 4,000 Watt

Model: 8971-4

Save
 Part Not Listed?Part Not Listed?
product name

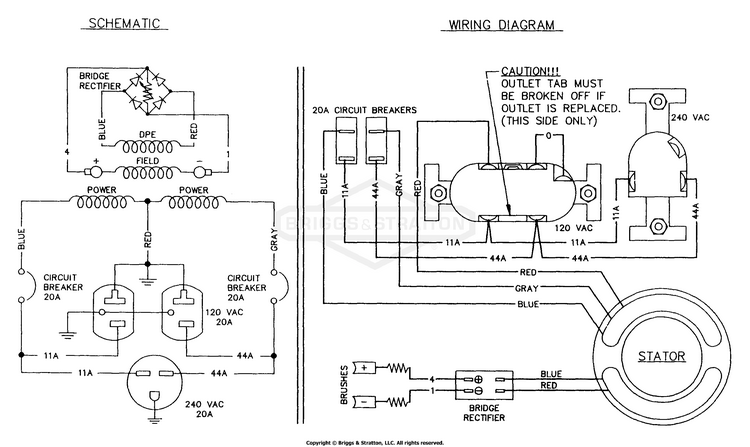

Electrical Schematic & Wiring Diagram

...

No Parts Available for this Schematic

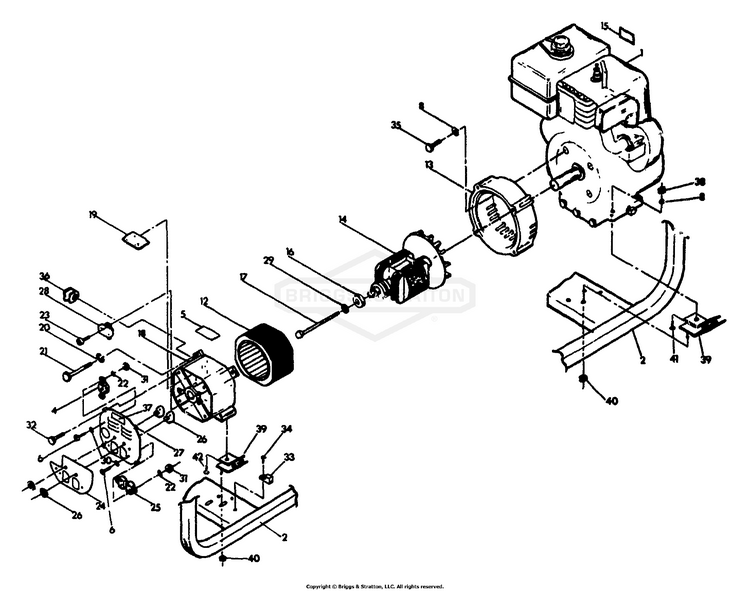

Generator

...
...
1
ENGINE-TECUMSEH HM80 BS-69649
...
2
CRADLE ASSEMBLY BS-75967
...
4
RECEPTACLE-240 VOLTS, 20AMP (NEMA 6-20R) BS-68735
...
5
DECAL-WARNING BS-72079
...
6
SCREW BS-797483
...
8
WASHER, Lock BS-22129GS
...
12
BEARING, TAPERED ROLL BS-5020884SM
...
13
HOUSING, ENGINE ADAPTOR BS-66355D
...
14
ROTOR ASSEMBLY BS-74715
...
15
DECAL, CAUTION BS-39178
...
16
BEARING, BALL BS-66791
...
17
BOLT, ROTOR 5/16"-24 x 7.75 BS-75428
...
18
CARRIER, REAR BEARING BS-66825
...
19
BOARD, CIRCUIT-BRIDGE RECTIFIER BS-66860
...
20
CAP BS-5022097SM
...
21
BOLT, STATOR-M6-1.00 x 115MM BS-66449E
...
22
LOCKWASHER-NO.8 BS-22264
...
23
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
24
DECAL-RECEPTACLE PANEL BS-72288
...
25
OUTLET, 20A,120V BS-68759GS
...
26
BREAKER, CIRCUIT-20 AMP BS-66819
...
27
PANEL, RECEPTACLE BS-72096
...
28
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
29
FLAT WASHER-(SPECIAL) BS-67451
...
30
LOCKWASHER (SERRATED)-NO.8 BS-23366
...
31
NUT, #8-32 BS-22471GS
...
32
TAPTITE, M6-1.0 X 20 BS-74906GS
...
33
LUG, GROUNDING BS-25433
...
34
SCREW, (TAPTITE)-NO. 10-24 x 1/2" BS-24489
...
35
SCREW, HEX HEAD-5/16"-24 x 3/4" BS-22336
...
36
GROMMET, RUBBER BS-67022GS
...
37
DECAL, GROUND NEUTRAL BS-74726
...
38
SKID PLATE BS-5045771B
...
39
MOUNT, Vibration 45°. BS-70642GS
...
40
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
41
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
42
SCREW BS-70644GS
...
...
...
