8970-2 Briggs and Stratton Portable Generator S2400, 2,250 Watt

Model: 8970-2

Save
 Part Not Listed?Part Not Listed?
product name

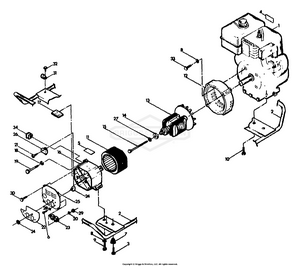

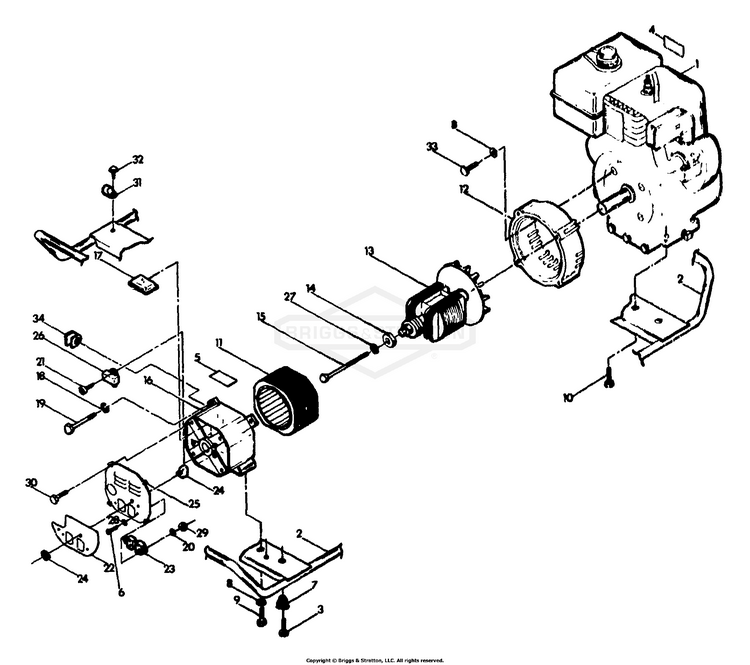

Generator No. 75419

...
...
1
ENGINE- Briggs & Stratton Model 130232-5205-01 BS-68770
...
2
(C) BRKT SEAT BS-7072090YP
...
3
SCREW (Taptite) 5/16"-18 x 1/2" BS-24910
...
4
DECAL- Caution! BS-39178
...
5
DECAL- Warning! BS-72079
...
6
SCREW BS-797483
...
7
MOUNT, Vibration BS-23594
...
8
WASHER, Lock BS-22129GS
...
9
HHCS, M8 x 20 BS-39253GS
...
10
SCREW (Taptite) 3/8"-16 x 3/4" BS-59637
...
11
BEARING, TAPERED ROLL BS-5020884SM
...
12
HSNG, ENG, FML BS-66365FGS
...
13
ROTOR ASSY BS-74713
...
14
BEARING BS-65791GS
...
15
BOLT, Rotor 5/16"-24 x 6.25" BS-24420
...
16
CARRIER, Rear Bearing BS-66825
...
17
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
18
CAP BS-5022097SM
...
19
BOLT, Stator- M8-1.00 x 80mm BS-66449C
...
20
LOCKWASHER- No. 8 BS-22264
...
21
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
22
DECAL- Receptacle Panel BS-72277
...
23
OUTLET, 20A,120V BS-68759GS
...
24
BREAKER, Circuit- 20 amp BS-66819
...
25
(C) WELD SEAT SUPPOR BS-7072092YP
...
26
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
27
FLATWASHER (Special) BS-67451
...
28
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
29
NUT, #8-32 BS-22471GS
...
30
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
31
LUG, Grounding BS-25433
...
32
SCREW (Taptite) No. 10-24 x 1/2" BS-24489
...
33
SCREW, Hex Head 5/16"-24 x 3/4" BS-22336
...
34
GROMMET, RUBBER BS-67022GS

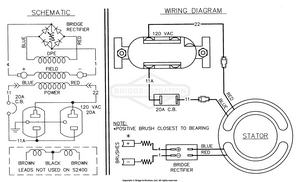

Wiring Diagram No. 74110

...

No Parts Available for this Schematic

...
...
...
