8968-1 Briggs and Stratton Portable Generator A2400

Model: 8968-1

Save
 Part Not Listed?Part Not Listed?
product name

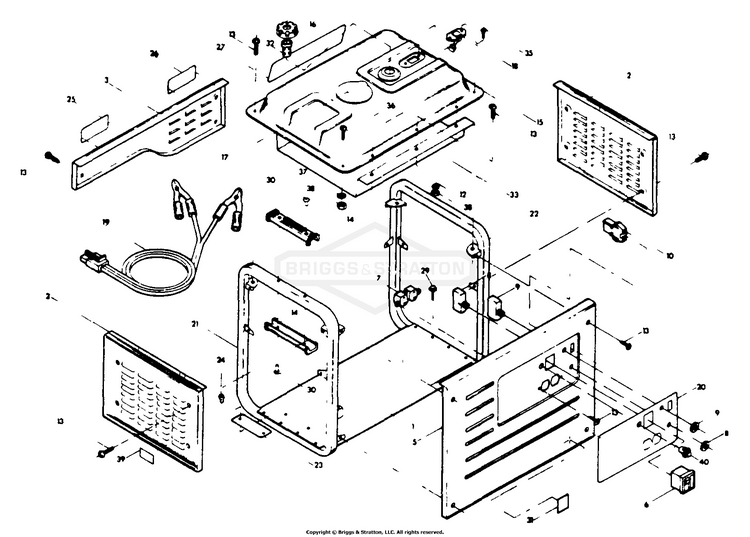

Cradle

...
...
1
SWIVEL BRAKE BS-7073015YP
...
2
PANEL, End BS-73011
...
3
SEAL 1.181 ID 1.850 BS-7073008YP
...
5
(C) DECAL CHOKE BS-7073003YP
...
6
SWITCH, ENG, CTRL, ILUM BS-66817GS
...
7
OUTLET, 20A,120V BS-68759GS
...
8
BREAKER, Circuit - 20 amp BS-66819
...
9
BREAKER, Circuit - 10 d-c amperes BS-66820
...
10
RECEPTACLE, Battery Charge - 12 volts d-c, 10 amp BS-6720730
...
12
VALVE, FUEL SHUT OFF BS-84010414
...
13
SCREW, Machine - No. 10-32 x 1/2" BS-23964
...
14
COVER, Handle BS-66450
...
15
TANK, Fuel - 2.34 U.S. Gallons BS-69661
...
16
CAP, Fuel Tank Filler BS-69658
...
17
CVR, ACC, SPARKPLUG BS-64680BGS
...
18
INDICATOR, Fuel Level BS-66391B
...
19
CABLE, BTTRY CHARGE BS-71394GS
...
20
DECAL - Receptacle Panel BS-73007B
...
21
CRADLE, Engine End BS-72275
...
22
(C) SHIELD DRIVE OFZ BS-7072276YP
...
23
PLATE Serial BS-67430E
...
24
RIVET, Serial Plate BS-25832
...
26
DECAL - Caution! Hot! BS-66824
...
27
DECAL - Data BS-73036B
...
29
SCREW (Crimptite) - 1/4"-20 x 3/8" BS-58441
...
30
RIVET - Black (Anodized) BS-66831
...
31
DECAL - Spark Arrest Muffler BS-29084
...
32
FILTER, Fuel BS-70630
...
33
SHIELD, Fuel Tank Heat BS-70630
...
35
SCREW, Machine - M5 - 0.80 x 12mm BS-52749
...
36
ROD-GOVERNOR CONTROL BS-593696
...
37
WASHER, #10 Ext. Shakeproof BS-23762GS
...
38
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
39
DECAL - Fuel Shutoff BS-73054
...
40
LIGHT, Indicator (LED) BS-71381
...
MANUAL-OPERATOR BS-73059GS

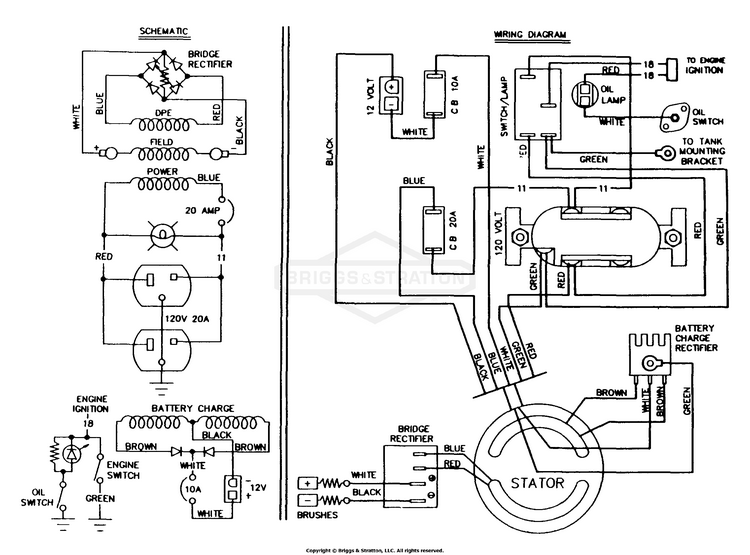

Electrical Schematic/Wiring Diagram

...

No Parts Available for this Schematic

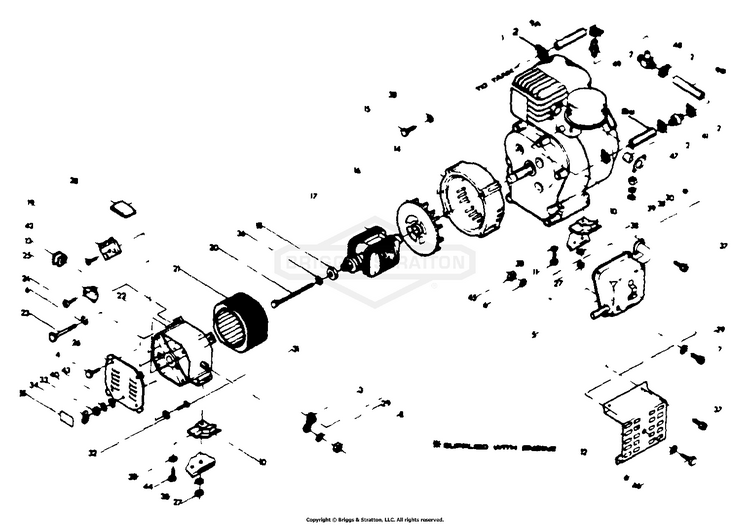

Generator

...
...
1
ENGINE-Briggs & Stratton 5 H.P. BS-71393
...
2
CLAMP, Fuel Line BS-48031C
...
3
BRACKET Exhaust Muffler Support BS-73019
...
4
TAPTITE, M5-0.8 X 8 BS-66849BGS
...
5
MUFFLER, Exhaust - Spark Arrestor Type BS-72281
...
6
CAP BS-5022097SM
...
7
CAPSCREW, Socket Head - 3/8" 16 x 1/2" BS-73032
...
8
CAPSCREW, Hex Head - M10 - 1.50 x 16mm BS-51755
...
9A
HOSE Fuel - 20" long BS-47662F
...
9B
HOSE Fuel - 17" long BS-47662AN
...
9C
HOSE Fuel - 3" long BS-47662B
...
10
MOUNT, Vibration 45°. BS-70642GS
...
11
SCREW, Pan Head - 5/16" - 18 x 1-3/4" BS-71752
...
12
HTSHLD, MFFLR BS-72292GS
...
13
GROMMET, RUBBER BS-67022GS
...
14
HOUSING, Engine Adapter BS-66365GS
...
15
CAPSCREW, Hex Head - 5/16" - 18 x 3/4" BS-22336
...
16
FAN, Cooling BS-66389
...
17
ROTOR BS-72064
...
18
BEARING BS-65791GS
...
19
RECTIFIER, BATTERY CHARGE BS-65795GS
...
20
HHCS, 5/16-24 X 6 3/8 BS-36180GS
...
21
STATOR BS-72061
...
22
CARRIER, Rear Bearing BS-66825
...
23
BOLT, Stator BS-66449B
...
24
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
25
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
26
COVER, Bearing Carrier BS-67025
...
27
SKID PLATE BS-5045771B
...
28
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
29
WASHER, Lock - M10 BS-46526
...
30
DECAL, ProCut Z Text BS-5022241
...
31
HHCS, M5-0.8 X 20 BS-52619GS
...
32
WASHER, Serrated - M5 BS-67444
...
33
NUT, M5 x 0.8 BS-51716GS
...
34
NUT, Wing - M5-0.80 BS-67435
...
35
DECAL, GRD BS-67210GS
...
36
WASHER, Flat - M8 (Special) BS-67451
...
37
CAPSCREW, Socket Head - 1/4"-20 x 1/2" BS-39974
...
38
WASHER, Lock BS-22129GS
...
39
WASHER, Flat-M8 BS-49610
...
40
WASHER, M5 Lock BS-49226GS
...
41
FILTER, FUEL, 150 MICRN BS-68740GS
...
42
SCREW BS-66849AGS
...
43
WASHER, #10 M5 Flat BS-23897GS
...
44
SCREW BS-70644GS
...
45
NUT Hex - 1/4"-20 BS-22127
...
46
SCREW BS-43146GS
...
47
LINER, Port BS-60211
...
48
VALVE, Fuel Shutoff BS-71384
...
49
FITTING, Barbed - 1/4" BS-28414
...
...
...
