8906-0 Briggs and Stratton Portable Generator L2400, 2,250 Watt

Model: 8906-0

Save
 Part Not Listed?Part Not Listed?
product name

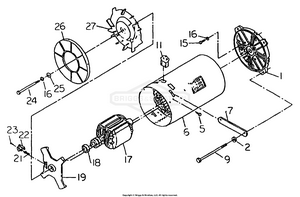

AC Generator No. 70647

...
...
1
HOUSING, Engine Adapter BS-43872A
...
2
CAP BS-5022097SM
...
5
SCREW (Taptite) - No. 10-32 x 3/8" BS-24489
...
6
STATOR ASSEMBLY - L2400 BS-68785A
...
7
BAR, Stator Bolt BS-44338
...
9
BOLT, Stator BS-44395A
...
11
RECTIFIER ASSEMBLY, Bridge BS-28293
...
15
CAPSCREW, Hex Head - 5/16"-24 x 3/4" BS-22336
...
16
WASHER, Lock BS-22129GS
...
17
ROTOR ASSEMBLY - L2400 BS-68784
...
18
BEARING, Rotor BS-24049
...
19
CARRIER, Bearing BS-44943
...
21
ASSY, BRUSH BS-A24044AGS
...
22
HLDR, BRUSH, UNIV BS-23877DGS
...
23
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
24
SCREW BS-24421GS
...
25
Washer, .34 x 1 x 10 BS-50190GS
...
26
CVR, FAN, PLSTC BS-44357GS
...
27
FAN, Cooling BS-44331

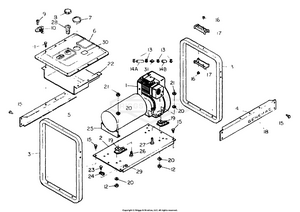

Mounting Base No. 70649

...
...
1
ENGINE- Briggs & Stratton 8 HP Manual Start BS-70632
...
2
BASE, Mounting BS-70635
...
3
LOOP, Cradle End BS-70637
...
4
SUPPORT, Fuel Tank - Right BS-70638A
...
5
SUPPORT, Fuel Tank - Left BS-70638
...
6
TANK, Fuel - 2.3 Gallons BS-69661
...
7
CVR, ACC, SPARKPLUG BS-64680BGS
...
8
CAP, Fuel Tank BS-69658
...
9
GAUGE, Fuel Level BS-66391B
...
10
SCREW - M5-0.80 x 12mm BS-52749
...
11
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
12
SKID PLATE BS-5045771B
...
13
CLAMP, Fuel Hose - 1/4" BS-48031C
...
14A
HOSE, Fuel - 7" long BS-47662BA
...
14B
HOSE, Fuel - 9" long BS-47662E
...
15
SCREW BS-58442
...
16
RIVET- 4mm BS-66831
...
17
HANDLE- Plastic BS-66450
...
18
DECAL- "GENERAC" Logo BS-48506
...
19
MOUNT, Vibration 45°. BS-70642GS
...
20
WASHER, Lock BS-22129GS
...
21
NUT, 5/16 - 18 BS-22259GS
...
22
SHIELD, Heat BS-66880
...
23
SCREW BS-24489
...
24
LUG, Grounding BS-25433
...
25
SUPPORT, Generator Rear BS-70634
...
26
SCREW, Pan Head - 5/16"-18 x 3/4" BS-64183
...
27
PPHMS, 5/16-18 X 1.50 BS-70653GS
...
28
STRAINER, Fuel BS-70630
...
29
DECAL, GRD LUG BS-67210AGS
...
30
DECAL- Fuel Caution BS-69674
...
31
FILTER, FUEL, 150 MICRN BS-68740GS

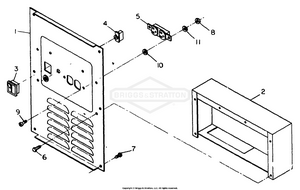

Receptacle Panel No. 70648

...
...
1
PANEL, Receptacle (Silkscreened) L2400 BS-70646
...
2
PANEL, Back BS-68746C
...
3
SWITCH, ENG, CTRL, ILUM BS-66817GS
...
4
BREAKER, Circuit - 20 ampere BS-66819
...
5
OUTLET, 20A,120V BS-68759GS
...
6
CRIMPTITE, #8-18X1/4L BS-63036GS
...
7
SCREW (Crimptite) - 1/4"-20 x 1/2" BS-69254
...
8
NUT, #8-32 BS-22471GS
...
9
SCREW BS-797483
...
10
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
11
WASHER, Lock - No. 8 BS-22264

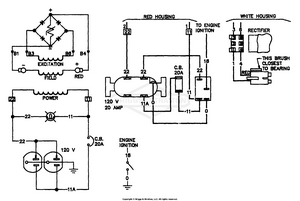

Wiring Diagram & Schematic No. 68729-B

...
