8882-0 Briggs and Stratton Portable Generator S3000T, 3,000 Watt

Model: 8882-0

Save
 Part Not Listed?Part Not Listed?
product name

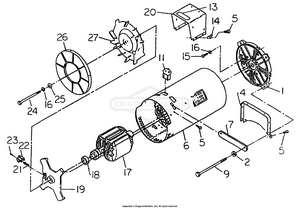

A-C Generator No. 68756

...
...
1
HOUSING, Engine Adapter BS-60220F
...
2
CAP BS-5022097SM
...
4
(C) WELD PIVOT ARM BS-7043874YP
...
5
SCREW (Taptite) - No. 10-32 x 3/8" BS-24489
...
6
STATOR ASSEMBLY BS-68754
...
7
BAR, Stator Bolt BS-44338
...
9
BOLT, Stator BS-44395A
...
11
RECTIFIER, Bridge BS-28293
...
13
DECAL - Data BS-68720A
...
14
LUG, Ground BS-25433
...
15
CAPSCREW, Hex Head - 5/16"-24 x 3/4" BS-22336
...
16
WASHER, Lock BS-22129GS
...
17
ROTOR ASSEMBLY BS-68753
...
18
BEARING, Rotor BS-24049
...
19
CARRIER, Bearing BS-44943
...
20
(C) WELD SHAFT BRAK BS-7043875YP
...
21
ASSY, BRUSH BS-A24044AGS
...
22
HLDR, BRUSH, UNIV BS-23877DGS
...
23
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
24
SCREW BS-24421GS
...
25
Washer, .34 x 1 x 10 BS-50190GS
...
26
CVR, FAN, PLSTC BS-44357GS
...
27
FAN BS-44331

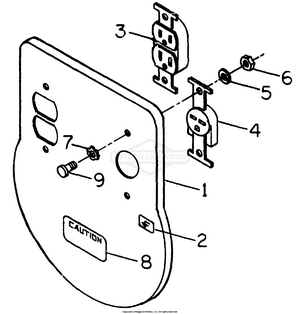

Control Panel No. 68721

...
...
1
PANEL, Receptacle BS-44328ZZ
...
2
DECAL, GRD BS-67210GS
...
3
OUTLET, Duplex, 120 V, 15 A BS-63025GS
...
4
RECEPTACLE - 240 volts a-c, 20 ampere BS-68735
...
5
WASHER, Lock - No. 8 BS-22264
...
6
NUT, #8-32 BS-22471GS
...
7
WASHER, Serrated - No. 8 BS-26579
...
8
DECAL - Caution! BS-39178
...
9
SCREW BS-797483

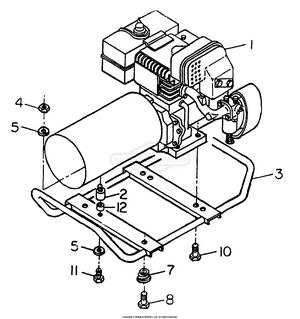

Cradle No. 68722

...
...
1
ENGINE- Tecumseh 8 horsepower BS-67496
...
2
DAMPENER, Vibration BS-40479
...
3
CRADLE ASSEMBLY BS-68395B
...
4
NUT, Hex - 1/4"-20 BS-22127
...
5
CAP BS-5022097SM
...
7
SPRING- Plain BS-23594
...
8
CAPSCREW, Taptite- 5/16"-18 x 1/2" BS-24910
...
10
SCREW (Taptite)- 3/16"-18 x 3/4" BS-59637
...
11
SCREW- 1/4"-20 x 3/8" BS-36949
...
12
SPACER- 1/2" long BS-22550J
...
13
CAPSCREW, Taptite- 5/16"-18 x 1" BS-24490

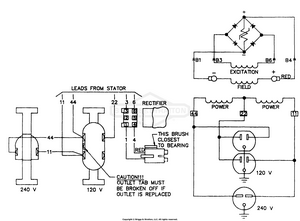

Electrical Schematic & Wiring Diagram No. 68702

...

No Parts Available for this Schematic

...
...
...
