8871-0 Briggs and Stratton Portable Generator 4,000 Watt

Model: 8871-0

Save
Part Not Listed?Part Not Listed?
product name

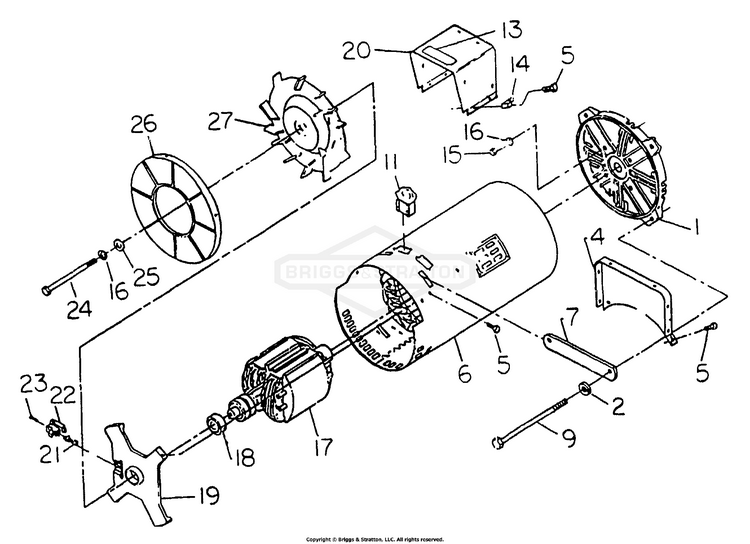

AC Generator No. 68713

...
...
1
HOUSING, Engine Adapter BS-43873


...
4
(C) WELD PIVOT ARM BS-7043874YP

...
5
SCREW (Taptite) - No. 10-32 x 3/8" BS-24489

...
6
STATOR BS-66851

...
7
BAR, Stator Bolt BS-44338

...
9
BOLT, Stator BS-44395H

...
11
RECTIFIER, Bridge BS-28293

...
13
DECAL - Data BS-68720

...
14
LUG, Grounding BS-25433

...
15
CAPSCREW, Hex Head - 5/16"-24 x 3/4" BS-22336

...
16
WASHER, Lock BS-22129GS

...
17
ROTOR BS-68397

...
18
BEARING, Rotor BS-24049

...
19
CARRIER, Bearing BS-44943

...
20
(C) WELD SHAFT BRAK BS-7043875YP

...
21
ASSY, BRUSH BS-A24044AGS

...
22
HLDR, BRUSH, UNIV BS-23877DGS

...
23
PRHMS, 6-32 x 1/4 SEMS BS-25105GS

...
24
HHCS, 5/16" - 24 x 7-7/8" BS-24823GS

...
25
Washer, .34 x 1 x 10 BS-50190GS

...
26
CVR, FAN, PLSTC BS-44357GS

...
27

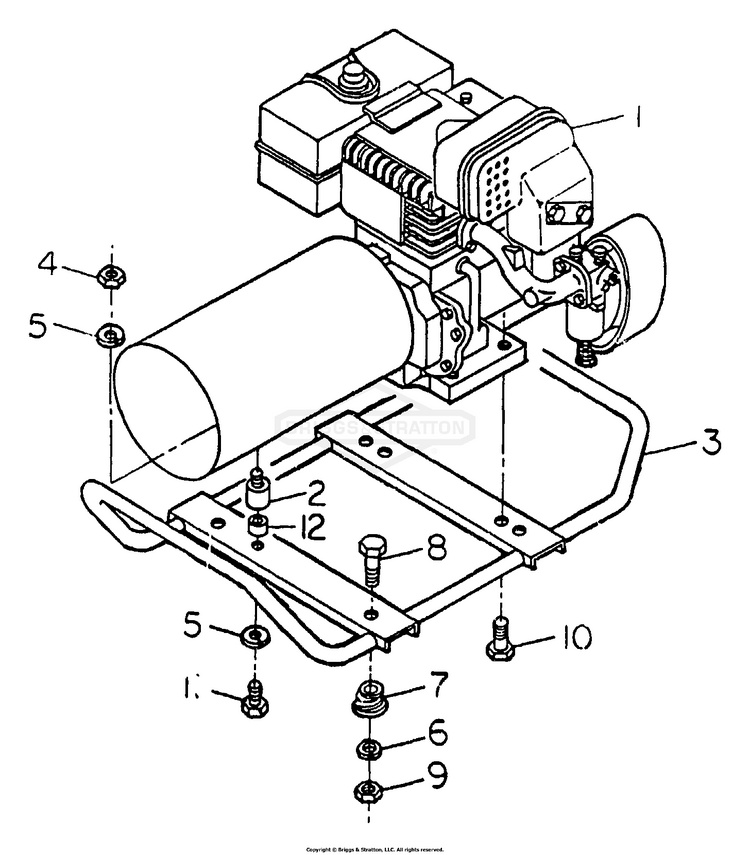

Cradle No. 68715

...
...
1
ENGINE - Briggs & Stratton 8 Horsepower BS-68701

...
2
DAMPENER, Vibration BS-40479

...
3
CRADLE BS-68395A

...
4
NUT, Hex - 1/4"-20 BS-22127


...
6
WASHER, Lock BS-22129GS

...
7
SPRING (Plain) BS-23594

...
8

...
9
NUT, 5/16 - 18 BS-22259GS

...
10
SCREW (Taptite) - 3/16"-18 x 3/4" BS-59637

...
11

...
12
SPACER - 9/16" long BS-50396

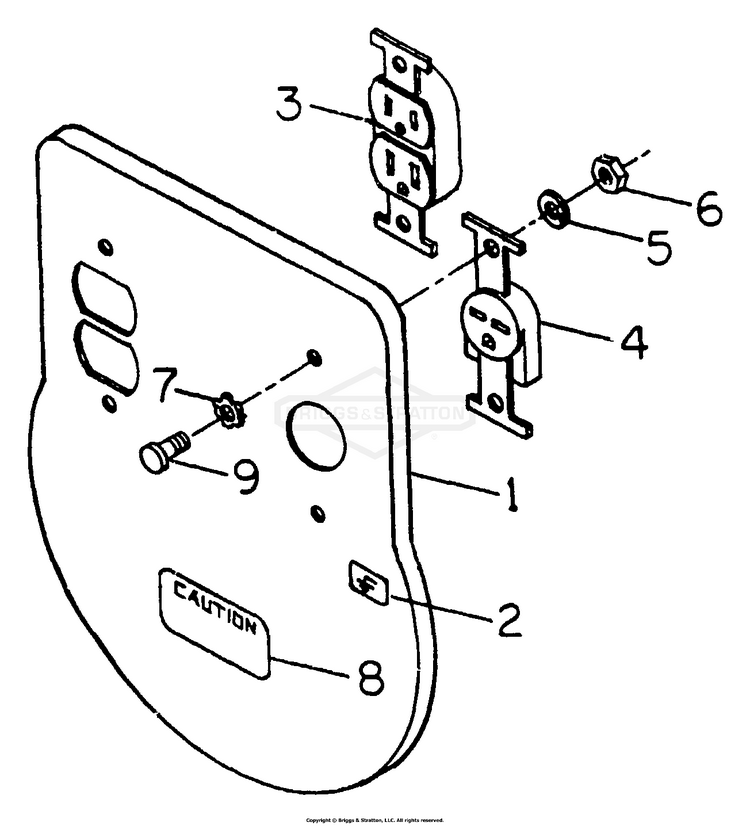

Receptacle Panel No. 68721

...
...
1
PANEL, Receptacle BS-44328ZZ

...
2
DECAL, GRD BS-67210GS

...
3
OUTLET, Duplex, 120 V, 15 A BS-63025GS

...
4
RECEPTACLE- 120 volts a-c, 15 ampere BS-68735

...
5
WASHER, Lock- No. 8 BS-22264

...
6
NUT, #8-32 BS-22471GS

...
7
WASHER, Serrated- No. 8 BS-26579

...
8
DECAL- Caution! BS-39178

...
9

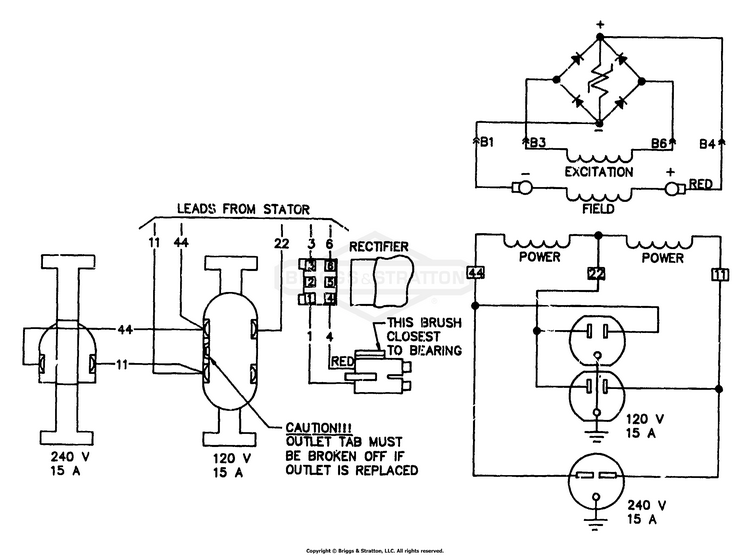

Wiring Diagram/Electrical Schematic No. 68702

...

No Parts Available for this Schematic

...
...
...
