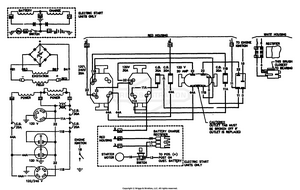

Electrical Schematic/Wiring Diagram

...

No Parts Available for this Schematic

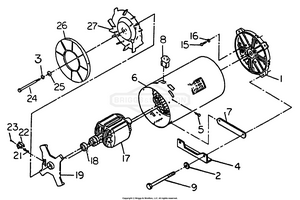

Generator

...
...
1
HOUSING, Adapter BS-43873
...
2
CAP BS-5022097SM
...
3
WASHER, Lock BS-22129GS
...
4
SUPPORT, Rear Generator BS-44392B
...
5
SCREW- No. 10-32 x 3/8" BS-24489
...
6
STATOR ASSY (L4000) BS-68749D
...
STATOR ASSY (L4000E) BS-68749E
...
7
BAR, Stator Bolt BS-44338
...
8
RECTIFIER, Bridge BS-28293
...
9
BOLT, Stator BS-44395B
...
15
WHEEL ASSEMBLY BS-84010756
...
16
LOCKWASHER, SPLIT 3/8 BS-703454
...
17
ROTOR ASSY BS-68748B
...
18
BEARING, Rotor BS-24049
...
19
CARRIER, Bearing BS-44943
...
21
ASSY, BRUSH BS-A24044AGS
...
22
HLDR, BRUSH, UNIV BS-23877DGS
...
23
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
24
NUT BS-5025254FS
...
25
Washer, .34 x 1 x 10 BS-50190GS
...
26
CVR, FAN, PLSTC BS-44357GS
...
27
FAN, Cooling BS-44331

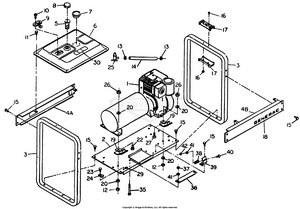

Mounting Base

...
...
1
ENGINE-Briggs & Stratton 8 HP Manual Start Series L4000 Only (Model 190412-3077-01) BS-68858
...
ENGINE-Briggs & Stratton 8 HP Electric Start Series L4000E Only (Model 190415-3076-01) BS-68859
...
2
BASE, Mounting (L4000 and L4002 Only) BS-70643
...
BASE, Mounting (L4000E Only) BS-70643A
...
3
LOOP, Cradle End BS-70603
...
4A
SUPPORT, Fuel Tank - LH BS-70636
...
4B
SUPPORT, Fuel Tank - RH BS-70636A
...
5
STRAINER, Fuel Fill BS-70630
...
6
TANK, Fuel-4.5 U.S. Gallons (17 liters) BS-69662
...
7
CVR, ACC, SPARKPLUG BS-64680BGS
...
8
CAP, Fuel Tank BS-69658
...
9
GAUGE, Fuel Level BS-66391B
...
10
SCREW, M5-0.80 x 12mm BS-52749
...
11
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
12
SKID PLATE BS-5045771B
...
13
CLAMP, Hose- 1/4" diameter BS-47031C
...
14
HOSE, Fuel - 1/4" ID x 12" long BS-47662AE
...
15
SCREW (Crimptite)- 1/4"-20 x 1/2" BS-58442
...
16
RIVET-4mm BS-66831
...
17
HANDLE (Plastic) BS-66450
...
18
DECAL- "Generac" BS-56318A
...
19
MOUNT, Vibration 45°. BS-70642GS
...
20
WASHER, Lock BS-22129GS
...
22
SCREW, Pan Head - 5/16"-18 x 3/4" BS-64183
...
23
SCREW (Taptite) - No. 10-32 x 3/8" BS-24489
...
24
LUG, Grounding BS-25433
...
25
VLV, SHUT OFF BS-27734GS
...
26
NUT, 5/16 - 18 BS-22259GS
...
27
PPHMS, 5/16-18 X 1.50 BS-70653GS
...
29
DECAL, GRD LUG BS-67210AGS
...
30
DECAL - "Caution" BS-70687
...
35
HHCS, 1/4-20 X 7 Used only on L4000E (Electric Start) units BS-45000GS
...
36
CONTROL, Hydro, Right Used only on L4000E (Electric Start) units BS-5044951B
...
37
NUT, Hex Lock - 1/4"-20 Used only on L4000E (Electric Start) units BS-27529
...
38
CONTACTOR, START, PUSH Used only on L4000E (Electric Start) units BS-53030GS
...
39
BRACKET, Starter Contactor Used only on L4000E (Electric Start) units BS-65121
...
40
BOLT, 1/4-20 X 3/4" G Used only on L4000E (Electric Start) units BS-5025010X6SM
...
41
CAP Used only on L4000E (Electric Start) units BS-5022097SM
...
42
NUT, Hex - 1/4"-20 Used only on L4000E (Electric Start) units BS-22127

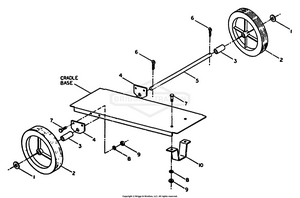

Wheel Kit

...
...
1
Washer, Flat 1/2 BS-22304GS
...
2
WHEEL-10" Diameter BS-52597
...
3
SPACER, Wheel-1" long BS-39712B
...
4
BRACKET, Axle BS-67212
...
5
AXLE- 1/2" x 19.25" long BS-60564C
...
6
PIN, COTTER, 3/32-1 BS-22268GS
...
7
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
8
CAP BS-5022097SM
...
9
NUT, Hex - 1/4"-20 BS-22127
...
10
LEG, Support BS-68885
...
...
...
