8772-0 Briggs and Stratton Portable Generator G1450 1,350 Watt

Model: 8772-0

Save
 Part Not Listed?Part Not Listed?
product name

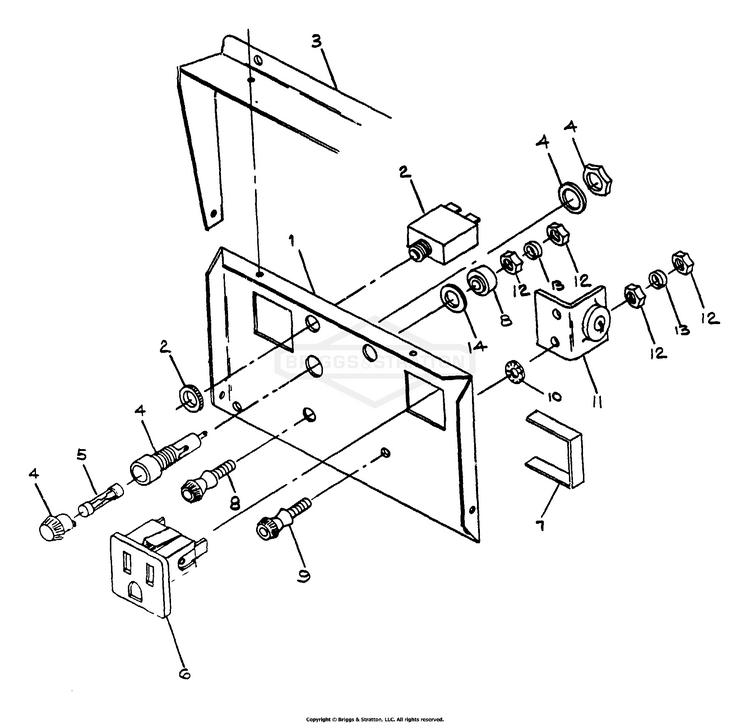

Control Panel No. 61795

...
...
1
PANEL, Control (without Circuit Breakers) BS-61484A
...
PANEL, Control (with Circuit Breakers) BS-61484C
...
2
BREAKER, Circuit BS-56286
...
3
HOOD, Drip BS-61485A
...
4
HOLDER, Fuse BS-22669
...
5
FUSE - 30 Ampere BS-22668
...
6
SWITCH, PTO, DPDT BS-7022693YP
...
7
RETAINER, 120 Volts Receptacle BS-27272
...
8
TERMINAL, BTTRY CHG, RED BS-25367GS
...
9
POST, Battery Charge Terminal (Black) BS-25368
...
10
WASHER, Shakeproof BS-26579
...
11
WHEEL AXLE BS-5045992SM
...
12
NUT, #8-32 BS-22471GS
...
13
WASHER, Lock - No. 8 BS-22264
...
14
WASHER, Fiber BS-30798
...
CABLE, Battery Charging BS-A25383

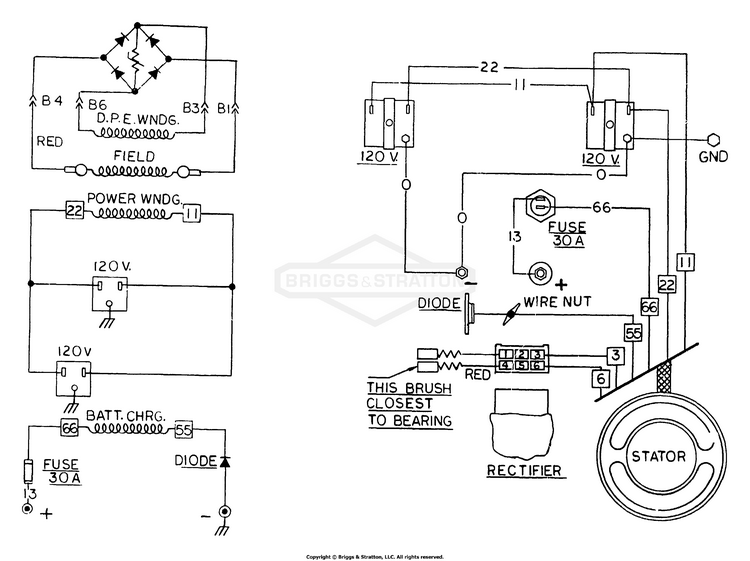

Electrical Schematic/Wiring Diagram No. 62006

...

No Parts Available for this Schematic

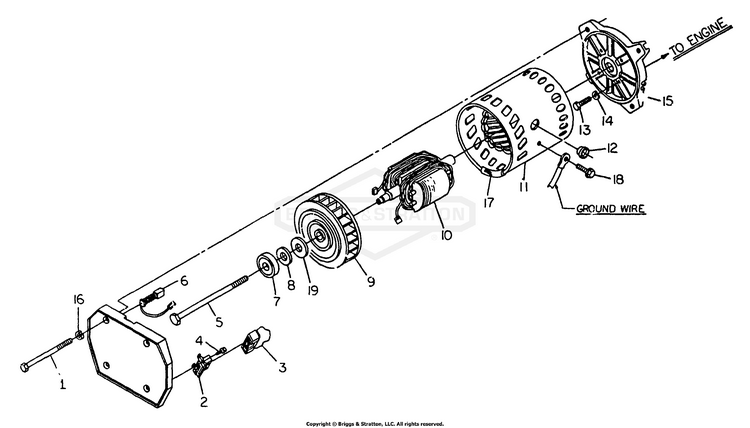

Generator No. 63156

...
...
1
BOLT, Stator BS-44395E
...
2
HOUSING, Receptacle BS-22694GS
...
3
ASSEMBLY, Bridge Rectifier BS-28293
...
4
SCREW - No. 4 x 3/8" BS-59636
...
5
BOLT, Rotor BS-58885A
...
6
BRUSH - Red or Positive BS-59606
...
BRUSH - Neutral BS-59606A
...
7
BEARING BS-24049
...
8
FAN, LOADING WSHR BS-58886GS
...
9
FAN, Cooling BS-58868
...
10
ASSEMBLY, Rotor and Fan - 1350 Watt Units BS-61798
...
11
BUSHING, .510 X .625 BS-5061780SM
...
12
BUSHING, Snap BS-23484D
...
13
CAPSCREW, Hex Head - 5/16"-24 X 3/4" BS-22336
...
14
WASHER, Lock BS-22129GS
...
15
HOUSING, Engine Adapter BS-43872A
...
16
CAP BS-5022097SM
...
17
TRIM, Rubber - 3-1/2" long BS-61876
...
18
SCREW (Crimptite)- No. 10-24 x 3/8" BS-24489
...
...
...
