8751-1 Briggs and Stratton Portable Generator G4050, 4,000 Watt

Model: 8751-1

Save
 Part Not Listed?Part Not Listed?
product name

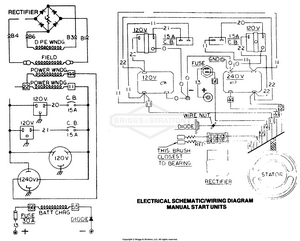

Electrical Schematic And Wiring Diagram Manual Start Units

...

No Parts Available for this Schematic

Generator No. 61797

...
...
1
BOLT, (G4050 Only) BS-44395H
...
2
HOUSING, Receptacle BS-22694GS
...
3
RECTIFIER, Bridge BS-28293
...
4
SCREW - No. 4 x 3/8" BS-59636
...
5
BOLT, Rotor (G4050 Only) BS-58885B
...
6
BRUSH. (Red) - Positive BS-59606
...
BRUSH - Neutral BS-59606A
...
7
BEARING BS-24049
...
8
FAN, LOADING WSHR BS-58886GS
...
9
FAN, Cooling BS-58868
...
10
ASSEMBLY, Rotor and Fan (G4050 Only) BS-59625
...
11
(C) 20 TURF TIRE DEC BS-7063098YP
...
12
BUSHING, Snap BS-23484D
...
13
CAPSCREW, Hex Head - 5/16"-24 x 3/4" BS-22336
...
14
WASHER, Lock BS-22129GS
...
15
HOUSING, Engine Adapter (G4050 Only) BS-60220E
...
16
NUT, Lock - 1/4"-20 BS-50993
...
17
TRIM, Vinyl - 3 1/2" Long BS-56326
...
18
SCREW (Crimtite) No. 10-24 x 3/8" BS-24489

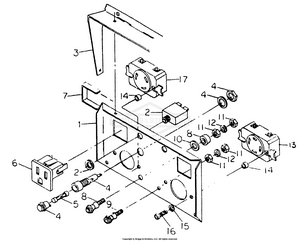

Panel Manual Start Units No. 62002

...
...
1
PANEL BS-61794B
...
2
BREAKER, Circuit - 15 Ampere BS-56286
...
3
HOOD, Panel BS-61485B
...
4
HOLDER, Fuse BS-22669
...
5
FUSE - 30 Ampere BS-22668
...
6
SWITCH, PTO, DPDT BS-7022693YP
...
7
RETAINER, Receptacle BS-27272
...
8
TERMINAL, BTTRY CHG, RED BS-25367GS
...
9
POST, Battery Charge (Black) BS-27368
...
10
WASHER (Fiber) BS-30798
...
11
NUT, #8-32 BS-22471GS
...
12
WASHER, Lock - No. 8 BS-22264
...
13
PLUG-120/240V TL20A BS-100522GS
...
14
WSHR, NYLON, .14 X .37 X .06 BS-25909GS
...
15
PULLEY, PUMP DRIVE BS-5022155SM
...
16
SCREW - No. 6-32 x 3/8" BS-36901
...
17
RECEPTACLE - 120 Volts, 30 Ampere BS-37807
...
CABLE ASSEMBLY, Battery Charging BS-A25383
...
PLUG, 125V 30A 3-Prong BS-100523GS
...
PLUG-120/240V TL20A BS-100522GS

Sheet Metal Manual Start Units No. 65127

...
...
1
ENGINE - 8 HP, Manual Start BS-61473
...
2
CAPSCREW, Socket Head - 5/16"-18 x 3/4" BS-60706
...
3
MUFFLER, Exhaust (with Spark Arrestor) BS-58196
...
4
SCREW, Sheet Metal - No. 8 x 3/8" BS-22774
...
5
SCREEN, Spark Arrestor BS-59604
...
6
CRADLE ASSEMBLY BS-65115
...
7
PAN, Base BS-65389
...
8
WRAPPER, Lower Generator BS-58876B
...
9
MODULE BS-84009650
...
10
NUT, Hex - 1/4"-20 BS-22127
...
11
PANEL, End BS-61771
...
12
PANEL, End BS-61762
...
13
BAFFLE, Generator Air (Left) BS-58887B
...
14
BAFFLE, Generator Air (Right) BS-58887C
...
15
WRAPPER, Upper Generator BS-61763B
...
16
COVER, Muffler and Head BS-58884
...
20
GSKT, EXHAUST BS-58894GS
...
21
ADAPTER, Generator Sheet Metal BS-60209
...
22
SCREW - No. 8 x 3/8" BS-59635
...
23
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
24
WASHER, Lock BS-22129GS
...
25
SCREW - 1/4" x 1" BS-59634
...
26
WHEEL AXLE BS-5045992SM
...
27
SCREW - No. 10-32 x 3/8" BS-36933
...
28
VALVE, FUEL SHUT OFF BS-84010414
...
29
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
42
SUPPORT, Rear BS-65164
...
43
CAPSCREW, 1/4-20X1.5 BS-703234
...
44
CAP BS-5022097SM
...
45
CAPSCREW - 5/16"-18 x 1 1/4" BS-22128
...
46
CLAMP BS-40158
...
47
NUT, Lock - 1/4"-20 BS-50993
...
48
Decal, UltraBelt, 36 BS-5022507
...
...
...
