5559-0 Briggs and Stratton Portable Generator C5010, 5,000 Watt

Model: 5559-0

Save
 Part Not Listed?Part Not Listed?
product name

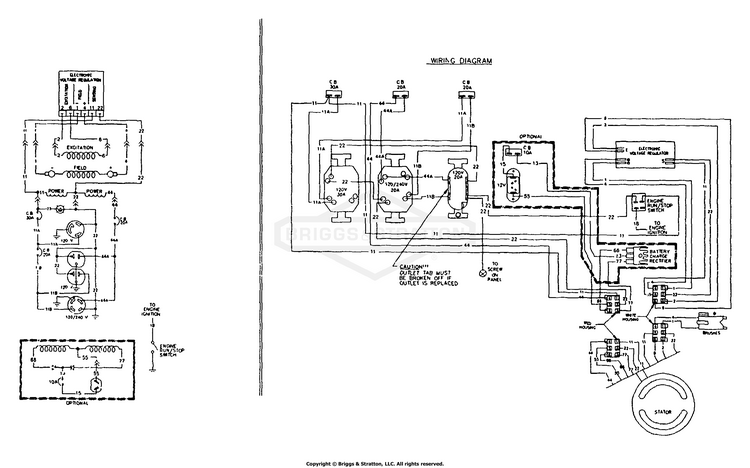

Electrical Schematic & Wiring Diagram

...

No Parts Available for this Schematic

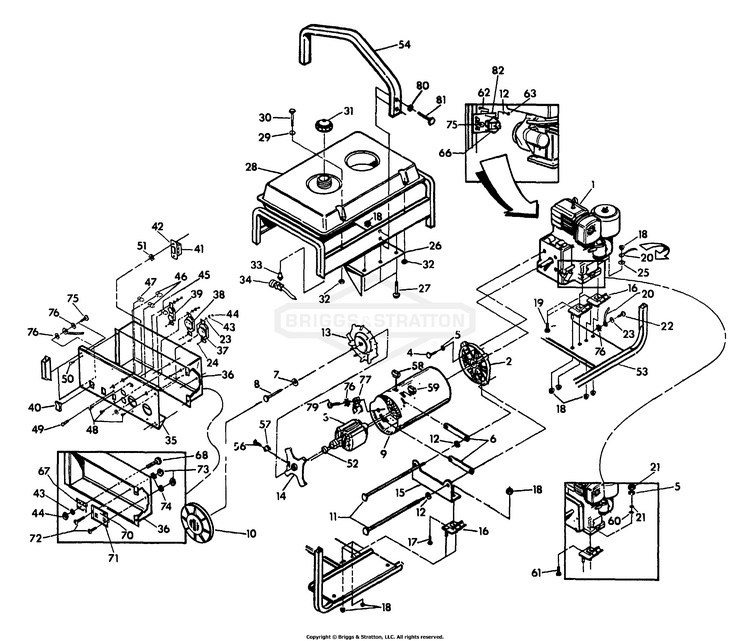

Generator

...
...
1
ENG. BRIGGS & STRATTON 11HP. BS-79557
...
ENG. B & S 11HP. ELECT. START BS-78849
...
2
ADAPTOR HOUSING-LONG BS-43873
...
3
ROTOR ASSEMBLY BS-68794
...
4
SCR., HEX HD.-5/16"-24 x 3/4" BS-22336
...
5
WASHER, Lock BS-22129GS
...
WASHER, Lock BS-22129GS
...
6
STATOR BOLT BAR BS-44338
...
7
Washer, .34 x 1 x 10 BS-50190GS
...
8
NUT BS-5025254FS
...
9
STATOR ASSEMBLY-C5000 BS-79805
...
STATOR ASSEM.-C5000 ELE. START BS-79805A
...
10
HANDLE, Lower BS-7078246AYP
...
11
STATOR BOLT 11.87 LONG BS-44395B
...
12
CAP BS-5022097SM
...
CAP BS-5022097SM
...
13
ALT. FAN PLASTIC BS-44331
...
14
BEARING CARRING PLATE BS-44943
...
15
REAR ALT. SUPPORT-2.22 LONG BS-70634A
...
16
MOUNT, Vibration 45°. BS-70642GS
...
17
SCREW BS-70644GS
...
18
FLANGE NUT-LOCK-M8-1.25 BS-52853
...
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
19
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
20
GROUND WIRE-4" LONG BS-10953621
...
21
NUT, 5/16 - 18 BS-22259GS
...
22
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
23
WASHER BS-38150GS
...
24
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
25
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
26
(C) SPRING TIGHTENER BS-7079803YP
...
27
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
28
GAS TANK-PLASTIC 5 GAL. BS-77374
...
29
WASHER, SPECIAL-BLACK BS-77830
...
30
CAPSCR., HEX HD.-M6 x 35MM BLACK BS-79816
...
31
CAP, FUEL TANK BS-78824
...
32
NUT, FLANGE LOCK - M6 BS-77395GS
...
33
Kit, Valve BS-192980GS
...
34
PULLEY CATCHER HZT/ BS-7078298YP
...
35
CONTROL PANEL PLAIN BS-79800
...
PANELBATTERY CHARGE BS-79809
...
36
(C) BEARING BALL 25 BS-7046555YP
...
37
OUTLET-120V TL30A BS-705932
...
38
OUTLET, 120/240V Locking, 20A BS-68867GS
...
39
OUTLET 120VOLT 20AMP. DUPLEX BS-68795
...
40
ENGINE RUN/STOP SWITCH BS-77263
...
41
OUTLET BATTERY CHARGE BS-68821
...
42
OUTLET, RETAINER BS-68822
...
43
LOCK WASHER-#8 BS-22264
...
44
NUT, M4-0.7 Hex BS-51715GS
...
45
BREAKER-CIRCUIT 30A BS-706178
...
46
BREAKER-CIRCUIT 20A BS-209872GS
...
47
BRKR, CRCT, 10A BS-75207BGS
...
48
SCREW, PAN HEAD-M4-0.7 x 10 BS-75475
...
49
SCREW, M3-0.5 x 10mm BS-43181GS
...
50
CRIMPTITE, #8-18X1/4L BS-63036GS
...
51
WHEEL, 12 X 8.5 BS-5023364YP
...
WHEEL, 12 X 8.5 BS-5023364YP
...
52
BEARING, ROTOR BS-24049
...
53
CRADLE-5KW BS-79623
...
CRADLE-5KW ELECT. START BS-79623
...
54
LIFTING BAR-C5000 BS-78509
...
56
BRUSH HOLDER ASSEMBLY BS-44723
...
57
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
58
HOUSING, Receptacle BS-22694GS
...
59
RECEPTACLE HS6-RED BS-43994
...
60
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
61
PPHMS, 5/16-18 X 2 BS-71729GS
...
66
STARTER SWITCH BS-77282
...
67
RECTIFIER, BATTERY CHARGE BS-65795GS
...
68
PPHMS.-M4-0.7 x 20 BS-70439
...
69
REGULATOR HOLD DOWN BS-68796
...
70
REGULATOR, VOLT BS-67107GS
...
71
REGULATOR BRACKET BS-68795
...
72
PHILLIPS PAN HD. MACH. SCR. #6-32 x 3/8" LONG BS-36901
...
73
HEX NUT-#6-23 BS-22188
...
75
SCREW, SELF DRILL #10 x 5/8 BS-75494
...
SCREW, SELF DRILL #10 x 5/8" BS-75494
...
76
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
77
GROUND LUG BS-25433
...
79
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
81
SCREW BS-39287GS
...
82
BRACKET, STARTER SWITCH BS-78289GS
...
...
...
