5532-0 Briggs and Stratton Portable Generator C2413, 2,400 Watt

Model: 5532-0

Save
 Part Not Listed?Part Not Listed?
product name

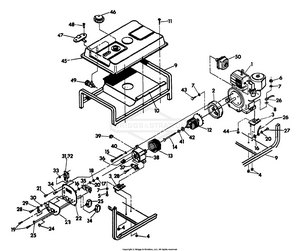

AC Generator

...
...
1
ENGINE-BRIGGS & STRATTON 5HP. BS-78265
...
2
HSNG, ENG, FML BS-66365FGS
...
3
MOUNT, Vibration 45°. BS-70642GS
...
4
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
5
SCREW BS-70644GS
...
6
SKID PLATE BS-5045771B
...
7
WASHER, Lock BS-22129GS
...
8
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
9
CRADLE BS-78821
...
10
HEAT SHIELD BS-78956
...
11
SCREW, SELF DRILL #10 BS-75494
...
12
ROTOR ASSEMBLY BS-74713
...
13
STATOR ASSEMBLY BS-77258
...
14
ROTOR BOLT, 5/16"-24 x 6.25" BS-24420
...
15
STATOR BOLT, M6-1.0 x 80 BS-66449C
...
16
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
17
NUT, M4-0.7 Hex BS-51715GS
...
18
LOCK WASHER #8 BS-22264
...
19
SCREW, PAN HD. M4-0.7 x 10 BS-75475
...
20
WASHER BS-38150GS
...
21
(C) BRKT LIMITER OU BS-7074808YP
...
22
WEIGHT 27X5X1/4 BS-7078288YP
...
(C) WELD SEAT SUPPOR BS-7072092YP
...
23
DECAL BS-78287
...
DECAL BS-78285
...
24
BRKR, CRCT, 20A, 2P BS-77247GS
...
25
BRKR, CRCT, 10A, 2P BS-77247AGS
...
26
GROUND WIRE BS-10953621
...
27
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
28
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
29
GROUNDING LUG BS-25433
...
30
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
31
OUTLET, 12 V DC BS-66821GS
...
32
OUTLET, 12Volt DC (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418 BS-66822GS
...
33
SCREW, M3-0.5 x 10mm BS-43181GS
...
34
SCREW, PAN HD. M3-0.05 x 5 BS-70728
...
35
OUTLET, 20A,120V BS-68759GS
...
36
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
37
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
38
REAR BEARING CARRIER BS-66825
...
39
GROMMET, RUBBER BS-67022GS
...
40
CAP BS-5022097SM
...
41
FLAT WASHER SPECIAL-M8 BS-67451
...
42
BEARING BS-65791GS
...
43
SCREW, HEX-5/16"-24 x 3/4" BS-22336
...
44
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
45
(C) BEARING PNEUMAT BS-7077353YP
...
46
CAP, FUEL TANK BS-69658
...
47
GAUGE, FUEL LEVEL BS-66391B
...
48
SCREW, PAN HEAD-M5-0.8 x 12 BS-52749
...
49
VALVE, SHUTOFF BS-71384
...
50
MFFLR, 5 HP, B&S BS-79709GS
...
AIR LIFT KIT, EURO 21 BS-7061782YP

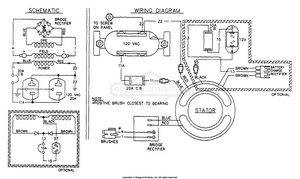

Electrical Schematic & Wiring Diagram

...

No Parts Available for this Schematic

...
...
...
