product name

1974-0 Briggs and Stratton Pressure Washer 2,100 PSI

Model: 1974-0

Save
 Part Not Listed?Part Not Listed?
product name

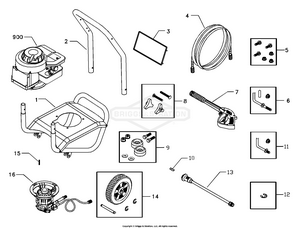

Main Unit

...
...
1
BASE BS-192419GS
...
2
HANDLE BS-B191874GS
...
3
BILLBOARD BS-191909GS
...
4
HOSE BS-190249GS
...
5
KIT, Pump Mounting Hardware BS-192525GS
...
6
KIT, Hook, Handle BS-194264GS
...
7
GUN BS-190132GS
...
8
KIT, Handle Connector BS-B2203GS
...
9
KIT,Vibration Mount BS-192310GS
...
10
ORIFICE BS-21760GS
...
11
KIT, Hook BS-192309GS
...
12
RETAINER, RING, 1/2 BS-703976
...
13
WAND-ADJUSTABLE BS-205015CGS
...
14
KIT,Wheel BS-192311GS
...
15
KEY BS-23139GS
...
16
Assy, Pump (See "Pump") BS-206383GS
...
900
ENGINE BS-~NSP
...
MANUAL, Owner's Not Illustrated BS-193729GS
...
KIT, Decals Not Illustrated BS-193911GS
...
BOTTLE, Oil Not Illustrated BS-100005

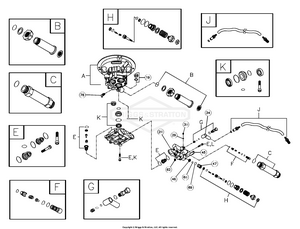

Pump

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190627GS
...
29
KIT, PIPE FITTING BS-193971GS
...
30
KIT, PIPE FITTING BS-193971GS
...
34
CONNECTION, Chemical Inlet BS-190577GS
...
45
PIN BS-190578GS
...
46
VALVE, Seat Plate, Plastic BS-190629GS
...
47
VALVE, Seat, Plastic BS-190630GS
...
62
CAP BS-190581GS
...
68
KIT, UNLOADER SEAT BS-193972GS
...
69
KIT, UNLOADER SEAT BS-193972GS
...
76
VALVE, Thermal Relief BS-208673GS
...
A
ASSY, CASE, PISTON BS-~NSP
...
B
KIT,WATER INLET,ALUM Service kit includes all parts shown within the box. BS-190632GS
...
C
FITTING Service kit includes all parts shown within the box. BS-201497GS
...
E
KIT,CHECK VALVES Service kit includes all parts shown within the box. BS-190591GS
...
F
KIT, INLET CHECK Service kit includes all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kit includes all parts shown within the box. BS-190593GS
...
H
KIT, UNLOADER STEM Service kit includes all parts shown within the box. BS-190628GS
...
J
KIT, CHEMICAL HOSE Service kit includes all parts shown within the box. BS-189971GS
...
K
KIT, SEAL SET Service kit includes all parts shown within the box. BS-190636GS
...
...
...
