1937-0 Briggs and Stratton Pressure Washer 2,800 PSI CS

Model: 1937-0

Save
 Part Not Listed?Part Not Listed?
product name

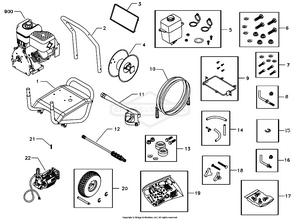

Main Unit

...
...
1
BASE BS-192772GS
...
2
HANDLE BS-B191874GS
...
3
BILLBOARD BS-191909GS
...
4
KIT, Hose Reel (Includes Item 19) BS-192648GS
...
5
KIT, Chemical Tank BS-192773GS
...
6
KIT, Engine Mounting Hardware BS-192797GS
...
7
KIT, Pump Mounting Hardware BS-192131GS
...
8
KIT, Hook, Handle BS-194264GS
...
9
KIT,Wireform BS-192774GS
...
10
HOSE-PRESSURE BS-206192GS
...
11
GUN BS-B3263GS
...
12
EXTENSION BS-192199GS
...
13
KIT,Vibration Mount BS-192310GS
...
14
KIT-CHEMICAL HOSE BS-707412
...
15
E-RING BS-703977
...
16
KIT, Hook BS-192309GS
...
17
KIT, Spray Tip BS-B5646GS
...
18
KIT, Handle Connector BS-B2203GS
...
19
KIT, Hose Reel Mounting Hardware BS-186113GS
...
20
KIT,Wheel BS-192317GS
...
21
KEY BS-23139BGS
...
22
Assy, Pump (See "Pump") BS-202005GS
...
900
ENGINE BS-~NSP
...
MANUAL, Owner's Item Not Illustrated BS-192666GS
...
KIT, Decals Item Not Illustrated BS-192776GS
...
BOTTLE, Oil Item Not Illustrated BS-100005

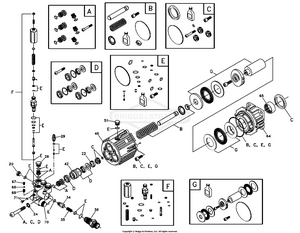

Pump

...
...
20
PLUG BS-190638GS
...
22
SPACER BS-190639GS
...
24
WASHER BS-190640GS
...
26
PLUG BS-190641GS
...
29
HOSE TAIL BS-190642GS
...
34
JET BS-190643GS
...
35
SPRING BS-190644GS
...
38
INJECTOR, Detergent BS-190645GS
...
42
PISTON, Guide BS-190646GS
...
48
HOUSING BS-190647GS
...
51
PLUG-DRAIN BS-203034GS
...
64
FLANGE BS-190649GS
...
65
ROLLER BEARING BS-190650GS
...
67
GRUB SCREW BS-190651GS
...
68
BALL BS-190652GS
...
69
SPRING BS-190653GS
...
70
PUMP HEAD BS-190654GS
...
71
GRUB SCREW & WASHER BS-190655GS
...
72
OIL BOTTLE BS-190656GS
...
A
KIT, CHECK VALVE Service kit and includes all parts shown within the box. BS-190657GS
...
B
KIT, PISTON SET Service kit and includes all parts shown within the box. BS-190658GS
...
C
KIT, SEAL OIL Service kit and includes all parts shown within the box. BS-190659GS
...
D
KIT, SEAL HIGH PRESSURE Service kit and includes all parts shown within the box. BS-190660GS
...
E
KIT, O-RINGS Service kit and includes all parts shown within the box. BS-190677GS
...
F
KIT, UNLOADER Service kit and includes all parts shown within the box. BS-190661GS
...
G
KIT, CAM & BEARING Service kit and includes all parts shown within the box. BS-190662GS
...
...
...
