1936-0 Briggs and Stratton Pressure Washer 2,550 PSI

Model: 1936-0

Save
 Part Not Listed?Part Not Listed?
product name

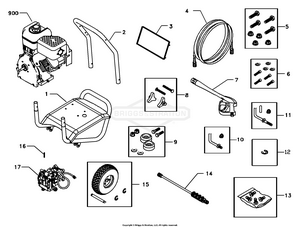

Main Unit

...
...
1
BASE BS-192772GS
...
2
HANDLE BS-B191874GS
...
3
BILLBOARD BS-191909GS
...
4
HOSE BS-190249GS
...
5
KIT, Engine Mounting Hardware BS-192318GS
...
6
KIT, Pump Mounting Hardware BS-192131GS
...
7
GUN BS-B3263GS
...
8
KIT, Handle Connector BS-B2203GS
...
9
KIT,Vibration Mount BS-192310GS
...
10
KIT, Hook BS-192309GS
...
11
KIT, Hook, Handle BS-194264GS
...
12
E-RING BS-703977
...
13
KIT, Nozzle BS-197291GS
...
14
EXTENSION BS-192199GS
...
15
KIT,Wheel BS-192317GS
...
16
KEY BS-23139DGS
...
17
ASSY, Pump (See "Pump") BS-189943GS
...
900
ENGINE BS-~NSP
...
MANUAL, Owner's Not Illustrated BS-191678GS
...
MANUAL, Illustrated Parts List Not Illustrated BS-192745GS
...
KIT, Decals Not Illustrated BS-192657GS
...
BOTTLE, Oil Not Illustrated BS-100005

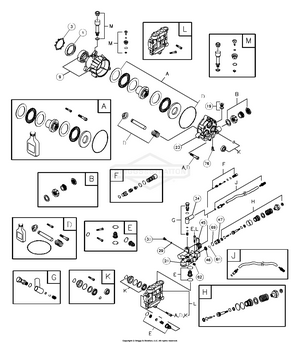

Pump

...
...
1
SEAL BS-190568GS
...
3
RETAINER RING BS-190569GS
...
9
ENGINE ADAPTER & BEARING BS-190671GS
...
19
CAP, Oil BS-190571GS
...
23
PISTON HOUSING BS-190573GS
...
28
MANIFOLD BS-190673GS
...
29
KIT, PIPE FITTING BS-193971GS
...
30
KIT, PIPE FITTING BS-193971GS
...
34
CONNECTION, Chemical Inlet BS-190577GS
...
45
PIN BS-190578GS
...
46
KIT, UNLOADER SEAT BS-193972GS
...
47
KIT, UNLOADER SEAT BS-193972GS
...
62
CAP BS-190581GS
...
68
KIT, UNLOADER SEAT BS-193972GS
...
69
KIT, UNLOADER SEAT BS-193972GS
...
76
VALVE, Thermal Relief BS-208673GS
...
77
OIL BOTTLE BS-190585GS
...
A
KIT,WOBBLE PLATE BEARING Service kit; includes all parts shown within the box. BS-190672GS
...
B
KIT,WATER INLET Service kit; includes all parts shown within the box. BS-190670GS
...
D
KIT, PISTON Service kit; includes all parts shown within the box. BS-190590GS
...
E
KIT, CHECK VALVES Service kit; includes all parts shown within the box. BS-190591GS
...
F
KIT, INLET CHECK Service kit; includes all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kit; includes all parts shown within the box. BS-190593GS
...
H
KIT, UNLOADER Service kit; includes all parts shown within the box. BS-190594GS
...
J
KIT, CHEMICAL HOSE Service kit; includes all parts shown within the box. BS-189971GS
...
K
KIT, SEAL SET Service kit; includes all parts shown within the box. BS-190595GS
...
L
KIT, HEAD BRASS Service kit; includes all parts shown within the box. BS-190596GS
...
M
KIT, BREATHER TUBE Service kit; includes all parts shown within the box. BS-190669GS
...
...
...
