1893-0 Briggs and Stratton Portable Generator 6,000 Watt

Model: 1893-0

Save
Part Not Listed?Part Not Listed?
product name

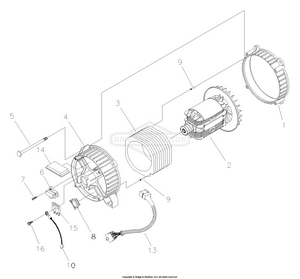

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS

...
2

...
3

...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS

...

...
5

...
6
ASSY, Holder, Rectifier/Brush BS-66386GS

...
7

...
8
RECEPTACLE, 6 pin BS-22694GS

...
9
PIN, Roll BS-81917GS

...
10
ASSY, Wire, Ground BS-193428AGS

...
13
HARNESS, Wire, Power BS-190356GS

...
14
BOARD, Circuit, System Control BS-205858GS

...
15
RECTIFIER, Battery Charge BS-65795GS

...
16

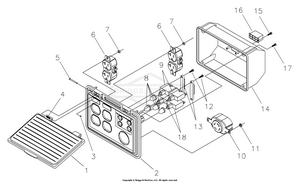

Control Panel

...
...
1
COVER, Lid, Control Panel BS-188914GS

...
2
CONTROL PANEL, Compact BS-191450GS

...
3
CLIP, Hinge Pin Retainer BS-189167GS

...
4
SPRING, Hinge, Pin BS-189182GS

...
5
PIN, Hinge, Cover, Compact BS-189166GS

...
6
OUTLET, 120V, 20A, Duplex BS-68759GS


...
8
CAP, Breaker, Circuit BS-84198GS

...
9
BREAKER-CIRCUIT 30A BS-706178

...
10
OUTLET, 120/240V Locking, 30A BS-43437GS

...

...
12

...
13
BAR, Retaining BS-93857GS

...
14
COVER, Back, Control Panel BS-188890GS

...
15

...
16
HOUSING, Receptacle BS-22694GS

...
17

...
18
BREAKER-CIRCUIT 25A BS-706175

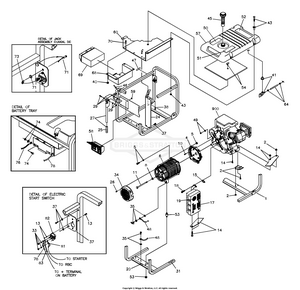

Main Unit

...
...

...
2
KIT,Vibration Mount, 45°. BS-194150GS

...
4
HOUSING, Engine Adapter BS-190220GS

...
5
KIT, Adptr, Hdwr Mounting BS-194151GS

...
6
ASSY, Alternator (See "Alternator") BS-~NSP

...
8

...
10

...
11

...
13
KIT, Starter Mounting Hardware BS-194440GS

...
14
KIT, Muffler & Brct Hardware BS-194729GS

...
15
GASKET, Exhaust BS-695398

...
17
MUFFLER BS-189008GS

...
18

...
19
SCREEN, Spark Arrest BS-83083GS

...
20
DECAL, Ground BS-B4986GS

...
24
SHIELD, Heat BS-194390GS

...
25

...
26

...
27
ASSY, Handle (Includes Item 25) BS-B193200GS

...
29
KIT, Handle Fold-down Hardware BS-194034GS

...
31
DECAL, Hot Muffler BS-191436GS

...
33
KIT, Contact Starter Hardware BS-194441GS

...
34
COVER, Bearing Carrier BS-195422GS

...
35
KIT, Grounding Hardware BS-193646GS

...
37
KIT, Mounting Plate Switch BS-194439GS

...
38

...
41
KIT, Valve, Tank BS-192980GS

...
43
KIT, Hardware Tank Fuel BS-194398GS

...
45
CAP, Fuel Gauge BS-B4363GS

...
46
PIN, with Lanyard BS-B4135GS

...
47
DECAL, Fuel Shut-off BS-191435GS

...
48
WIRE, Ground BS-195373GS

...
49
KIT, Hardware, Starter Contact BS-194251GS

...
50
DECAL, Instruction, Fuel Level BS-188333GS

...
51
DECAL, Danger BS-194799GS

...
52
DECAL, Start Instructions BS-189235GS

...
53
MOUNT-VIBRATION BS-194153GS

...
54
KIT, Insulation with Clip BS-194448GS

...
57
ASSY, Tank, Fuel (Includes Items 41, 50, 51 & 52) BS-194217GS

...
58
ASSY, Control Panel (See "Control Panel") BS-191757GS

...
59
NUT, Palnut BS-189164GS

...
60
HEATSHIELD BS-208564GS

...
64
LINE, Fuel BS-791745

...
68
TRAY, Battery BS-192985GS

...
69
BATTERY, 12V BS-193043GS

...
70

...
71
ASSY, Jack, DC BS-192531GS

...

...
74
KIT, Battery Hardware BS-193347GS

...
76
ASSY, Wire BS-185939KGS

...
78
ASSY, Wire BS-189302CGS

...
81
ASSY, Wire BS-189302GGS

...
82
SWITCH, Starter BS-77282GS

...
83
ASSY, Wire BS-192355GS

...
900
ENGINE BS-~NSP

...
MANUAL OPERATING & MAINT INSTRUCTIONS Not illustrated BS-276355

...
MANUAL, Owner's Not illustrated BS-191958GS

...
BOTTLE, Oil Not illustrated BS-BB3061GS

...
PLUG, 250V, 30A Not illustrated BS-43438GS

...
CHARGER, Battery Not illustrated BS-84002790

...
KIT, Decals Service Not illustrated BS-193840GS

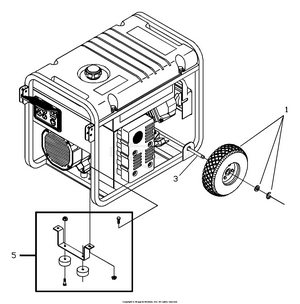

Wheel Kit

...
...
1
KIT, Wheel BS-194509GS


...
5
KIT, Leg Support w/Hardware BS-194843GS

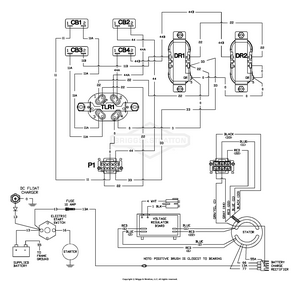

Wiring Diagram

...

No Parts Available for this Schematic

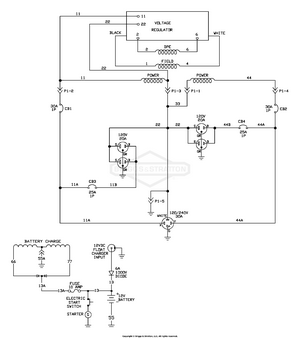

Wiring Schematic

...

No Parts Available for this Schematic

...
...
...
