product name

1873-0 Briggs and Stratton Portable Generator ProDiesel 2600

Model: 1873-0

Save
 Part Not Listed?Part Not Listed?
product name

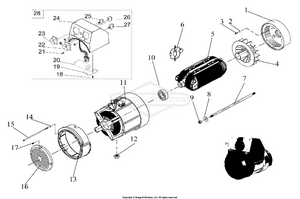

Alternator

...
...
--
Alternator, Complete BS-102421GS
...
1
Flange Alternator BS-102059GS
...
2
Washer Spring M8 & 5/16" BS-~NSP
...
3
Screw Set 5/16"UNF x 3/4" BS-~NSP
...
4
Fan Rotor Sincro R80 BS-102046GS
...
5
Rotor Sincro R80 BS-102056GS
...
6
KIT-CAPACITOR DIODE & VAR BS-B4916GS
...
7
Washer Flat M8 & 5/16" BS-102057GS
...
8
Nut nylock M8-1.25 Type T BS-~NSP
...
9
Bearing Rotor BS-~NSP
...
10
Bearing Rotor BS-102063GS
...
11
Stator Assembly Dual Voltage BS-102416GS
...
12
Nut Flange M8-1.25 BS-~NSP
...
13
Cowling Alternator R80 BS-102060GS
...
14
Washer Flat M5 BS-~NSP
...
15
Bolt Stator M5*204mm BS-102088GS
...
16
End Cover Alternator R80 BS-102061GS
...
17
Screw Self Tap3.9 * 9.5mm BS-~NSP
...
18
Screw Self Tap PPhd #8*5/8" BS-102023GS
...
19
Capacitor Clip BS-102082GS
...
20
Capacitor 16u F BS-102053GS
...
21
Screw Self Tap #10*15mm BS-~NSP
...
22
Outlet 230V 16Amp Blue BS-102418GS
...
23
Outlet 115V 16Amp Yellow BS-102419GS
...
24
Outlet Box Blank (No Fittings) BS-102062GS
...
25
Circuit Breaker 20A BS-102261GS
...
26
Switch Voltage Change-over BS-102404GS
...
27
Circuit Breaker 10A BS-102132GS
...
28
Outlet Box Sincro R80 UKDV BS-102420GS

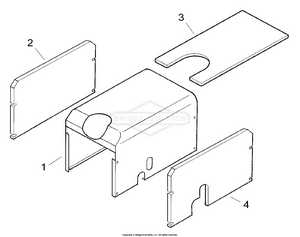

Canopy

...
...
1
Canopy Pro Diesel 2600 BS-102930GS
...
2
Acoustic Foam for Pro Diesel 2600 canopy BS-102931GS
...
3
Acoustic Foam for Pro Diesel 2600 canopy BS-102932GS
...
4
Acoustic Foam for Pro Diesel 2600 canopy BS-102933GS

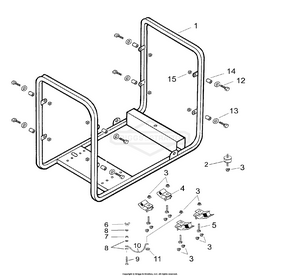

Cradle

...
...
1
Cradle Pro Diesel 2600 BS-102928GS
...
2
Vibration Mount 32mm Diameter BS-102034GS
...
3
Nut Flange M8-1.25 BS-~NSP
...
4
Vibration Mount 45 Degree Hard BS-102031GS
...
5
SCREW SET M8-1.25*35MM BS-~NSP
...
6
Nut Wing M6-1.0 BS-102036GS
...
7
Nut Full M6-1.0 BS-~NSP
...
8
Washer Shakeproof 1/4" & M6 Int BS-~NSP
...
9
Screw Set M6-1.0x25mm Plated BS-~NSP
...
10
Lead Earth Assy 125mm BS-102378GS
...
11
Washer Shakeproof M8 int BS-~NSP
...
12
Screw M6-1.0 x 35mm BS-102123GS
...
13
Washer Repair 6x20 oxy Black BS-102042GS
...
14
Spacer M6x20mm BS-102929GS
...
15
Nut Nylock M6-1.0 BS-~NSP
...
--
Decal Warning Read Manual (Not Illustrated) BS-102077GS
...
--
Decal Caution Hot (Not Illustrated) BS-102041GS
...
--
Decal GND (Not Illustrated) BS-102048GS
...
--
Decal Electrical Hazard (Not Illustrated) BS-102076GS
...
--
Decal Pro Diesel 2600 (Not Illustrated) BS-102934GS
...
--
Manual Owners BS2012 (Not Illustrated) BS-102065GS
...
...
...
