1813-1 Briggs and Stratton Transfer System 100 Amp Automatic Transfer Switch

Model: 1813-1

Save
Part Not Listed?Part Not Listed?
product name

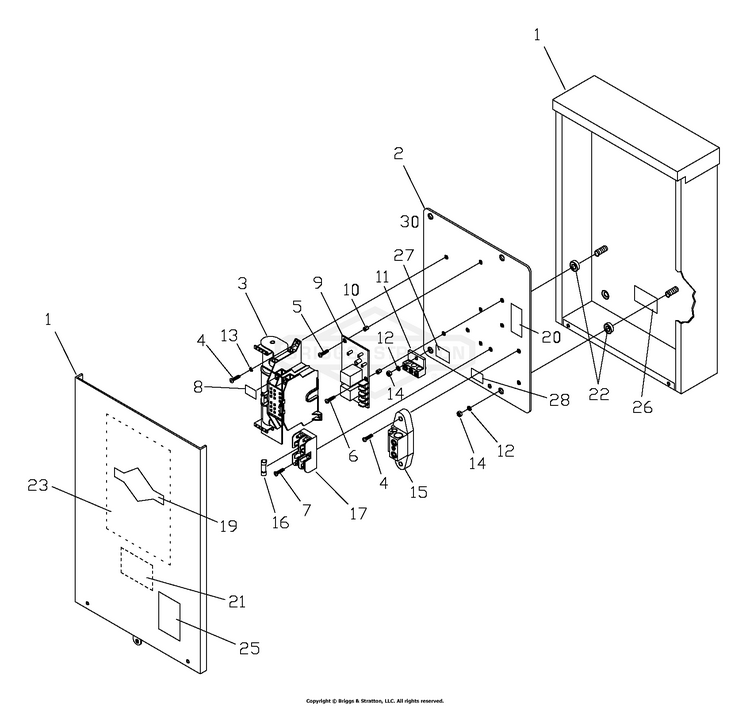

Transfer Switch

...
...
1
ENCLOSURE, 16" x 12" x 6" BS-~NSP

...
2
BACK PANEL BS-~NSP

...
3
CONTACTOR, 100A BS-314865GS

...
8
DECAL SHEET-WARNINGS BS-704420

...
9
CONTROL, Board BS-191668GS

...
10
SPACER, Nylon BS-196353GS

...
11
TERMINAL, GROUND BS-84006973

...
15
TERMINAL, Neutral (Incl. Ref. No. 4 and bonding screw) BS-192696GS

...
16

...
17
FUSE HOLDER BS-192151GS

...
19
DECAL, Logo BS-198136GS

...
20
DECAL,Term Strip BS-192702GS

...
21
DECAL,APPVD CB BS-192165GS

...
22
NUT, 3/8"-16 BS-22241GS

...
23
DECAL, 100A,ATS BS-196522GS

...
25
DECAL,Warning Shock BS-190992GS

...
26
DECAL, Fuse BS-190984GS

...
27
DECAL, Ground BS-B4986GS

...
28
DECAL SHEET-WARNINGS BS-704418

Wiring Diagram - Transfer Switch

...

No Parts Available for this Schematic

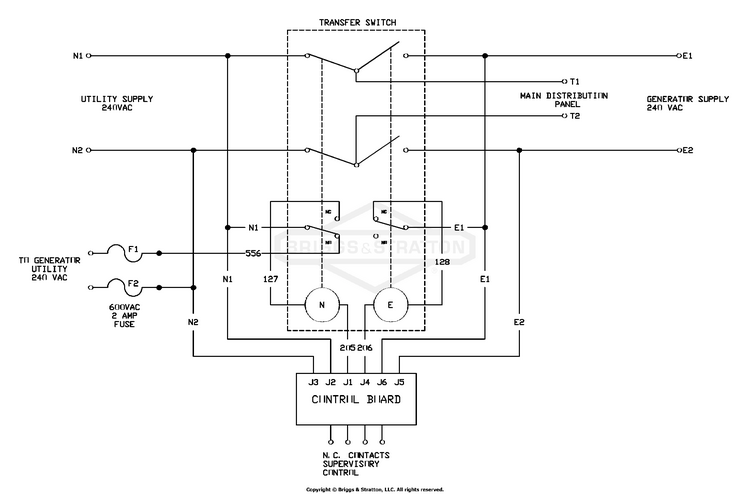

Wiring Schematic - Transfer Switch

...

No Parts Available for this Schematic

...
...
...
