product name

1811-0 Briggs and Stratton Pressure Washer 1,800 PSI

Model: 1811-0

Save
 Part Not Listed?Part Not Listed?
product name

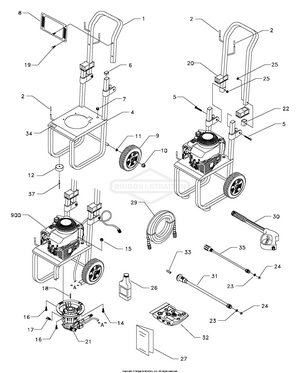

Main Unit

...
...
1
HANDLE BS-GB3330GS
...
2
CAP,Vinyl BS-B2516GS
...
4
BASE BS-GB3307GS
...
5
CARRIAGE BOLT, 1/4"-20 x 1 1/2" BS-B3085GS
...
6
CAP, Plug BS-81895GS
...
7
GROMMET BS-30809GS
...
8
DECALS/BILLBOARD BS-191695GS
...
9
TIRE, 2" x 8" Black Mag BS-21206GS
...
10
PUSHNUT, 1/2" BS-190146GS
...
11
WASHER, M12 Flat BS-49808GS
...
12
VIBE MOUNT, with Washer BS-191413GS
...
13
HHCS, M8 BS-57821GS
...
14
SHCS, M8 - 1.25 x 70mm BS-A2013GS
...
15
NUT, M8 BS-52858GS
...
16
SHCS, M8 -1.25 x 50mm BS-190750GS
...
17
VALVE, Thermal Relief BS-208673GS
...
18
KEY BS-23139GS
...
19
FASTENER, Clip BS-B1797GS
...
20
COVER, Hinge BS-B2791GS
...
21
Assy, Pump BS-206383GS
...
22
CAP, End BS-B2790GS
...
23
SCREEN, Gun Inlet BS-B4224GS
...
24
O-RING BS-97837GS
...
25
NUT BS-194005GS
...
26
BOTTLE, Oil BS-100005
...
27
MANUAL BS-191689GS
...
29
HOSE, 1/4" x 25’ BS-190249GS
...
30
GUN BS-B1862BGS
...
31
WAND-ADJUSTABLE BS-205015CGS
...
32
TAG, Nozzle Instructions BS-191922GS
...
33
KIT, O-Ring Maintenance BS-21761GS
...
34
DECAL, Cool Down BS-187952GS
...
35
TURBO BS-B2335GS
...
36
NUT, M8 BS-52858GS
...
37
BLIND RIVET BS-188194GS

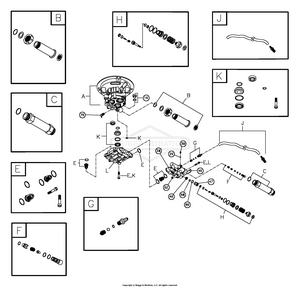

Pump

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190627GS
...
29
KIT, PIPE FITTING BS-193971GS
...
30
KIT, PIPE FITTING BS-193971GS
...
45
PIN BS-190578GS
...
46
VALVE, Seat Plate, Plastic BS-190629GS
...
47
VALVE, Seat, Plastic BS-190630GS
...
62
CAP, 1/8 BS-190581GS
...
68
KIT, UNLOADER SEAT BS-193972GS
...
69
KIT, UNLOADER SEAT BS-193972GS
...
76
VALVE, Thermal Relief BS-208673GS
...
A
ASSY, CASE, PISTON BS-~NSP
...
B
KIT,WATER INLET,ALUM Service kits include all parts shown within the box. BS-190632GS
...
C
FITTING Service kits include all parts shown within the box. BS-201497GS
...
E
KIT, CHECK VALVES Service kits include all parts shown within the box. BS-190591GS
...
F
KIT, INLET CHECK Service kits include all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kits include all parts shown within the box. BS-190593GS
...
H
KIT, UNLOADER STEM Service kits include all parts shown within the box. BS-190628GS
...
J
KIT, CHEMICAL HOSE Service kits include all parts shown within the box. BS-189971GS
...
K
KIT, SEAL SET Service kits include all parts shown within the box. BS-190636GS
...
L
KIT, HEAD ALUM BS-~NSP
...
OIL BOTTLE Item Not Illustrated BS-190586GS
...
FILTER, Inlet Item Not Illustrated BS-B2384GS
...
FILTER, Inlet, Bag of 10 Item Not Illustrated BS-186452GS
...
...
...
