1774-0 Briggs and Stratton Portable Generator 5,500 Watt BSP5500L

Model: 1774-0

Save
 Part Not Listed?Part Not Listed?
product name

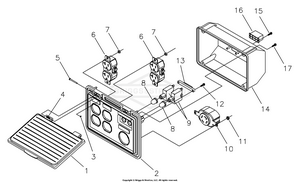

Control Panel

...
...
1
COVER, Lid, Control Panel BS-188914GS
...
2
CONTROL PANEL, Compact BS-188889GS
...
3
CLIP, Hinge Pin Retainer BS-189167GS
...
4
SPRING, Hinge, Pin BS-189182GS
...
5
PIN, Hinge, Cover, Compact BS-189166GS
...
6
OUTLET, 120V, 20A, Duplex BS-68759GS
...
7
NUT BS-189165GS
...
8
CAP, Circuit Breaker BS-84198GS
...
9
BREAKER-CIRCUIT 20A BS-209872GS
...
10
OUTLET, 120/240V Locking, 30A BS-43437GS
...
11
NUT BS-189164GS
...
12
SCREW BS-84543CGS
...
13
BAR, Retaining BS-93857GS
...
14
COVER, Back, Control Panel BS-188890GS
...
15
SCREW BS-82308GS
...
16
HOUSING, Receptacle BS-22694GS
...
17
SCREW BS-192241GS

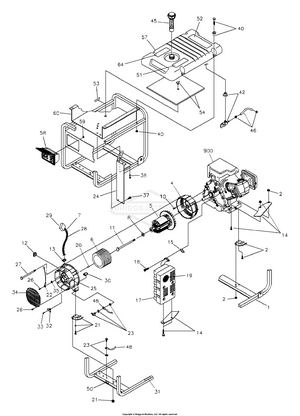

Main Unit

...
...
1
CRADLE BS-M191281GS
...
2
KIT,Vibration Mount, 45°. BS-194150GS
...
4
HOUSING, Engine Adapter BS-66365GGS
...
5
ASSY, Rotor BS-187746GS
...
6
ASSY, Stator BS-187745GS
...
7
WRAP, Tie BS-28739AGS
...
8
WASHER BS-96796GS
...
10
SCREW BS-86307GS
...
11
SCREW BS-99383GS
...
12
GROMMET, Rubber BS-67022GS
...
13
GROMMET, Rubber BS-189127GS
...
14
KIT, Muffler & Brct Hardware BS-194729GS
...
15
GASKET, Exhaust BS-695398
...
17
MUFFLER BS-189008GS
...
18
SCREW BS-60706GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
PIN, Roll BS-81917GS
...
21
KIT, Mount Vibration BS-194849GS
...
22
WIRE, Ground, Panel BS-189521AGS
...
23
KIT, Grounding Hardware BS-193646GS
...
24
SHIELD, Heat BS-194390GS
...
25
CARRIER, Rear Bearing BS-SRV66825DGS
...
26
SCREW BS-74908GS
...
27
BOLT, Stator BS-86308AGS
...
28
SLEEVING, Flexo BS-84409GS
...
29
FASTEN, On Tab Housing 6P BS-22695GS
...
30
GROMMET, Plastic BS-84242GS
...
31
DECAL, Hot Muffler BS-191436GS
...
32
ASSY, Brush Holder BS-91825GS
...
33
SCREW BS-66849GS
...
34
COVER, Bearing Carrier BS-B4871GS
...
37
SCREW BS-B2153GS
...
38
SCREW BS-56893GS
...
40
KIT, Hardware Tank Fuel (Includes Qty 4) BS-194401GS
...
42
KIT, Fuel Valve BS-192980GS
...
45
CAP, Fuel Gauge BS-B4363GS
...
46
LINE, Fuel BS-791745
...
48
WIRE, Ground BS-195373GS
...
50
DECAL, Ground, Green BS-B4986GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Danger BS-191438GS
...
53
DECAL, Fuel Shut-off BS-191435GS
...
54
KIT, Insulation w/ Clip BS-194448GS
...
57
ASSY,Tank, Fuel 7-Gallon BS-194851GS
...
58
ASSY, Control Panel (see "Control Panel") BS-189157GS
...
59
NUT, Palnut BS-189164GS
...
60
HEATSHIELD BS-208564GS
...
64
DECAL, Instruction, Fuel Level BS-191437GS
...
PLUG, 120/240V, 30A Not Illustrated BS-43438GS
...
MANUAL, Operato's Not Illustrated BS-191242GS
...
MANUAL, Engine Not Illustrated BS-MS6737
...
KIT, Decals Srv Not Illustrated BS-194850GS
...
Front Draw Bar w/Spindles-RH Side Optional Accessories Not Included BS-100126

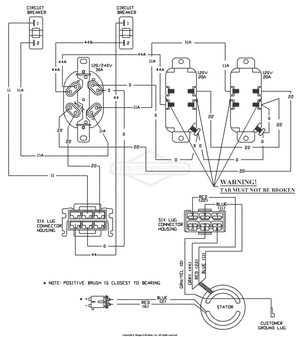

Wiring Diagram

...

No Parts Available for this Schematic

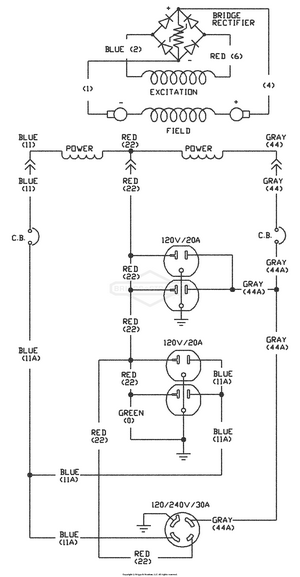

Wiring Schematic

...

No Parts Available for this Schematic

...
...
...
