1743-0 Briggs and Stratton Portable Generator G-Force 5000

Model: 1743-0

Save
 Part Not Listed?Part Not Listed?
product name

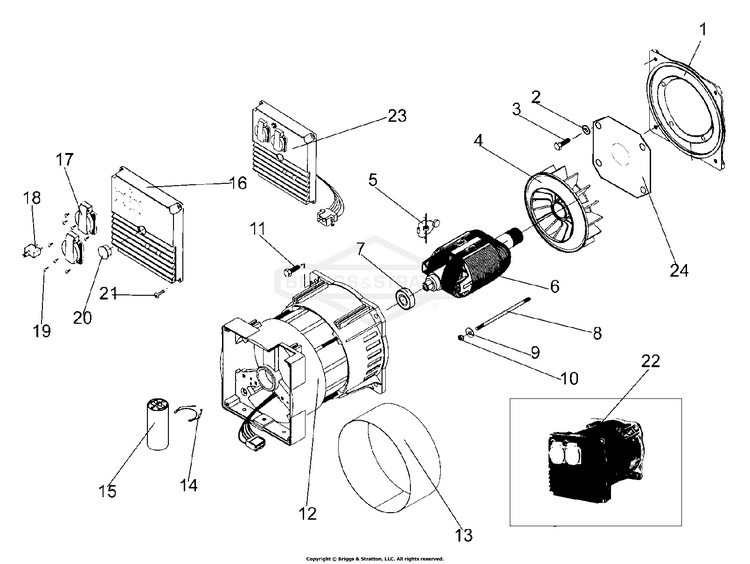

Alternator Outlet Panel

...
...
1
FLANGE PLATE BS-102138GS
...
2
WASHER LOCK M10/ 3/8 OXY BLACK BS-~NSP
...
3
SCREW CAP 3/8" UNC X 1" BS-~NSP
...
4
ROTOR FAN SINCRO BS-102073GS
...
5
KIT-CAPACITOR DIODE & VAR BS-B4916GS
...
6
ROTOR ASSY SINCRO GP3.5 BS-102217GS
...
7
ROTOR BEARING BS-102038GS
...
8
ROTOR BOLT 235MM M8-1.25 BS-102382GS
...
9
WASHER FLAT M8 & 5/16" BS-~NSP
...
10
NUT NYLOCK M8-1.25 TYPE T BS-~NSP
...
11
SCREW SET 5/16"UNF X 3/4" BS-~NSP
...
12
STATOR ASSEMBLY SINCRO GP3.5/EP4.2 BS-102218GS
...
13
STATOR COVER BAND BS-~NSP
...
14
CAPACITOR CLIP EP SERIES BS-~NSP
...
15
CAPACITOR 35UF BS-102251GS
...
16
OUTLET PANEL BLANK (FITTINGS REMOVED) BS-102075GS
...
17
SOCKET OUTLET G/S BS-102030GS
...
18
CIRCUIT BREAKER 15A BS-102133GS
...
19
SCREW PLASTITE PPHD NO6 * 3/8" BS-~NSP
...
20
END CAP PLASTIC PLUG BS-102085GS
...
21
SCREW MC PPHD M5*10MM BS-~NSP
...
22
ALTERNATOR SINCRO EP4.2 BS-102221GS
...
23
OUTLET PANEL ASSY BS-102222GS
...
24
GUARD FINGER BS-102252GS

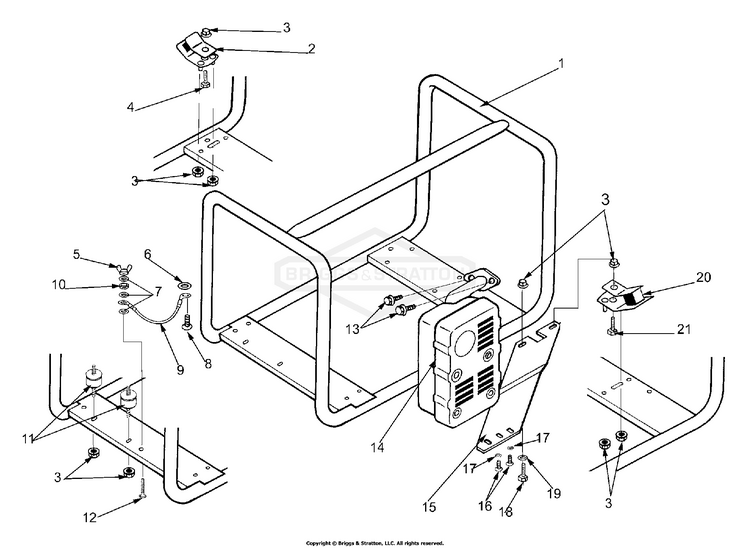

Frame & Fittings

...
...
1
CRADLE YELLOW BS-102635GS
...
2
VIBRATION MOUNT 45 DEGREE SOFT BS-102033GS
...
3
NUT FLANGE M8-1.25 BS-~NSP
...
4
SCREW SET M8-1.25*35MM BS-~NSP
...
5
NUT WING M6-1.0 BS-102036GS
...
6
WASHER SHAKEPROOF M8 INT BS-~NSP
...
7
WASHER SHAKEPROOF 1/4" BS-~NSP
...
8
SCREW SET M8-1.25X12 PLATED BS-~NSP
...
9
LEAD EARTH ASSY 145MM BS-102050GS
...
10
NUT FULL M6-1.0 BS-~NSP
...
11
VIBRATION MOUNT 32MM DIAMETER BS-102034GS
...
12
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
13
SCREW SET 5/16" UNC * 3/4" BS-102363GS
...
14
MUFFLER INTEK 8 BS-102255GS
...
15
BRACKET EXHAUST BS-102364GS
...
16
SCREW SET HHD M6-1.0*12MM BS-~NSP
...
17
WASHER SPRING M6 & 1/4" BS-~NSP
...
18
SCREW SET M8-1.25*35MM BS-~NSP
...
19
WASHER FLAT M8 & 5/16" BS-~NSP
...
20
VIBRATION MOUNT 45 DEGREE HARD BS-102031GS
...
21
BOLT M8-1.25 X40 BS-102264GS
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
DECAL G-FORCE 5000 (Not Illustrated) BS-102636GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
MANUAL GENERIC-GFORCE (Not Illustrated) BS-102590GS

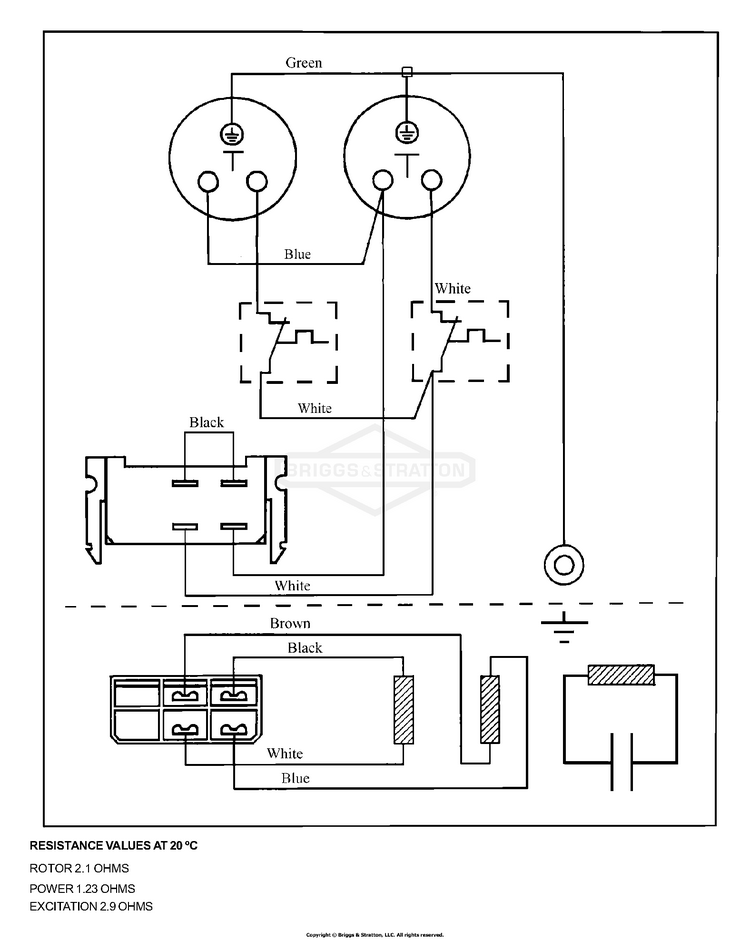

Panel Wiring Diagram

...

No Parts Available for this Schematic

...
...
...
