1658-0 Briggs and Stratton Portable Generator 5,000 Watt

Model: 1658-0

Save
 Part Not Listed?Part Not Listed?
product name

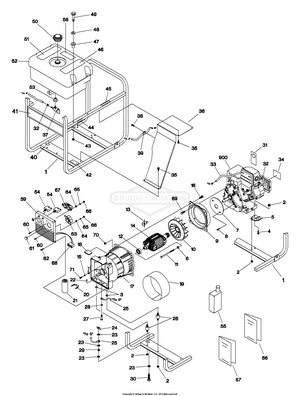

Main Unit

...
...
1
CRADLE BS-B189553GS
...
2
NUT, M8 Flange Serrated BS-67989GS
...
3
SPACER BS-189626GS
...
4
TPHMS, M8 - 1.25 x 35 BS-195398GS
...
5
MOUNT,Vibration 45 Deg. BS-70642GS
...
6
WASHER, 22.2 OD X 8.4 ID x 3 BS-96796GS
...
7
DISK, Engine Air BS-BB4260GS
...
8
HHCS, 5/16 x 3/4, SEMS BS-86307GS
...
9
ADAPTER, Engine/Alt, Sincro BS-189750GS
...
10
FAN, Sincro BS-189749GS
...
11
HHCS, 5/16 - 24 x 7 1/2" BS-189825GS
...
12
BEARING, Ball BS-189757GS
...
13
ASSEMBLY, Diode/Varistor BS-A1816GS
...
14
ASSY, Rotor, Sincro BS-191311GS
...
15
WASHER, Shakeproof #10 BS-23762GS
...
16
HHCS, M8 - 1.25 x 20 BS-39253GS
...
17
ASSY, Rotor, Sincro BS-191311GS
...
18
COVER, RBC Opening BS-189758GS
...
19
COVER, Stator BS-189755GS
...
20
CLIP, Capacitor BS-189754GS
...
21
CAPACITOR, 35, UF BS-A1817AGS
...
22
CAP, M8 THD BS-189824GS
...
23
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
24
WING NUT, M6 - 1.0 BS-87680GS
...
25
WIRE, Ground BS-19553621GS
...
26
MOUNT-VIBRATION BS-194153GS
...
27
CAPSCREW, M8 - 1.25 x 16 BS-42907GS
...
28
WASHER, 5/16" Shakeproof BS-27482GS
...
29
NUT, Hex M6 - 1.0 BS-49813GS
...
30
HHCS, M6 - 1.0 x 25 BS-45757GS
...
31
TAG, Oil Warning BS-70453GS
...
32
CLAMP, Hose BS-691038
...
33
HOSE, 1/4" x 21" I.D. SAE-30R7 BS-189867CGS
...
34
DECAL,Air Cleaner BS-189878GS
...
35
SCREW, Self Drill 12-14 x 7/8" BS-B2153GS
...
36
HEAT SHIELD, Muffler BS-J189055GS
...
37
Kit, Valve BS-192980GS
...
38
CRIMPTITE, #10-24 x 1/2" BS-56893GS
...
39
CLAMP,Vinyl Coated BS-55934GGS
...
40
DECAL, Ground BS-B4986GS
...
41
DECAL, Panel BS-189637GS
...
42
DECAL, 1-800 BS-20566GS
...
43
NUT, M6 Flange Lock BS-77395GS
...
44
DECAL, Fuel Shut-Off BS-73054GS
...
45
DECAL, Caution Hot Muffler BS-77816GS
...
46
DECAL, Start Instruction BS-189235GS
...
47
GROMMET, Mounting Tank BS-188973GS
...
48
WASHER, Flat, 6.6 x 21.6 x 1.9 BS-189155GS
...
49
HHCS, M6 -1.0 x 45 BS-189286GS
...
50
CAP, Fuel BS-90878GS
...
51
DECAL, Danger BS-194799GS
...
52
ASSY, Fuel Tank (Includes Items 37 & 53) BS-193961GS
...
53
Kit, Valve BS-192980GS
...
54
BREAKER-CIRCUIT 20A BS-209872GS
...
55
OIL BOTTLE BS-BB3061GS
...
56
MANUAL, Generator BS-189633GS
...
57
MANUAL, Engine BS-188826GS
...
58
DECAL, Gas Tank Fill BS-188333GS
...
59
PANEL, Control, Sincro BS-189624GS
...
60
PPHMS, M4 - 0.7 x 10 BS-75475GS
...
61
CAP BS-B4911GS
...
62
PPMS, M5 - .8 x 12 BS-91526GS
...
63
OUTLET, 120/240V 20A Locking BS-68867GS
...
64
WASHER, M4 Flat BS-22985GS
...
65
WASHER, M4 Lock BS-22264GS
...
66
NUT, M4 - 0.7 BS-51715GS
...
67
OUTLET, 120V/20A, Duplex BS-68759GS
...
68
HARNESS, Wire, Sincro BS-189625GS
...
69
HHCS, 3/8" - 16 x 1 BS-29745GS
...
70
NUT, Nylok, M8 - 1.25 BS-49820GS
...
71
TAPTITE, M5 - 0.8 x 10 BS-74908GS
...
900
ENGINE BS-~NSP

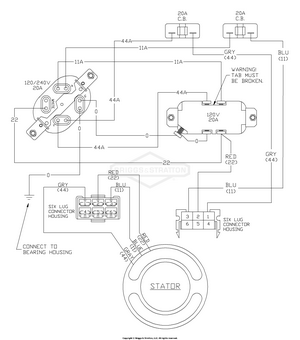

Wiring Diagram

...

No Parts Available for this Schematic

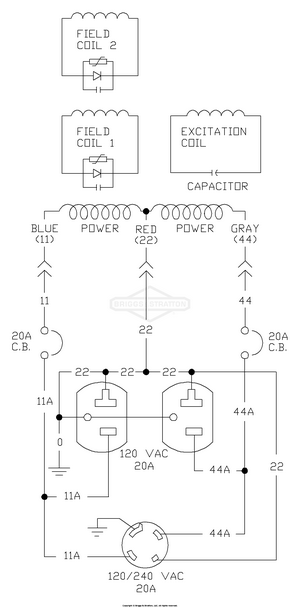

Wiring Schematic

...

No Parts Available for this Schematic

...
...
...
