1653-4 Briggs and Stratton Portable Generator 3,250 Watt

Model: 1653-4

Save
Part Not Listed?Part Not Listed?
product name

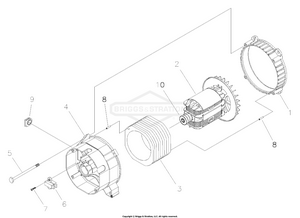

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS

...
2
ROTOR (Includes Item 10) BS-192164GS

...
3

...
4
RBC, with O-Ring (p/n 189197GS) BS-192215BGS

...
5
HHCS, M6 - 1.0 x 95 SEMS BS-86308JGS

...
6
ASSY, Holder, Rectifier/Brush BS-91825GS

...
7
TAPTITE, M5 - 0.8 x 16 BS-66849GS

...
8
PIN, Roll, 4mm x 10 BS-81917GS

...
9
GROMMET, Rubber BS-67022GS

...
10
BEARING BS-65791GS

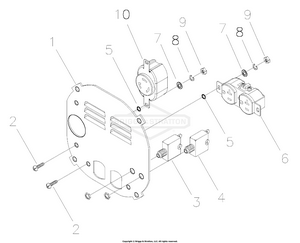

Control Panel

...
...
1
COVER, Control Panel BS-95600GS

...
3
BREAKER, Circuit BS-94396BGS

...
4
BREAKER, Circuit BS-94396FGS

...
6
OUTLET, 120V, 20A Duplex BS-68759GS

...
10
OUTLET-120V TL30A BS-705932

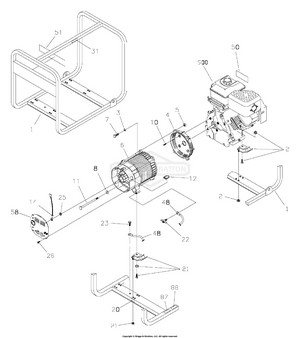

Main Unit

...
...
1
KIT, Cradle BS-M190341GS

...
2
KIT,Vibration Mount BS-194150GS

...
4
HOUSING, Engine Adapter BS-186058AGS

...
6
ASSY,Alternator (see "Alternator") BS-~NSP

...
8
WASHER, Flat (special) BS-96796GS

...
10
HHCS, 5/16 - 24 x 3/4, SEMS BS-86307GS

...
11
HHCS, 5/16" - 24 x 7" BS-47480GS

...
12
GROMMET, Plastic RBC BS-84242GS

...
14
WIRE, Ground Panel BS-55199JGS

...
20
DECAL, Ground BS-B4986GS

...
21
KIT,Vibration Mount BS-194849GS

...
22
SCREW,Wing M6 - 1.0 x 16 BS-86494GS

...
23

...
26
TAPTITE, M5 .08 x 10mm BS-74908GS

...
31
DECAL, Caution Hot Muffler BS-191436GS

...
48
WIRE, Ground BS-195373GS

...
50
DECAL, Fuel Tank BS-196740GS

...
51
DECAL, Start,Warning, English/French BS-196056GS

...
58
ASSY, Control Panel (see "Control Panel") BS-189645GS

...
87
DECAL, Neutral Ground BS-195459GS

...
88
DECAL, French Neutral Ground BS-195940GS

...
BOTTLE, Oil Parts Not Illustrated BS-100005

...
MANUAL, Operator's Parts Not Illustrated BS-199972GS

...
MANUAL, Engine Parts Not Illustrated BS-MS5242

...
KIT, Decal Srv Parts Not Illustrated BS-200291GS

...
Front Draw Bar w/Spindles-RH Side Optional Accessories; Contact Engine Manufacturer BS-100126

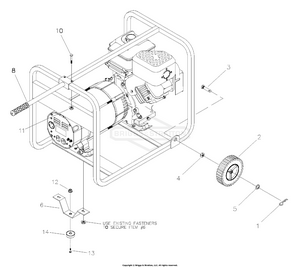

Wheel Kit

...
...
1
PIN, 3/32 X 1.6 BS-703300

...
2

...
3
STUD,Axle BS-93728GS

...
4
JAM NUT, Lock 5/8" - 18 BS-94222QGS

...
6
LEG, Mounting BS-190505GS

...
8
ASSEMBLY, Handle BS-189715GS

...
11
NUT, Locking Hex M8 - 1.25 BS-52858GS

...
12
NUT, Flange Lock M6 - 1.0 BS-77395GS

...
14
MOUNT, Rubber Donut BS-87841GS

...
GRIP Item Not Called Out BS-198669GS

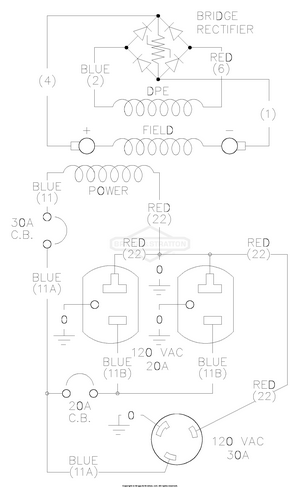

Wiring Diagram

...

No Parts Available for this Schematic

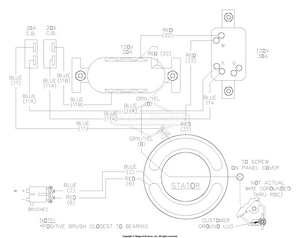

Wiring Schematic

...
