1649-0 Briggs and Stratton Portable Generator 3,250 Watt

Model: 1649-0

Save
 Part Not Listed?Part Not Listed?
product name

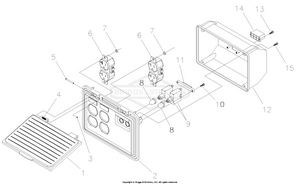

Control Panel

...
...
1
COVER, Lid, Control Panel BS-188914GS
...
2
CONTROL PANEL, Compact BS-189047GS
...
3
CLIP, Hinge Pin Retainer BS-189167GS
...
4
SPRING, Hinge, Pin BS-189182GS
...
5
PIN, Hinge, Cover, Compact BS-189166GS
...
6
OUTLET, 120V, 20A, Duplex BS-68759GS
...
7
NUT BS-189165GS
...
8
CAP, Breaker, Circuit BS-84198GS
...
9
BREAKER-CIRCUIT 20A BS-209872GS
...
10
SCREW BS-84543CGS
...
11
BAR, Retaining BS-93857GS
...
12
COVER, Back, Control Panel BS-188890GS
...
13
SCREW BS-82308GS
...
14
HOUSING, Receptacle BS-22694GS
...
15
SCREW BS-192241GS

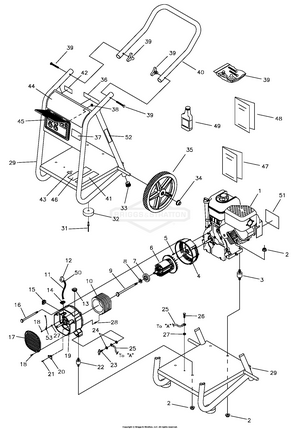

Main Unit

...
...
1
ENGINE BS-~NSP
...
2
NUT BS-67989GS
...
3
MOUNT,Vibration BS-85651GS
...
4
HOUSING, Engine Adapter BS-66365GS
...
5
SCREW BS-86307GS
...
6
ASSY, Rotor (Includes Item 7) BS-188075GS
...
7
BEARING BS-65791GS
...
8
WASHER BS-96796GS
...
9
SCREW BS-24421GS
...
10
ASSY, Stator BS-189381AGS
...
11
SLEEVING BS-84409GS
...
12
FASTEN, On Tab Housing 6P BS-22695GS
...
13
GROMMET, Plastic BS-84242GS
...
14
GROMMET, Rubber BS-189127GS
...
15
GROMMET, Rubber BS-67022GS
...
16
BOLT BS-86308GS
...
17
COVER, Bearing Carrier BS-B4871GS
...
18
SCREW BS-74908GS
...
19
CARRIER, Rear Bearing BS-SRV66825DGS
...
20
ASSY, Brush Holder BS-91825GS
...
21
SCREW BS-66849GS
...
22
MOUNT-VIBRATION BS-194153GS
...
23
SCREW,Wing BS-86494GS
...
24
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
25
WIRE, Ground BS-195373GS
...
26
SCREW BS-313085GS
...
27
WASHER BS-23762GS
...
28
PIN, Roll BS-81917GS
...
29
BASE BS-B189309GS
...
31
RIVET, Blind BS-188194GS
...
32
VIBE MOUNT, with Washer BS-191413GS
...
33
CAPLUG BS-189332GS
...
34
PUSHNUT BS-190146GS
...
35
KIT,Wheel BS-193548GS
...
36
SET, DECAL, 01649 BS-189467GS
...
37
SET, DECAL, 01649 BS-189467GS
...
38
NUT BS-189164GS
...
39
KIT, Handle Hardware BS-B2203GS
...
40
HANDLE BS-B189231GS
...
41
DECAL, Operating Instructions BS-189235GS
...
42
DECAL, 1-800 BS-20566GS
...
43
DECAL, Ground BS-B4986GS
...
44
SET, DECAL, 01649 BS-189467GS
...
45
ASSY, Control Panel (see "Control Panel") BS-189158GS
...
46
DECAL, Danger BS-194799GS
...
47
MANUAL, Engine BS-275092
...
48
MANUAL, Owners BS-189351GS
...
49
BOTTLE, Oil BS-100005
...
50
WRAP,Tie BS-28739AGS
...
51
SET, DECAL, 01649 BS-189467GS
...
52
DECAL, Muffler,Warning BS-77816GS

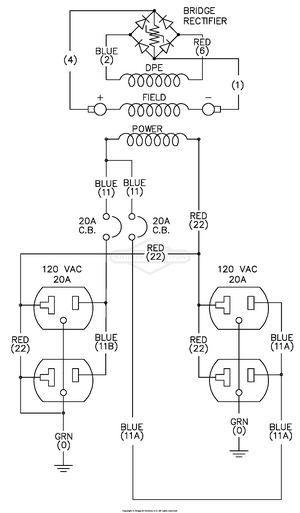

Wiring Diagram

...

No Parts Available for this Schematic

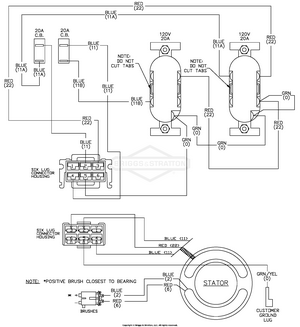

Wiring Schematic

...
