product name

1581-0 Briggs and Stratton Pressure Washer 3,500 PSI DR

Model: 1581-0

Save
 Part Not Listed?Part Not Listed?
product name

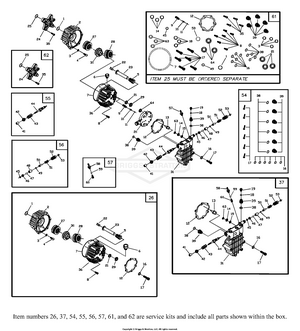

Pump

...
...
1
O-RING, Engine Adapter BS-B2218GS
...
2
HOUSING, Cam BS-B2260GS
...
3
O-RING, Engine Adapter Bolt BS-B2217GS
...
4
SCREW BS-B2261BGS
...
5
SPRING, Piston Return BS-96400GS
...
6
BREATHER BS-99735GS
...
7
O-RING, Crankcase BS-93790GS
...
8
SCREW BS-40945GS
...
9
SPRING, Thermal By-Pass BS-93652GS
...
10
PISTON, Thermal By-Pass BS-95416GS
...
11
O-RING, Thermal By-Pass BS-93876GS
...
12
GASKET, Head BS-A2069GS
...
13
ACTUATOR, Thermal By-Pass BS-93644GS
...
14
SEAL, High Pressure BS-96053GS
...
15
RING, Bearing BS-96015GS
...
16
WASHER, Steel Special BS-B2665GS
...
17
BOLT BS-A2013GS
...
18
O-RING, Cap BS-97840GS
...
19
CAP, Outlet Port BS-97841GS
...
20
SPACER PLATE BS-A1320GS
...
21
SEAL, Oil Piston BS-B3286GS
...
22
SHOE, Piston Pivot BS-94944GS
...
23
ASSY, Ceramic Piston & Cap BS-99427GS
...
24
ADAPTER, Engine BS-B3672DGS
...
25
O-RING, Engine Adapter BS-185726GS
...
26
KIT, Crankcase, 7.5 BS-186216AGS
...
37
KIT, Complete Head BS-188869GS
...
54
KIT, Check Valve BS-185933GS
...
55
KIT, Unloader Spindle BS-B4179GS
...
56
KIT, High Pressure Outlet BS-B3510GS
...
57
KIT, Chemical Injector BS-185943GS
...
61
KIT, O-Ring Sea Is BS-185926GS
...
62
KIT, ENGINE ADAPTER BS-188791GS

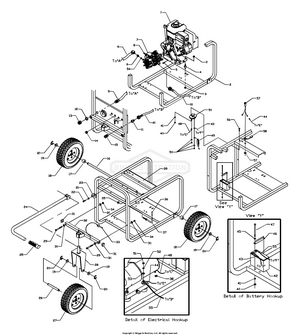

Unit (Part 1)

...
...
2
CRADLE BS-A188346GS
...
4
MOUNT, Vibration BS-21217GS
...
6
ADAPTER, M20 - 1.5 BS-188651GS
...
7
TAG, Breather Cap BS-B1288GS
...
8
ASSY., Pump BS-185669SGS
...
9
HOSE, Water Inlet BS-188635GS
...
10
HOSE, Outlet, Water BS-188654GS
...
11
ASSEMBLY, Adapter BS-188441GS
...
12
NUT,Water Inlet BS-B3735GS
...
13
CONNECTOR, Garden Hose BS-21424GS
...
14
GROMMET BS-30809GS
...
15
KIT,QC,METRIC BS-312981GS
...
16
AXLE BS-191267AGS
...
17
SPACER,Wheel BS-B89635GS
...
18
WHEEL, 3.5 x 12 BS-89742GS
...
20
PIN, Quick Release BS-87005GS
...
21
BUMPER, Recess BS-186569GS
...
23
CLIP, Spring BS-B2427BGS
...
24
HANDLE BS-AB4122GS
...
25
GRIP BS-B4134GS
...
26
AXLE, 5/8 IN X 5.91 IN, PLTD BS-191267EGS
...
27
WHEEL, 4.0 x 12 BS-B4905GS
...
28
WELDMENT, Fork Pivot BS-AB3375GS
...
30
WASHER, 22.2 OD x 8.4 ID x 3 Thk BS-96796GS
...
31
PLUG, Plastic.,1 Sq. x 16 GA Tube BS-46476GS
...
32
ASSY., Pivot BS-AB4115GS
...
33
PIN, Handle Release BS-B4135GS
...
36
CAP, Vinyl BS-B2516GS
...
37
HOOK, 5/16" - 18" BS-B2759BGS
...
39
DECAL, Start Instructions BS-188561GS
...
42
BATTERY BS-187079GS
...
43
WIRE, Red, #13 BS-185931EGS
...
44
WIRE, Black, #0 BS-185973BGS
...
46
BRACKET, Hold Down BS-B187081GS
...
48
WIRE, Red, #16 BS-185939EGS
...
49
ASSEMBLY, Diode BS-186748GS
...
50
SWITCH, Starter BS-77282GS
...
55
WIRE, Black, #55 BS-185931FGS
...
57
ASSY., Coaxial Jack BS-186166GS
...
58
COVER, DC Jack BS-186133GS
...
36
CAP, Vinyl BS-B2516GS
...
37
HOOK, 5/16" - 18 BS-B2759BGS

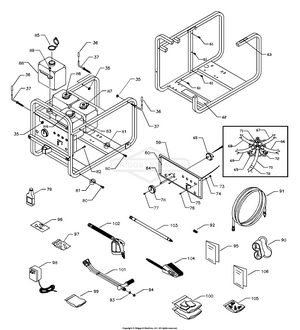

Unit (Part 2)

...
...
36
CAP, Vinyl BS-B2516GS
...
37
HOOK, 5/16" - 18" BS-B2759BGS
...
36
CAP, Vinyl BS-B2516GS
...
37
HOOK, 5/16" - 18 BS-B2759BGS
...
59
PANEL, Control Powder Red BS-A188361AGS
...
60
DECAL, Control Panel BS-188362GS
...
61
CLIP, Release, Plastic BS-188818GS
...
62
DECAL, Warning/Danger BS-187915GS
...
63
DECAL, Caution Hot Muffler BS-77816GS
...
64
SCREW, Plastite #8 x .75" BS-B3377GS
...
65
ASSY., Sub 4-Way Valve BS-B3306GS
...
66
HOSE, Chemical "A" - 3.5" BS-188402AGS
...
67
HOSE, Chemical "B" - 12" BS-188402BGS
...
68
HOSE, Chemical "C" - 16" BS-188402CGS
...
69
HOSE, Chemical "Water" 11" BS-188402DGS
...
70
HOSE, Chemical Pump BS-B3601EGS
...
71
CLAMP, Hose 13/32" BS-48031GGS
...
72
CLAMP, Hose BS-691038
...
75
LINK, Throttle Control BS-B3608EGS
...
77
SCREW, Plastite #10 x .62 BS-B3311GS
...
78
HANDLE, 4-Way Valve BS-B3721GS
...
79
OIL BOTTLE BS-BB3061GS
...
81
CLIP, Spring BS-B2427BGS
...
83
TAG, System Flush Water BS-188414AGS
...
84
CAP, Chem Container "Water" BS-B3222DGS
...
85
CAP, Chem Container "A" BS-B3222AGS
...
86
CAP, Chem Container "B" BS-B3222BGS
...
87
CAP, Chem Container "C" BS-B3222CGS
...
88
ASSY., Chemical Tank 1 Gal. BS-B3599GS
...
90
GOGGLES, Safety BS-87815GS
...
91
Hose BS-205734GS
...
92
ADPTR, BAYONET AL-8 BS-B1051GS
...
93
SCREEN, Gun Inlet BS-B4224GS
...
94
O-RING, Gun Extension BS-97837GS
...
95
MANUAL, Engine BS-188826GS
...
96
KIT, Maintenance, O-Ring BS-191922GS
...
97
KIT, Maintenance BS-B5830GS
...
98
CHARGER, Battery BS-84002790
...
99
KIT, Chemical Tags BS-188420GS
...
100
KIT, 3 Pack Concentrate BS-188421GS
...
101
WAND, Dual BS-B1748GS
...
102
GUN BS-704311
...
103
EXTENSION BS-88934GS
...
104
BRUSH, Utility BS-88185GS
...
105
KIT, Nozzle BS-197291GS
...
106
MANUAL, Owners BS-188344GS
...
...
...
