product name

1539-0 Briggs and Stratton Pressure Washer 3,000 PSI

Model: 1539-0

Save
 Part Not Listed?Part Not Listed?
product name

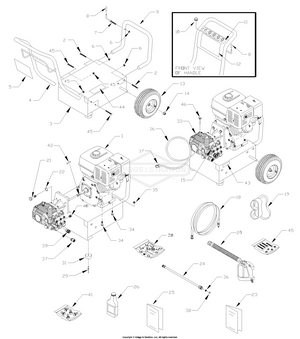

Main Unit

...
...
1
ENGINE BS-~NSP
...
2
BOLT, Carriage BS-B2043GS
...
3
BASE BS-B190548GS
...
4
HANDLE BS-CB3861CGS
...
5
DECAL, Instructions BS-B4160GS
...
6
NUT BS-99583GS
...
7
HOOK, Square Neck BS-B2150GS
...
8
CAP, Vinyl BS-B2516GS
...
9
BUMPER BS-CB4105GS
...
10
GROMMET BS-30809GS
...
11
DECAL, 5 QD Nozzles BS-187974AGS
...
12
DECAL, Unit BS-187735GS
...
13
ASSY, Wheel BS-88521GS
...
14
PUSHNUT BS-190146GS
...
15
CLAMP, Hose BS-48031GGS
...
16
HOSE-CHEMICAL BS-705076
...
17
FILTER-CHEM HOSE BS-709496
...
18
Hose BS-205734GS
...
19
GOGGLES, Safety BS-87815GS
...
20
GUN BS-704311
...
21
SCREW BS-23645GS
...
22
LOCKWASHER, SPLIT 3/8 BS-703454
...
23
MANUAL, Owners BS-187701GS
...
24
ASSY, Wand Ext. with QD BS-B3858GS
...
25
MANUAL, Engine BS-B1464GS
...
26
BOTTLE, Oil BS-100005
...
28
KIT, Maintenance, O-Ring BS-191922GS
...
29
RIVET, Blind BS-188194GS
...
31
VIBE MOUNT, with Washer BS-191413GS
...
33
ASSY, Pump (See "Pump" and "Unloader" illustrations and parts lists) BS-B2126AGS
...
34
BOLT BS-64416GS
...
35
NUT, Lock BS-52859GS
...
36
SCREEN, Gun Inlet BS-B4224GS
...
37
INLET, Garden Hose BS-186839GS
...
38
O-RING, High Pressure Hose BS-97837GS
...
39
FITTING BS-703824
...
40
THERMAL RELIEF BS-195016GS
...
41
KIT, Nozzles QD BS-186301GS
...
42
KEYSTOCK, 1/4X2 BS-703890
...
43
DECAL, Cool Down System BS-187952GS
...
44
DECAL, Quick Reference BS-187918GS
...
45
KIT, Handle Hardware BS-B4196GS
...
46
DIPSTICK, Pump BS-11287628PGS

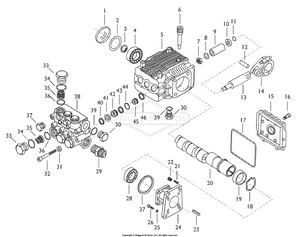

Pump

...
...
1
Cap BS-110B2126GS
...
2
Circlip BS-10887628PGS
...
3
Snap Ring BS-112B2126GS
...
4
Bearing BS-113B2126GS
...
5
Pump Body BS-109B2126GS
...
6
Oil Cap/Dipstick BS-11287628PGS
...
7
Nut BS-11087822PGS
...
8
Piston Washer BS-11187822PGS
...
9
Piston BS-123B2126GS
...
10
Spacer Disc BS-11687628PGS
...
11
KIT-PISTON BS-201B2126GS
...
12
Piston Pin BS-115B2126GS
...
13
Guiding Piston BS-120B2126GS
...
14
Con Rod BS-119B2126GS
...
15
Complete Rear Cover BS-118B2126GS
...
16
Screw BS-117B2126GS
...
17
O-Ring BS-116B2126GS
...
18
Snap Ring BS-12687628PGS
...
19
Bearing BS-12587628PGS
...
20
Hollow Shaft BS-149B2126GS
...
21
Screw BS-155B2327GS
...
22
Grub Screw BS-152B2126GS
...
23
KEYSTOCK, 1/4X2 BS-703890
...
24
Gas Engine Flange BS-150B2126GS
...
25
LOCKWASHER, SPLIT 3/8 BS-703454
...
26
Screw BS-23645GS
...
27
Bushing BS-151B2126GS
...
28
Seal BS-12187822PGS
...
29
THERMAL RELIEF BS-195016GS
...
30
Plug BS-10487628PGS
...
31
Washer BS-137B2126GS
...
32
Screw BS-10087822PGS
...
33
PLUG BS-190641GS
...
34
O-Ring BS-100B2327GS
...
35
Complete Valve BS-10287822PGS
...
36
O-Ring BS-10387822PGS
...
37
Plug BS-11193360PGS
...
38
Head BS-136B2126GS
...
39
O-Ring BS-10387628PGS
...
40
Support Ring BS-106B2126GS
...
41
Gasket BS-10587822PGS
...
42
Piston Guide BS-108B2126GS
...
43
Gasket BS-10393360PGS
...
44
O-Ring BS-10493360PGS
...
45
Rear Piston Guide BS-131B2126GS
...
46
Seal BS-16593360PGS
...
A
KIT,Valve Includes 6 of Item No. 35 & 36 BS-193955GS
...
B
KIT-PISTON Includes 3 of Item No. 8 BS-201B2126GS
...
C
KIT-OIL SEAL Includes 1 of Item No. 1 & 17; 3 of Item No. 46 BS-202B2126GS
...
D
KIT-WATER SEAL Includes 3 of Item No. 41 & 44 BS-203B2126GS
...
E
KIT-SUPPORT RING Includes 3 of Item No. 40 BS-204B2126GS

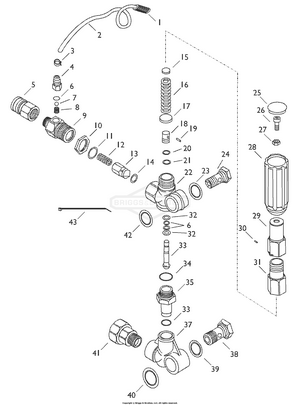

Unloader

...
...
Complete Unloader BS-153B2126GS
...
1
FILTER-CHEM HOSE BS-709496
...
2
HOSE-CHEMICAL BS-705076
...
3
Clamp, Hose band BS-48031GGS
...
4
HOSE TAIL BS-190642GS
...
5
FITTING BS-703824
...
6
KIT, Chemical Injection BS-192914GS
...
7
BALL BS-211B2327GS
...
8
Spring BS-212B2327GS
...
9
Injector Body BS-213B2126GS
...
10
Injector Nut BS-215B2327GS
...
11
O-Ring BS-137B2327GS
...
12
Spring BS-216B2327GS
...
13
Plunger BS-217B2327GS
...
14
O-Ring BS-218B2327GS
...
15
Spacer Plate BS-220B2327GS
...
16
Spring BS-221B2327GS
...
17
Spring, Spacer Plate BS-222B2327GS
...
18
Upper Piston BS-219B2327GS
...
19
Pin BS-223B2327GS
...
20
Ring BS-224B2327GS
...
21
O-Ring BS-225B2327GS
...
22
Valve Housing BS-228B2327GS
...
23
Washer BS-227B2327GS
...
24
Inlet Bolt BS-226B2327GS
...
25
Plug BS-248B2327GS
...
26
Screw BS-155B2327GS
...
27
Nut BS-246B2327GS
...
28
Knob BS-245B2327GS
...
29
Housing BS-243B2327GS
...
30
Pin BS-244B2327GS
...
31
Spring Guide BS-242B2327GS
...
32
Ring BS-229B2327GS
...
33
Lower Piston BS-232B2327GS
...
34
O-Ring BS-234B2327GS
...
35
Piston Guide BS-233B2327GS
...
36
O-Ring BS-235B2327GS
...
37
Bypass Fitting BS-238B2327GS
...
38
Inlet Bolt BS-236B2327GS
...
39
Washer BS-237B2327GS
...
40
Washer BS-239B2327GS
...
41
Conn, Gdn Hse BS-95320GS
...
42
Washer BS-230B2327GS
...
43
Wrap, Tie BS-28739GS
...
Service Kit Includes 3 of Item No. 6; 1 of Item Nos. 8, 15, 20, 21, 23, 34, 36, 39, 40 & 42; 2 of Item No. 32 BS-250B2327GS
...
...
...
