product name

1537-1 Briggs and Stratton Pressure Washer 2,400 PSI

Model: 1537-1

Save
 Part Not Listed?Part Not Listed?
product name

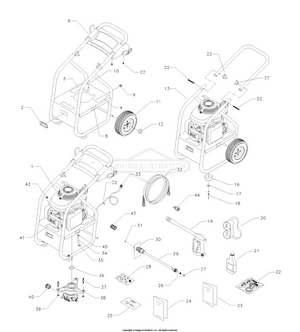

Main Unit

...
...
1
ENGINE BS-~NSP
...
2
HANDLE, Lift BS-187878GS
...
3
DECAL, Warning/Danger BS-187915GS
...
4
DECAL, Start Instructions BS-187916GS
...
6
ASSY, BILLBOARD, 01537-1 BS-187752GS
...
8
DECAL, Cool Down System BS-187952GS
...
9
GROMMET BS-30809GS
...
10
CAP, Vinyl, Black BS-B2516GS
...
11
WHEEL BS-209636GS
...
12
PUSHNUT, 5/8" BS-75402CGS
...
13
BASE, VSPW, PWDR CT, DVRGRY BS-D187615GS
...
14
HANDLE, PW BS-D187602GS
...
16
VIBE MOUNT, with Washer BS-191413GS
...
17
WASHER, Flat BS-71693
...
18
BLIND RIVET BS-188194
...
19
GUN BS-704312
...
20
GOGGLES BS-87815GS
...
21
BOTTLE, Oil BS-100005
...
22
KIT, Handle Hardware BS-187623GS
...
23
MANUAL, Owners BS-187944
...
24
MANUAL, Honda Engine BS-188036
...
25
KIT, Maintenance, O-Ring BS-191922GS
...
26
SCREEN, Gun Inlet BS-B4224GS
...
27
O-RING, Hi Pressure BS-97837GS
...
28
KIT, Maintenance, O-Ring BS-191922GS
...
29
WAND-ADJUSTABLE BS-205015CGS
...
30
TAG, Nozzle Instructions BS-97566GS
...
31
DECAL, Ignition BS-5021761
...
32
HOSE ASSEMBLY BS-84006753
...
33
FILTER-CHEM HOSE BS-709496
...
34
HOSE-CHEMICAL BS-705076
...
35
CLAMP, Hose 13/32" BS-48031GGS
...
36
O-RING, Engine Adapter BS-B2218GS
...
37
STUD, DBL ENG MNT BS-187198GS
...
38
REPLACEMENT PUMP ASSEMBLY BS-209940GS
...
39
NUT, with Washer BS-B1880GS
...
40
TRANSAXLE BS-84010384
...
41
DECAL, Quick Reference BS-187918GS
...
42
NUT, Hex Locking Flange M8 BS-67989GS
...
43
KIT,QC,METRIC BS-312981GS
...
44
KIT,QC,METRIC BS-312981GS
...
45
CLAMP, Hose Band BS-48031BGS

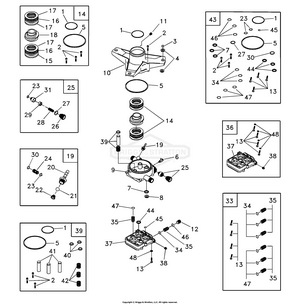

Pump

...
...
1
O-RING, Engine Adapter BS-B2218GS
...
2
CAPSCREW, Socket Head BS-97962GS
...
3
SLEEVE, Grommet Spacer BS-96795GS
...
4
BUSHING, Rubber Mount BS-21429GS
...
5
O-RING, Housing Seal BS-97835GS
...
6
VALVE, Thermal Relief BS-208673GS
...
7
SEAL, Oil Piston BS-93680GS
...
8
SPACER, Pilot BS-97831GS
...
9
HOUSING, Piston BS-B2702GS
...
10
ADPTR, NDL, VS, HONDA BS-B5003GS
...
11
VALVE, 1-5 PSI BS-B5710GS
...
12
CAP, Outlet Port BS-97841GS
...
13
Nylon Roller BS-5040946
...
14
KIT, AXIAL CAM Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-185710GS
...
19
KIT, CHEM INJECT Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-185287GS
...
25
KIT, UNLOADER Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-187879GS
...
33
KIT, CHECK VALVES Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-185712GS
...
36
KIT, HEAD BRASS EG Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-185531GS
...
39
KIT, PISTON & SPRING Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-185713GS
...
43
KIT, O-RING/SEAL 2300 Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-185714GS
...
...
...
