1536-0 Briggs and Stratton Pressure Washer 2,100 PSI

Model: 1536-0

Save
 Part Not Listed?Part Not Listed?
product name

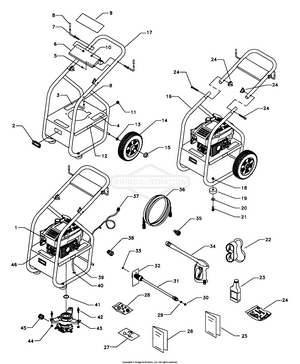

Main Unit

...
...
1
ENGINE BS-~NSP
...
2
HANDLE, Lift BS-187878GS
...
3
DECAL, Warning/Danger BS-187915GS
...
4
DECAL, Start Instructions BS-187916GS
...
5
SCREW, TYPE AB, M4.8 X 13 BS-187799GS
...
6
BILLBOARD, Upper Front BS-C187859
...
7
HOOK, 5/16" - 18" BS-B2759BGS
...
8
CAP, Vinyl, Black BS-B2516GS
...
9
DECAL, UNIT, PW, 01536 BS-187888GS
...
10
NUT, Lock BS-99583GS
...
11
GROMMET BS-30809GS
...
12
DECAL, Cool Down System BS-187952GS
...
13
WASHER, Flat BS-49808GS
...
14
TIRE BS-B2142GS
...
15
PUSHNUT BS-194062GS
...
16
BASE, VSPW BS-D187619GS
...
17
HNDL, PWDR CT, DVRGRY BS-D187894GS
...
18
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
19
VIBE MOUNT, with Washer BS-191413GS
...
20
Washer, .34 x 1 x 10 BS-50190GS
...
21
HHCS, M8-1.25 X 55 BS-39288GS
...
22
GOGGLES BS-87815GS
...
23
BOTTLE, Oil BS-100005
...
24
KIT, FSTNNG, HNDL BS-187891GS
...
25
MANUAL, Owners BS-187698
...
26
MANUAL, Operator's BS-380567TRI
...
27
KIT, Nozzle Cleaning BS-B2163
...
28
KIT, Maintenance, O-Ring BS-191922GS
...
29
SCREEN, Gun Inlet BS-B4224GS
...
30
O-RING, Hi Pressure BS-97837GS
...
31
WAND-ADJUSTABLE BS-205015CGS
...
32
TAG, Nozzle Instructions BS-97566GS
...
33
DECAL, Ignition BS-5021761
...
34
GUN BS-704312
...
35
KIT,QC,METRIC BS-312981GS
...
36
HOSE ASSEMBLY BS-84006753
...
37
FILTER-CHEM HOSE BS-709496
...
38
KIT,QC,METRIC BS-312981GS
...
39
HOSE-CHEMICAL BS-705076
...
40
CLAMP, Hose 13/32" BS-48031GGS
...
41
SEAL, Engine Donut BS-98300GS
...
42
STUD, Double Ended BS-B1735GS
...
43
REPLACEMENT PUMP ASSEMBLY BS-209940GS
...
44
NUT, with Washer BS-B1880GS
...
45
TRANSAXLE BS-84010384
...
46
DECAL, Quick Reference BS-187918GS

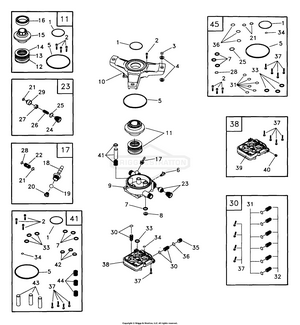

Pump

...
...
1
SEAL, Engine Donut BS-98300GS
...
2
CAPSCREW, Socket Head BS-97962GS
...
3
SLEEVE, Grommet Spacer BS-96795GS
...
4
BUSHING, Rubber Mount BS-21429GS
...
5
O-RING, Housing Seal BS-97835GS
...
6
VALVE, Thermal Relief BS-208673GS
...
7
SEAL, Oil Piston BS-93680GS
...
8
SPACER, Pilot BS-97831GS
...
9
HOUSING, Piston BS-B2702GS
...
10
ADAPTER, Engine BS-98227GS
...
11
KIT, AXIAL CAM SERV Item numbers 11, 17, 23, 30, 38, 41, and 45 are service kits and include all parts shown within the box. Certain parts may only be available as components of a kit. BS-B2310GS
...
17
KIT, CHEM INJECT Item numbers 11, 17, 23, 30, 38, 41, and 45 are service kits and include all parts shown within the box. Certain parts may only be available as components of a kit. BS-185287GS
...
23
KIT, UNLOADER Item numbers 11, 17, 23, 30, 38, 41, and 45 are service kits and include all parts shown within the box. Certain parts may only be available as components of a kit. BS-187879GS
...
30
KIT, CHECK VALVES Item numbers 11, 17, 23, 30, 38, 41, and 45 are service kits and include all parts shown within the box. Certain parts may only be available as components of a kit. BS-B3513GS
...
33
SEAL, Oil Piston BS-B3286GS
...
34
O-RING, Hi Pressure BS-97837GS
...
35
CAP, Outlet Port BS-97841GS
...
36
O-RING, Cap BS-97840GS
...
37
Nylon Roller BS-5040946
...
38
KIT, HEAD CASTING SFG Item numbers 11, 17, 23, 30, 38, 41, and 45 are service kits and include all parts shown within the box. Certain parts may only be available as components of a kit. BS-B4186GS
...
41
KIT, PISTON & SPRING Item numbers 11, 17, 23, 30, 38, 41, and 45 are service kits and include all parts shown within the box. Certain parts may only be available as components of a kit. BS-B2312GS
...
45
KIT, O-RING/SEAL SERV Item numbers 11, 17, 23, 30, 38, 41, and 45 are service kits and include all parts shown within the box. Certain parts may only be available as components of a kit. BS-B1933
...
...
...
