1506-1 Briggs and Stratton Portable Generator G-Force 2600

Model: 1506-1

Save
 Part Not Listed?Part Not Listed?
product name

Alternator Outlet Panel

...
...
1
FLANGEALTERNATOR BS-102059GS
...
2
WASHER SPRING M8 & 5/16" BS-~NSP
...
3
SCREW SET 5/16"UNF X 3/4" BS-~NSP
...
4
FAN ROTOR SINCRO R80 BS-102046GS
...
5
ROTOR SINCRO R80 BS-102056GS
...
6
KIT-CAPACITOR DIODE & VAR BS-B4916GS
...
7
ROTOR BOLT 195MM BS-102057GS
...
8
WASHER FLAT M8 & 5/16" BS-~NSP
...
9
NUT NYLOCK M8-1.25 TYPE T BS-~NSP
...
10
BEARING ROTOR BS-102063GS
...
11
STATOR SINCRO R80 BS-102058GS
...
12
NUT FLANGE M8-1.25 BS-~NSP
...
13
COWLINGALTERNATOR R80 BS-102060GS
...
14
WASHER FLAT M5 BS-~NSP
...
15
BOLT STATOR M5*204MM BS-102088GS
...
16
END COVER ALTERNATOR R80 BS-102061GS
...
17
SCREW SELF TAP3.9 * 9.5MM BS-~NSP
...
18
SCREW SELF TAPPPHD #8*5/8" BZP BS-~NSP
...
19
CAPACITOR CLIP R80 BS-102082GS
...
20
CAPACITOR 16UF BS-102053GS
...
21
SOCKET OUTLET SCHUKO BS-102030GS
...
22
SCREW PLASTITE PPHD NO6 * 3/8" BS-~NSP
...
23
CIRCUIT BREAKER 10A BS-102132GS
...
24
OUTLET BOX BLANK SINCRO R80 CONTINENTAL BS-103140GS
...
25
OUTLET BOX COMPLETE R80 BS-102095GS
...
26
ALTERNATOR SINCRO R80 CONTI BS-102055GS

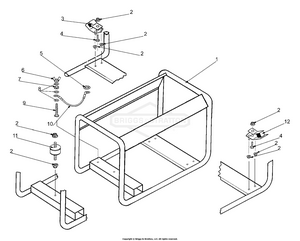

Frame & Fittings

...
...
1
CRADLE YELLOW BS-102616GS
...
2
NUT FLANGE M8-1.25 BS-~NSP
...
3
VIBRATION MOUNT 45 DEGREE SOFT BS-102033GS
...
4
SCREW SET M8-1.25*35MM BS-~NSP
...
5
WASHER SHAKEPROOF M8 INT BS-~NSP
...
6
NUT WING M6-1.0 BS-102036GS
...
7
NUT FULL M6-1.0 BS-~NSP
...
8
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP
...
9
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
10
LEAD EARTH ASSY 145MM BS-102050GS
...
11
VIBRATION MOUNT 32MM DIAMETER BS-102034GS
...
12
VIBRATION MOUNT 45 DEGREE HARD BS-102031GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
DECAL G-FORCE 2600 (Not Illustrated) BS-102617GS
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
MANUAL OWNERS GENERIC G-FORCE (Not Illustrated) BS-102590GS

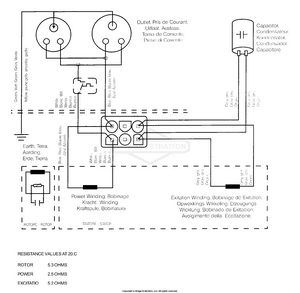

Panel Wiring Diagram

...
