1467-2 Briggs and Stratton Pressure Washer 1,700 PSI

Model: 1467-2

Save
 Part Not Listed?Part Not Listed?
product name

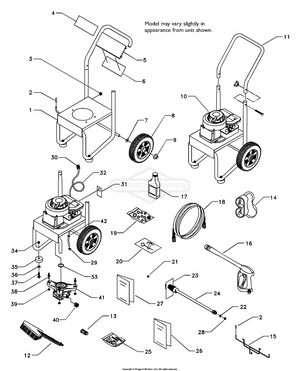

Main Unit

...
...
1
BASE, VSPW, PWDR CT, RED BS-AB1939GS
...
2
CAP, Vinyl Black BS-B1460GS
...
3
GROMMET BS-30809GS
...
4
DECAL, Logo 1700 PSI BS-188975
...
5
BILLBOARD, Plastic BS-B1631BGS
...
6
DECAL, Instructions BS-B1932GS
...
7
WASHER, Flat BS-49808GS
...
8
TIRE BS-B2142GS
...
9
PUSHNUT BS-194062GS
...
10
ENGINE BS-~NSP
...
11
HANDLE BS-AB1945GS
...
12
BRUSH, Utility BS-88185GS
...
13
ADPTR, BAYONET AL-8 BS-B1051GS
...
14
GOGGLES BS-87815GS
...
15
WIREFORM BS-B1953AGS
...
16
GUN BS-704312
...
17
BOTTLE, Oil BS-100005
...
18
HOSE ASSEMBLY BS-84006753
...
19
KIT, Maintenance, O-Ring BS-191922GS
...
20
KIT, Maintenance, O-Ring BS-191922GS
...
21
DECAL, Ignition BS-5021761
...
22
SCREEN, Gun Inlet BS-B4224GS
...
23
TAG, Nozzle Instructions BS-97566GS
...
24
WAND-ADJUSTABLE BS-205015CGS
...
25
KIT, Hardware, Handle BS-B2203GS
...
26
UPPER DOOR MEMBER BS-5800104
...
27
MANUAL, Pressure Washer BS-188936
...
28
O-RING, Hi Pressure BS-97837GS
...
29
CLAMP, Hose 13/32" BS-48031GGS
...
30
FILTER-CHEM HOSE BS-709496
...
31
TAG BS-B1210AGS
...
32
HOSE-CHEMICAL BS-705076
...
33
SEAL, Engine Donut BS-98300GS
...
34
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
35
VIBE MOUNT, with Washer BS-191413GS
...
36
Washer, .34 x 1 x 10 BS-50190GS
...
37
HHCS, M8-1.25 X 45 GR10.9 BS-B1214GS
...
38
STUD, Double Ended BS-B1735GS
...
39
NUT, with Washer BS-B1880GS
...
40
TRANSAXLE BS-84010384
...
41
REPLACEMENT PUMP ASSEMBLY BS-209940GS
...
42
CLAMP, Hose Band BS-48031BGS

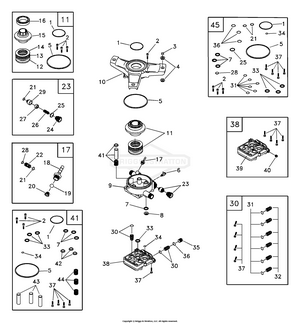

Pump

...
...
1
SEAL, Engine Donut BS-98300GS
...
2
CAPSCREW, Socket Head BS-97962GS
...
3
SLEEVE, Grommet Spacer BS-96795GS
...
4
BUSHING, Rubber Mount BS-21429GS
...
5
O-RING, Housing Seal BS-97835GS
...
6
VALVE, Thermal Relief BS-208673GS
...
7
SEAL, Oil Piston BS-93680GS
...
8
SPACER, Pilot BS-97831GS
...
9
HOUSING, Piston BS-B2702GS
...
10
ADAPTER, Engine BS-98227GS
...
11
KIT, AXIAL CAM SERV BS-B2310GS
...
17
KIT, CHEM INJECT BS-185287GS
...
23
KIT, UNLOADER BS-187879GS
...
30
KIT, CHECK VALVES BS-B3513GS
...
33
SEAL, Double-Lip BS-B5433GS
...
34
O-RING, Hi Pressure BS-97837GS
...
35
CAP, Outlet Port BS-97841GS
...
36
O-RING, Cap BS-97840GS
...
37
Nylon Roller BS-5040946
...
38
KIT, HEAD CASTING SFG BS-B4186GS
...
41
KIT, PISTON & SPRING BS-B2312GS
...
45
KIT, O-RING/SEAL SERV BS-B1933
...
...
...
