1460-0 Briggs and Stratton Pressure Washer 2,300 PSI

Model: 1460-0

Save
 Part Not Listed?Part Not Listed?
product name

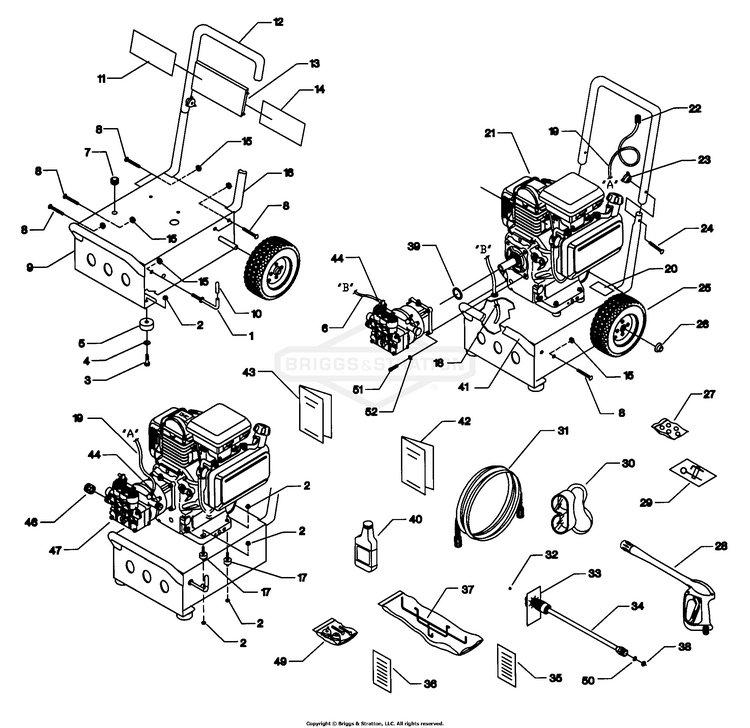

Main Unit

...
...
1
HOOK, Gun BS-B2150GS
...
2
NUT, Hex Locking Flange M8 BS-67989GS
...
3
SCREW BS-42909GS
...
4
Washer, .34 x 1 x 10 BS-50190GS
...
5
VIBE MOUNT, with Washer BS-191413GS
...
6
HOSE, Thermal Drain BS-B3107GS
...
7
GROMMET BS-30809GS
...
8
BOLT, Carriage BS-B2043GS
...
9
BASE BS-AB5721GS
...
10
CAP, Vinyl, Black BS-B2516GS
...
11
DECAL, 2300 PSI @ 2.2 GPM BS-186153GS
...
12
HANDLE BS-B1983GS
...
13
BILLBOARD, Plastic BS-B1631AGS
...
14
DECAL, INSTRCTN, START BS-B2796GS
...
15
NUT, Lock BS-99583GS
...
16
SUPPORT, Handle BS-CB1981GS
...
17
MOUNT, Rubber Shock BS-21217GS
...
18
CLAMP, Hose Band BS-48031BGS
...
19
HOSE-CHEMICAL BS-705076
...
20
DECAL, COOL DOWN SYSTEM BS-B4437GS
...
21
ENGINE BS-~NSP
...
22
FILTER-CHEM HOSE BS-709496
...
23
KNOB, Handle BS-97178GS
...
24
BOLT, Carriage BS-31669GS
...
25
WHEEL BS-209636GS
...
26
PUSHNUT, 5/8" BS-75402CGS
...
27
KIT, Maintenance, O-Ring BS-191922GS
...
28
GUN BS-704312
...
29
KIT, Nozzle Cleaning BS-B2163
...
30
GOGGLES BS-87815GS
...
31
HOSE ASSEMBLY BS-84006753
...
32
DECAL, Ignition BS-5021761
...
33
TAG, Nozzle Instructions BS-97566GS
...
34
WAND-ADJUSTABLE BS-205015CGS
...
35
CARD, WARRANTY, EMISSION SYS BS-B4322GS
...
36
CARD, WARRANTY, HONDA ENG BS-B4321GS
...
37
HANGER, Hose, Gun, Jug BS-B2168AGS
...
38
O-RING, Hi Pressure BS-97837GS
...
39
O-RING, Engine Adapter BS-B2218GS
...
40
BOTTLE, Oil BS-100005
...
41
BUMPER BS-B1982GS
...
42
MANUAL, Honda BS-B3294GS
...
43
MANUAL, Owner's BS-186145
...
44
CLAMP, Hose 13/32" BS-48031GGS
...
46
TRANSAXLE BS-84010384
...
47
PUMP BS-317054GS
...
49
KIT, Hardware, Handle BS-B2203GS
...
50
SCREEN, Gun Inlet BS-B4224GS
...
51
CAPSCREW, Socket Head BS-23707GS
...
52
WASHER, Lock BS-92479GS

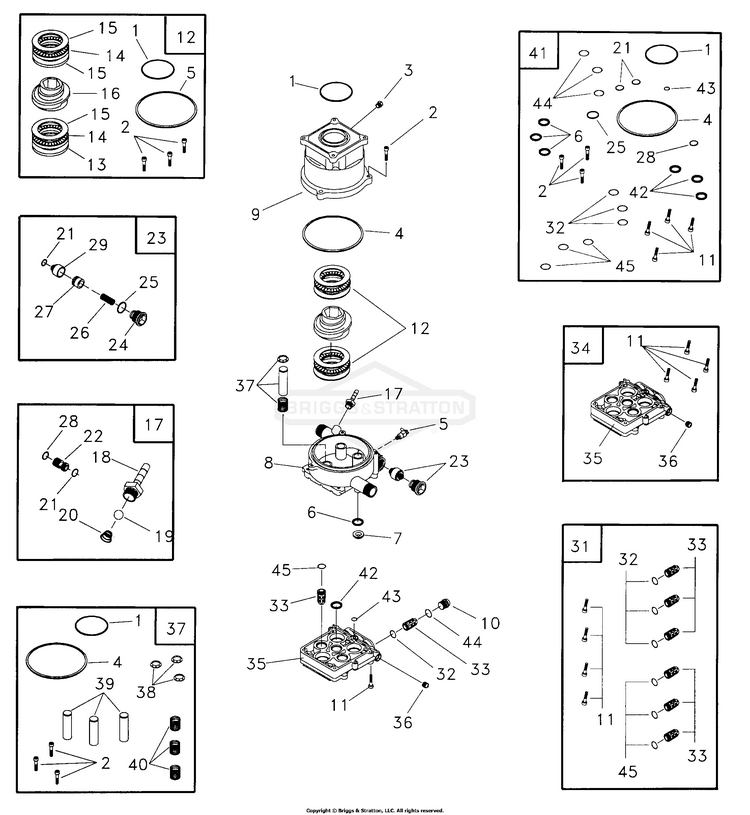

Pump

...
...
1
O-RING, Engine Adapter BS-B2218GS
...
2
CAPSCREW, Socket Head BS-97962GS
...
3
VALVE, 1-5 PSI BS-B5710GS
...
4
O-RING, Housing Seal BS-97835GS
...
5
VALVE, Thermal Relief BS-208673GS
...
6
SEAL, Oil Piston BS-93680GS
...
7
SPACER, Pilot BS-97831GS
...
8
HOUSING, Piston BS-B2702GS
...
9
ADAPTER, Engine BS-B4813GS
...
10
CAP, Outlet Port BS-97841GS
...
11
Nylon Roller BS-5040946
...
12
KIT, CAM, AXIAL, SRV BS-185715GS
...
17
KIT, CHEM INJECT BS-185287GS
...
23
KIT, UNLOADER 2300 BS-185711
...
31
KIT, CHECK VALVES BS-185712GS
...
34
KIT, HEAD BRASS EG BS-185531GS
...
37
KIT, PISTON & SPRING BS-185713GS
...
41
KIT, O-RING/SEAL 2300 BS-185714GS
...
...
...
